Cisco VG204 User Manual

6
Figure 1 Cisco VG202 Chassis Front Panel

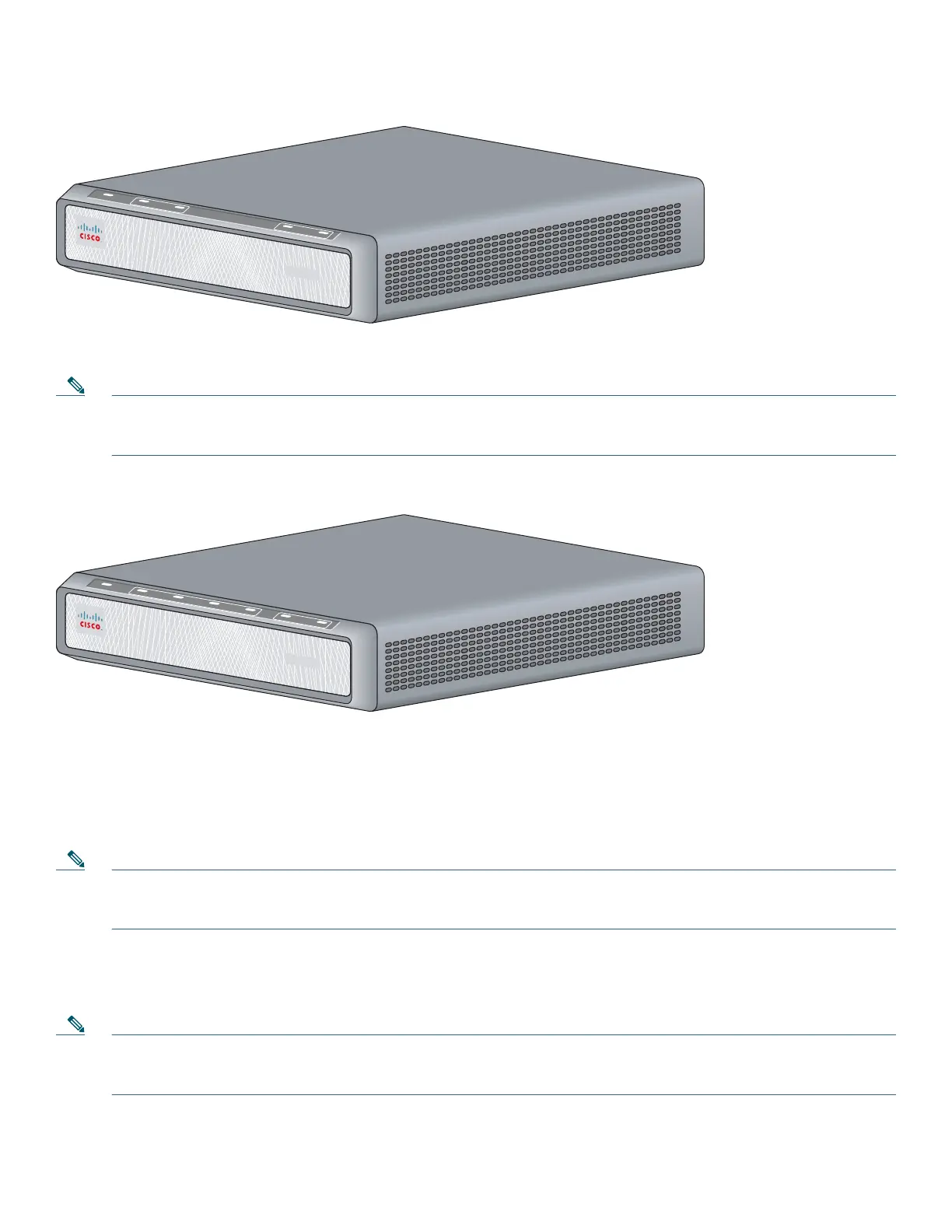

Figure 2 shows the front panel of the Cisco VG204 voice gateway chassis.
Note The Cisco VG204 and the Cisco VG204XM chassis are identical. The only difference is the model number on the front
right. On the Cisco VG204 chassis, the faceplate label says VG204. On the Cisco VG204XM chassis, the faceplate label
says VG204XM.
Figure 2 Cisco VG204 Chassis Front Panel
Back Panel Description
The Cisco VG202 voice gateway supports two RJ-11 ports and supports two FXS voice ports with two 10/100 Fast Ethernet ports.
Figure 3 shows the interfaces and ports on the Cisco VG202 voice gateway. All interface ports are on the back of the chassis.
Note The Cisco VG202 and the Cisco VG202XM chassis are identical. The only difference is the model number on the top
center. On the Cisco VG202 chassis, the faceplate label says VG202. On the Cisco VG202XM chassis, the faceplate
label says VG202XM.
The Cisco VG204/Cisco VG204XM voice gateway supports four RJ-11ports and supports four FXS voice ports with two 10/100
Fast Ethernet ports.
Figure 4 shows the interfaces and ports on the Cisco VG204/Cisco VG204XM voice gateway. All interface
ports are on the back of the chassis.
Note The Cisco VG204 and the Cisco VG204XM chassis are identical. The only difference is the model number on the top
center. On the Cisco VG204 chassis, the faceplate label says VG204. On the Cisco VG204XM chassis, the faceplate
label says VG204XM.
231877
VG202
OK
F
XS
0
/
0
0
/
1
F
E
0
/
0
0
/
1
231875
V
G2
04
O
K
F
XS
0
/
0
0
/
1
0
/
2
F
E
0/
00/
1
0
/
3

Cisco VG204 Specifications

General

Number of FXS Ports	4
Voice Codecs	G.711, G.729, G.729a, G.729ab
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	10% to 90% non-condensing
Network Interface	1 x 10/100 Ethernet
Protocol Support	SCCP, SIP
Power Supply	AC 100-240V, 50-60Hz
Weight	2.2 lbs (1 kg)
Storage Temperature	-20 to 70°C
