Cisco VG204 User Manual

8

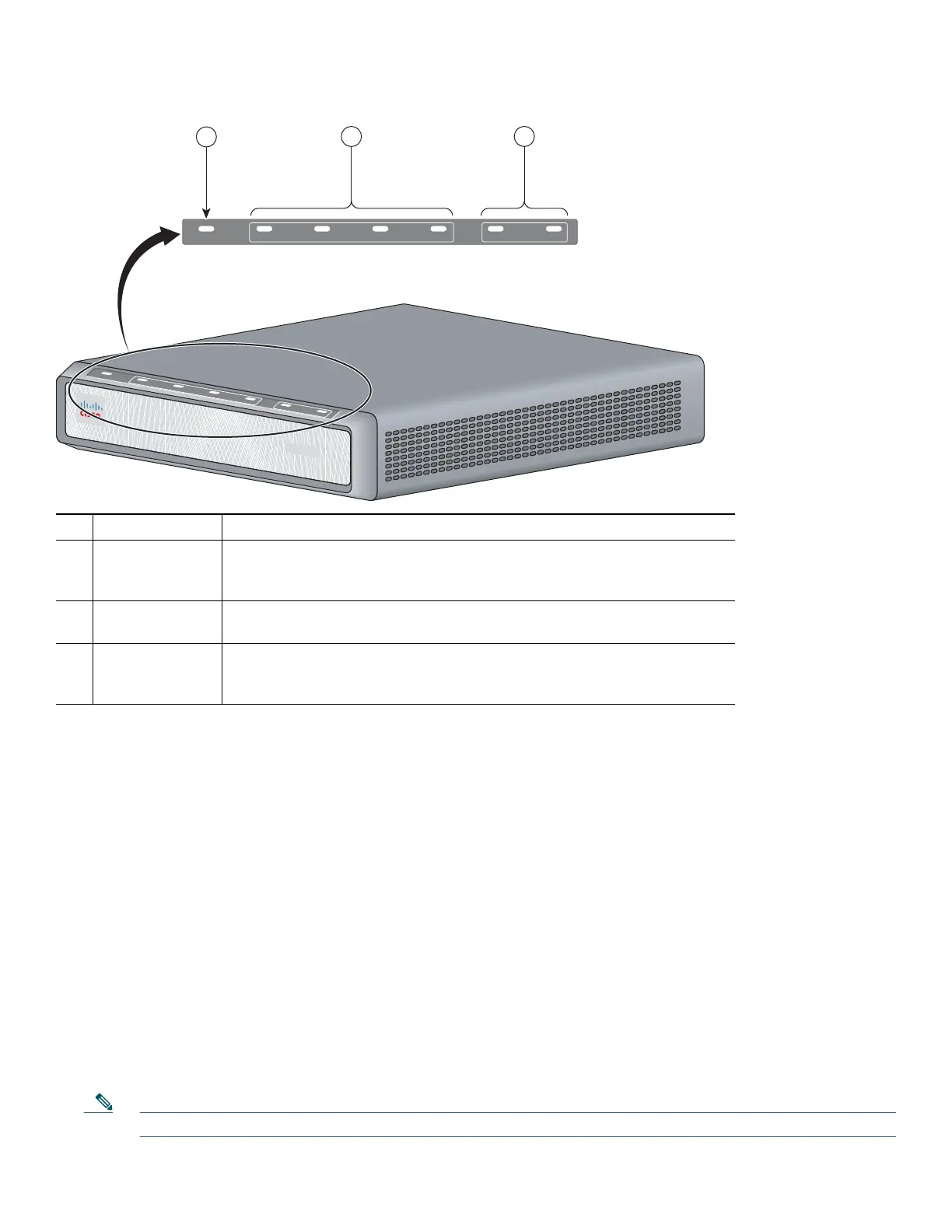

Figure 5 Cisco VG204 Chassis LEDs
Product Serial Number Location
The serial number labels for the Cisco VG202, Cisco VG202XM, Cisco VG204, and Cisco VG204XM voice gateways are
located on the bottom of the chassis, near the compliance label. The serial number label is 0.25 x 1 inch (0.635 x 2.54 cm). It
has the letters “SN:” followed by eleven characters.
5 Equipment, Tools, and Accessories
• Items Included with the Cisco VG202, Cisco VG202XM, Cisco VG204, and Cisco VG204XM Voice Gateways
• Items Not Included with the Cisco VG202, Cisco VG202XM, Cisco VG204, and Cisco VG204XM Voice Gateways
Items Included with the Cisco VG202, Cisco VG202XM, Cisco VG204, and
Cisco VG204XM Voice Gateways
The following items are included with the Cisco VG202, Cisco VG202XM, Cisco VG204, and Cisco VG204XM voice gateways:
• Power cord
Note Power cords vary, depending upon local requirements.
No. LED/Color Description
1
PWR OK—green Off—no power
Steady on—normal operation
Slow blink—bootup phase or in ROMMON monitor mode
2
FXS ports 0
through 3—green
Off—On hook
Steady On—Off hook
3
FE ports 0 to
1—green
Off—No link
Steady on—link
Blinking—TXD/RXD data
V
G204
O
K
F
X
S
0
/
0
0
/
1
0
/
2
F
E
0
/
0
0/1
0
/
3
272226
OK 0/0 0/00/1 0/10/2 0/3
FXS FE
2
3
1

Cisco VG204 Specifications

General

Number of FXS Ports	4
Voice Codecs	G.711, G.729, G.729a, G.729ab
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	10% to 90% non-condensing
Network Interface	1 x 10/100 Ethernet
Protocol Support	SCCP, SIP
Power Supply	AC 100-240V, 50-60Hz
Weight	2.2 lbs (1 kg)
Storage Temperature	-20 to 70°C
