2-6
Catalyst 2940 Switch Hardware Installation Guide
OL-6157-01
Chapter 2 Installation
Installing the Switch

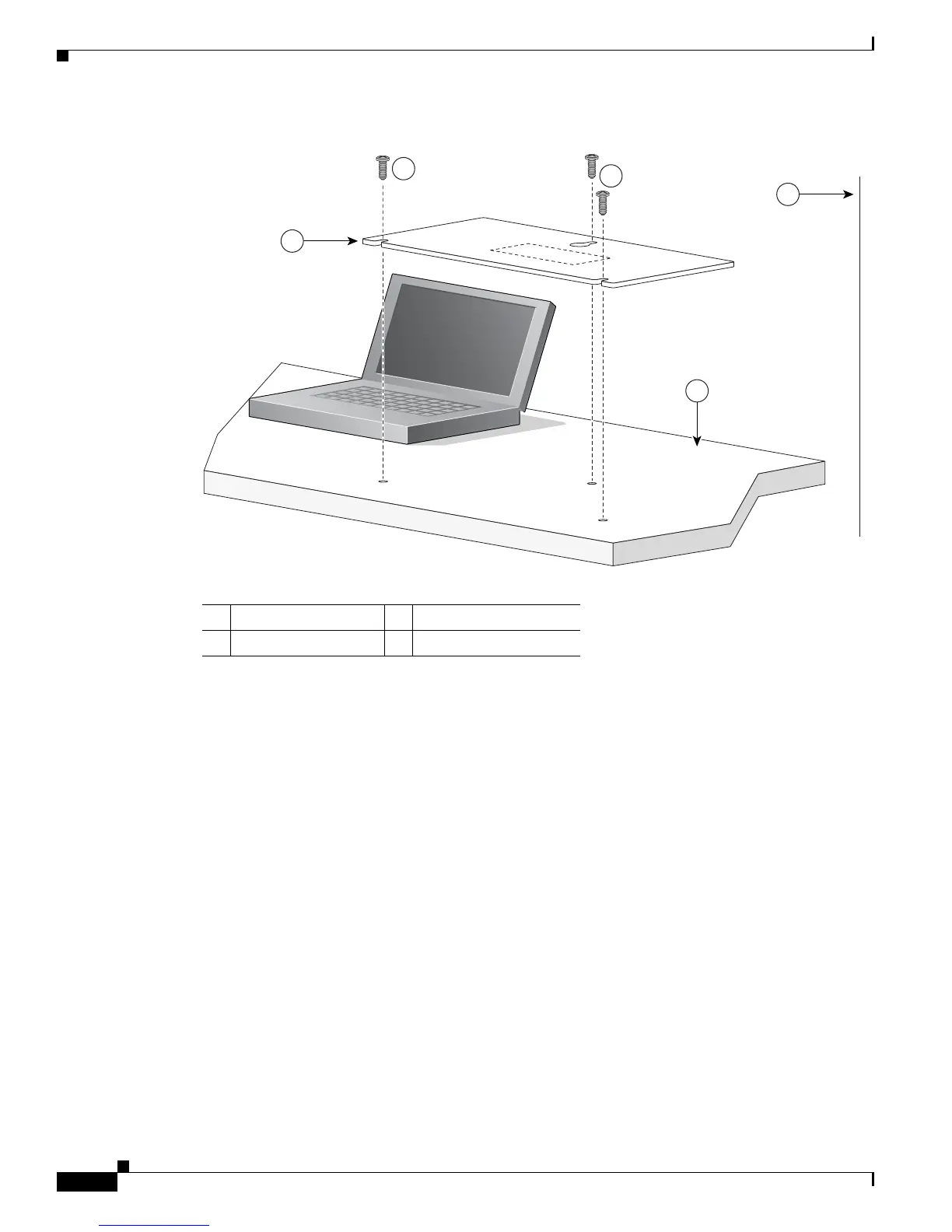

Figure 2-1 Installing the Mounting Screws on Top of a Desk
Step 3 Peel the adhesive strip off the bottom of the screw template, and attach it to the top of the desk.
Step 4 Use a 0.144-inch (3.7 mm) or a #27 drill bit to drill a 1/2-inch (12.7 mm) hole in the two screw
template slots.
Step 5 Insert three screws in the slots on the screw template, and tighten until they touch the top of the screw
template.
Step 6 Remove the screw template from the desk top.
1 Screw template 3 Wall
2 Screws 4 Desk
89859
4
1
3
2
2
