Chapter 3 Installing and Configuring Route Switch Processors and Supervisor Engines
Upgrading DIMMs on RSP720

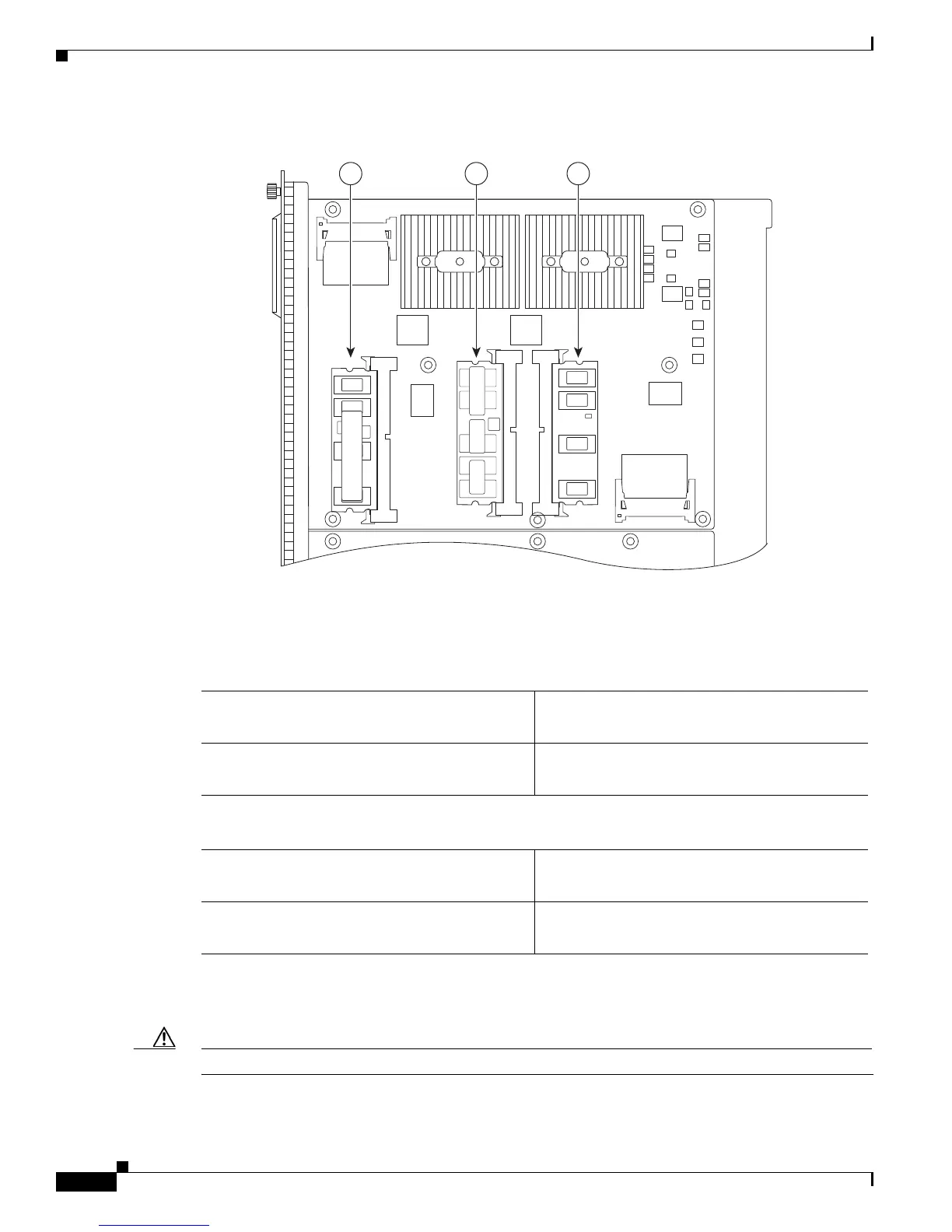

Figure 3-6 SP and RP DRAM DIMM Location on RSP
The following upgrades are possible on these cards:
RSP720-GE
RSP720-10GE
You have to remove the RSP from the chassis for DIMM upgrade. Save all your configurations before
you remove the RSP.
Caution Always use an ESD wrist strap when handling the RSP or coming in contact with internal components.
279156
123
RSP720-GE-3 2 GB on SP
2 GB or 4G on RP
RSP720-GE-3CXL 2 GB on SP
4 GB on RP
RSP720-10GE-3C 2 GB on SP
2 GB or 4GB on RP
RSP720-10GE-3CXL 2 GB on SP
4 GB on RP
