Chapter 3 Names and Functions of Printer Parts
− 10 −

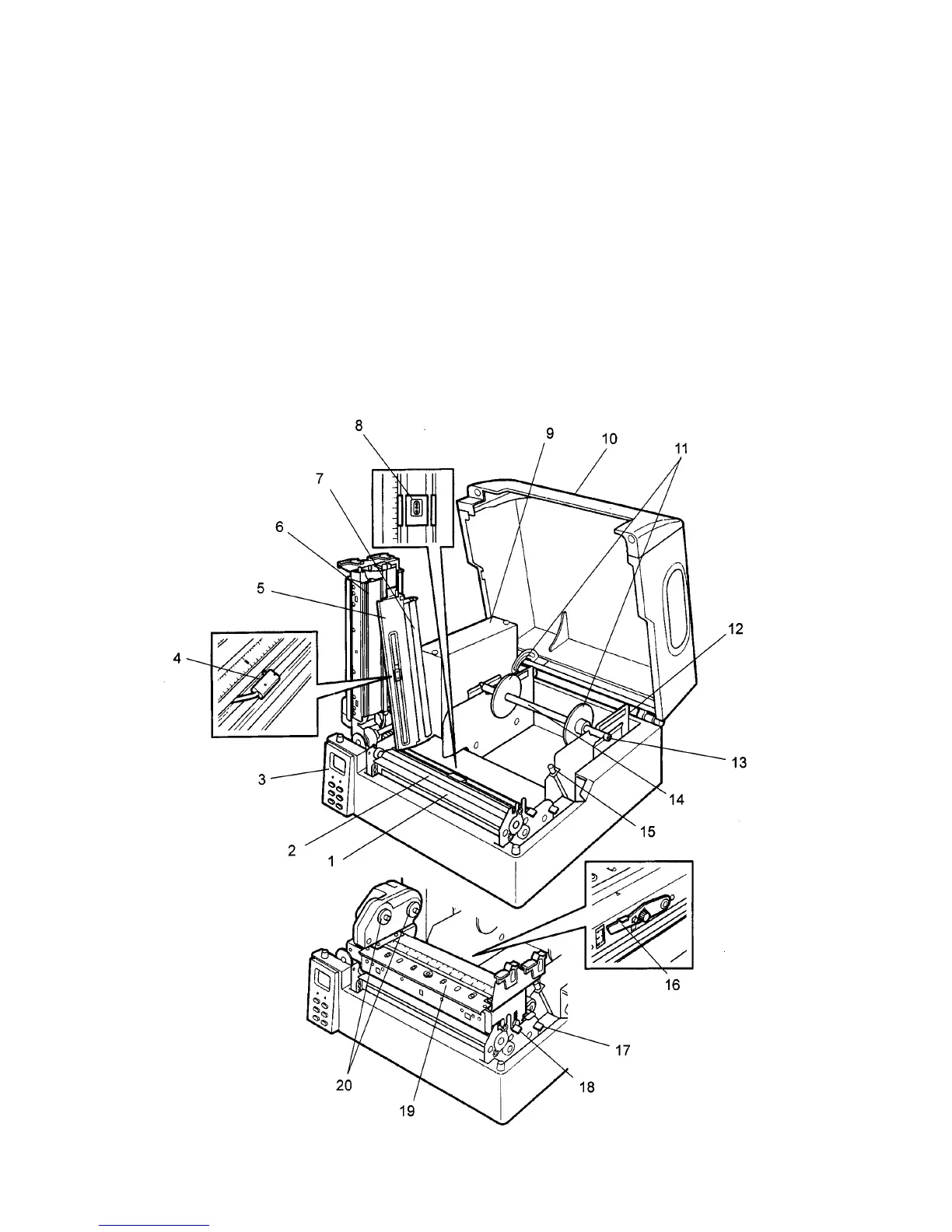

2. Inside the Printer
1 Tear bar 11 Media holder disk
2 Platen 12 Media guide (on both sides)
3 Control panel 13 Media holder supporting plate
4 Transparent sensor (upper media sensor) 14 Media holder shaft
5 Transparent sensor guide 15 Media guide lock screw
6 Printhead 16 Printhead adjustment lever
7 Media guide roller 17 Transparent sensor guide release lever
8 Reflective sensor (lower media sensor) 18 Printhead release lever
9 Interface box 19 Ribbon guide plate
10 Top cover 20 Ribbon mandrel holder
