Chapter 4 Media (Paper) and Ribbon
− 29 −

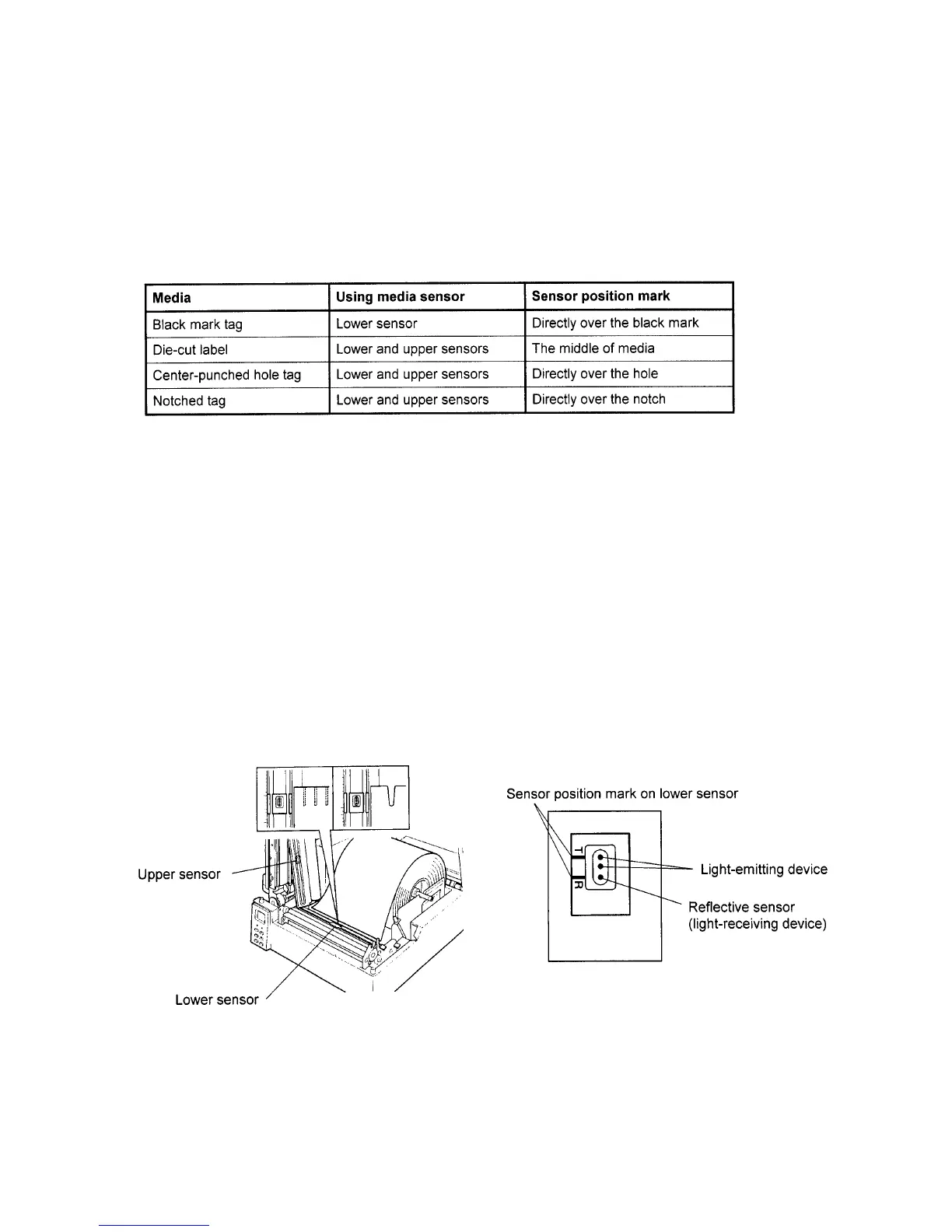

4.6 Media sensor adjustments
The printer is equipped with the upper and lower media sensors that are moved separately.
Both media sensors detect the presence of media and top of form of media except continuous roll
media. The media should be positioned for the media sensors as described in the following table.
Positioning the sensor
To adjust the media sensor position, perform the following operation:
1. Open the top cover all the way until it stops at hinges, unlock the printhead assembly by pushing
the printhead release lever and open it towards the left side of the printer all the way until it stops
and stands upright and at the same time unlock the transparent sensor guide by pushing the
release lever and open it towards the left side of the printer all the way until it stops.
2. When the media is a black mark tag, align the black mark with the lower sensor position mark
'R.' Then lower the transparent sensor guide fully to the end and push it to lock and route the
media over the platen out to the front of the printer.
