Chapter 4 Media (Paper) and Ribbon
− 28 −

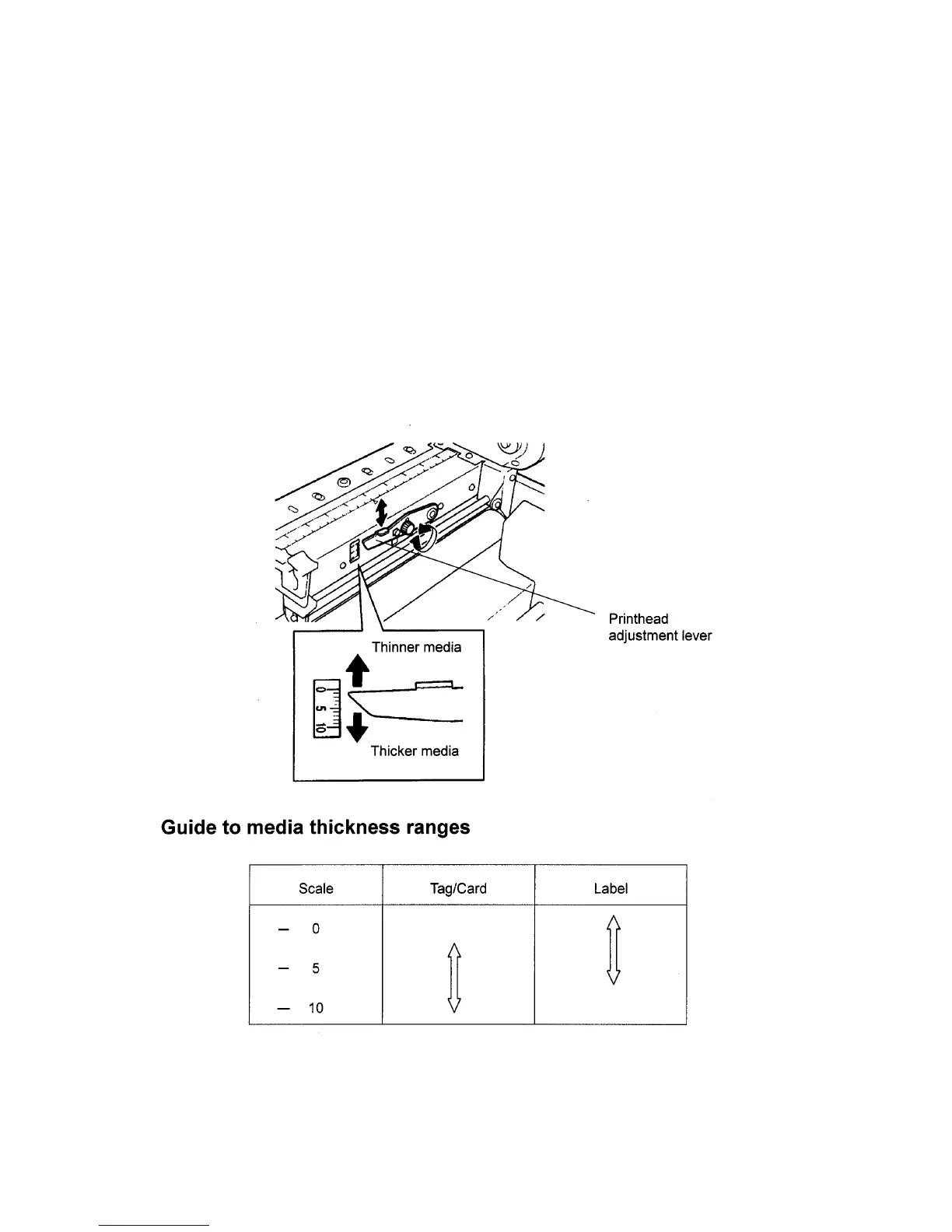

4.5 Printhead adjustments
Printhead adjustments should be made according to the type of media (paper), using the printhead
adjustment lever located on the back of the printhead assembly.
Generally, for media with moderate stiffness (labels), position the printhead adjustment lever to the
middle of the range to put the printhead in middle position, and for media with greater stiffness (tags
or card), lower the adjustment lever to the lower level to put the printhead in forward position. For
media with little stiffness, raise the adjustment lever to the upper level to put the printhead in a
rearward position.
