CT-S651 Series Service Manual
- 8 -
<Precaution at reassembly>
“SA, THERMAL HEAD-02” is electrostatically sensitive.
Avoid contacting the heating section.
When reassembling, insert the U-slot into “SHAFT, HEAD
ADJUST-2”, and let the bosses fit into “SPRING,
HEAD-02”. Press the both sides at “HOLDER, HEAT
SINK-02” and engage the lugs at “COVER, FRAME” on
“HOLDER, HEAT SINK-02”.

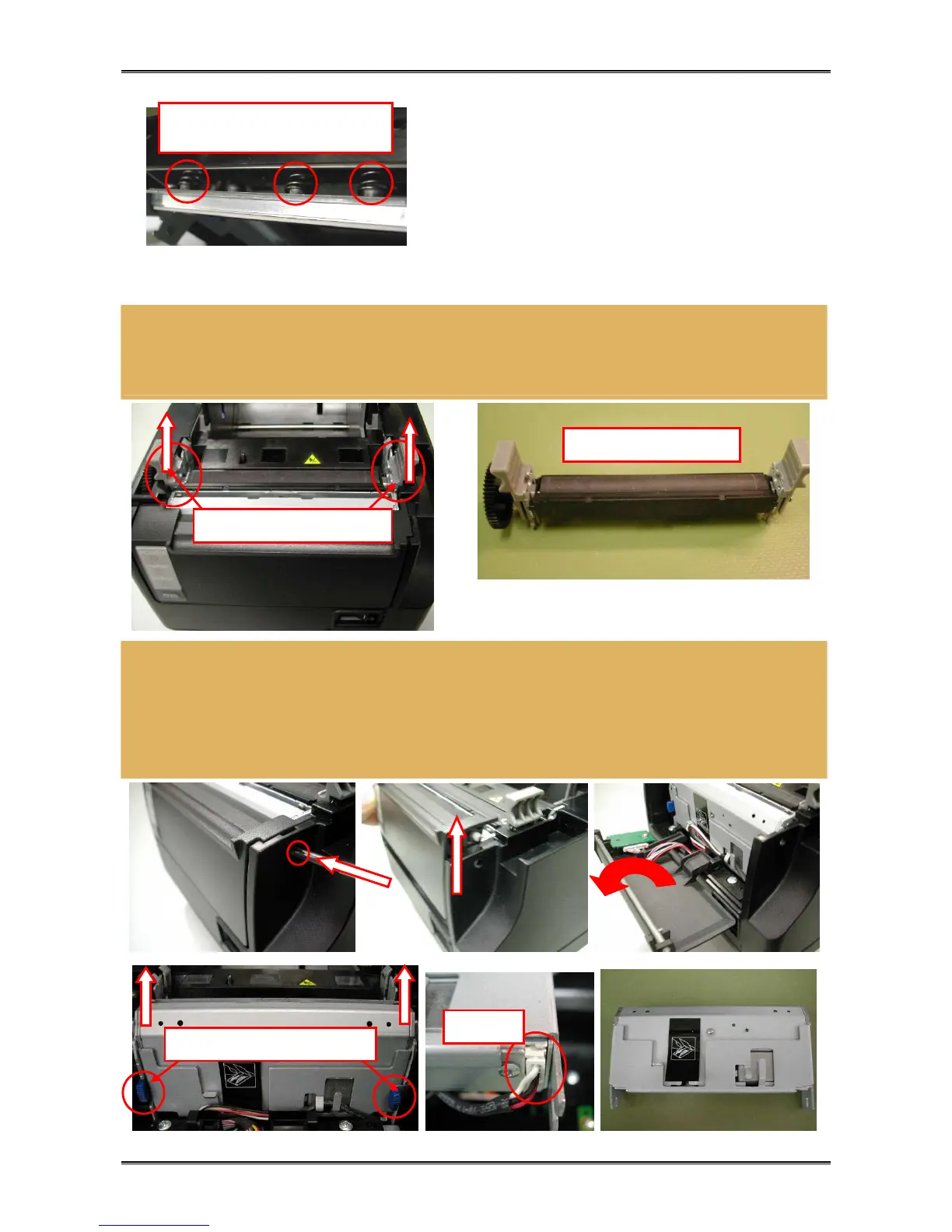

5. Disassembling “SA, PLATEN UNIT-02”
Raise “HANDLE, PLATEN-02” on both sides, and pull “SA, PLATEN UNIT-02” out from “SA, MAIN
FRAME”.
6. Disassembling “SA, CUTTER UNIT-02”
Push “PIN, FRONT COVER” at the right side of “SA, CASE-02” using a sharp-pointed tool. Raise
“FRONT COVER-02” and flip it down toward you to open it. When “LEVER, CUTTER RELEASE-02” at
the right and left sides are pushed down, “SA, CUTTER UNIT” pops out. Pull it out upwardly and
disconnect cables from the connector.
Align the bosses with
“SPRING, HEAD-02”.
SA, PLATEN UNIT-02
LEVER, CUTTER RELEASE-02
Connector
HANDLE, PLATEN-02
