CT-S651 Series Service Manual
- 17 -

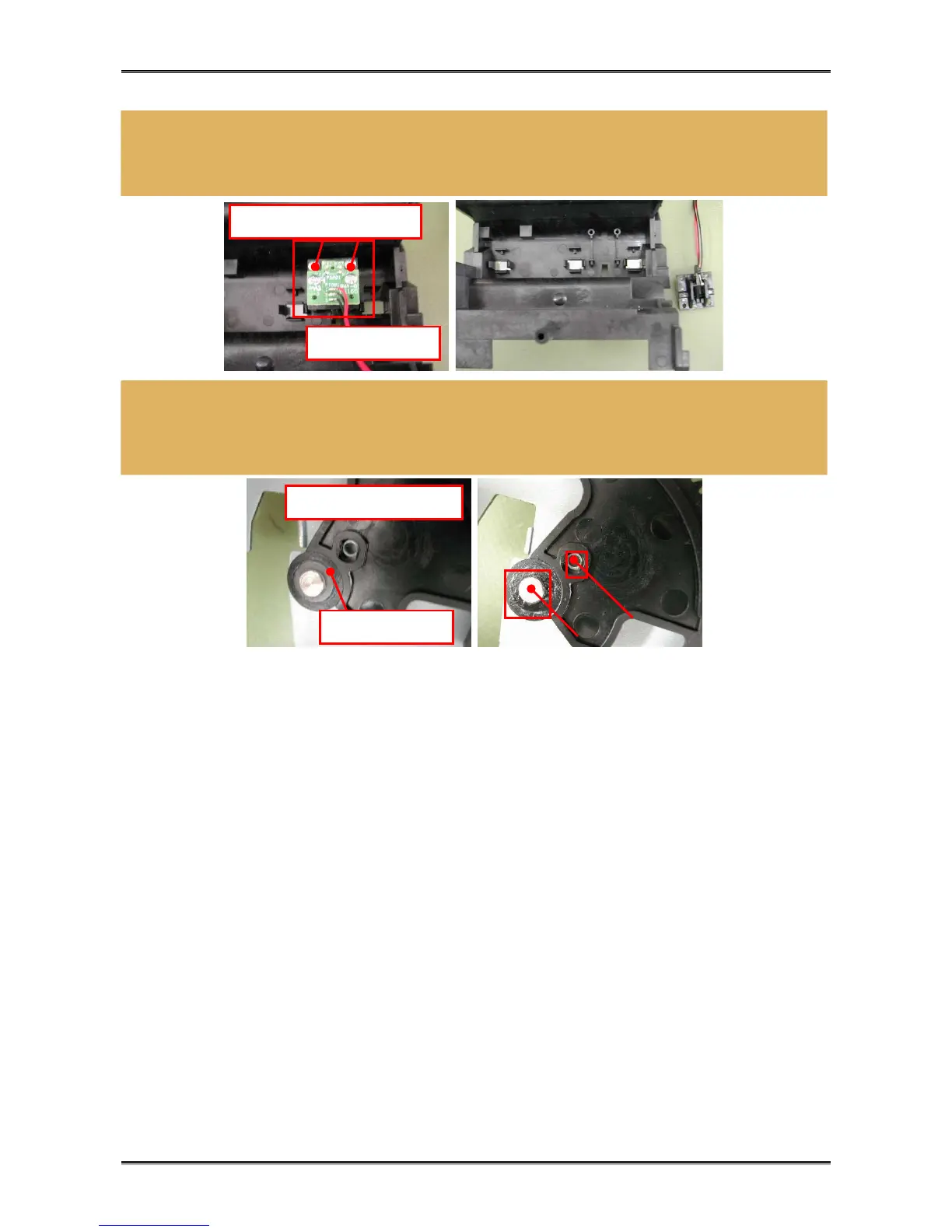

6. Disassembling “SA, PE SENSOR”
Remove two “SCREW, PHT (BT), M2.0 × 6” that fasten “SA, PAPER HOLDER-02” and “SA, PE
SENSOR”.
7. Disassembling “SA, FRAME COVER UNIT-02”
Remove “WASHER, PLATEN” that fastens the hinged section at “SA, FRAME MAIN” to “SA, FRAME,
COVER” and “GEAR, COVER DAMPER”, and remove “GEAR, COVER DAMPER”.
<Precaution at reassembly>
When reassembling, align “GEAR, COVER DAMPER” with the shaft at “FRAME, MAIN” and the boss at
“FRAME, COVER”.
SCREW, PHT (BT), M2.0 × 4
SA, PE SENSOR
WASHER, PLATEN
GEAR, COVER DAMPER
