BE4/5 GEARBOX

Engines : 8HV - 8HY

Draining – filling – levelu

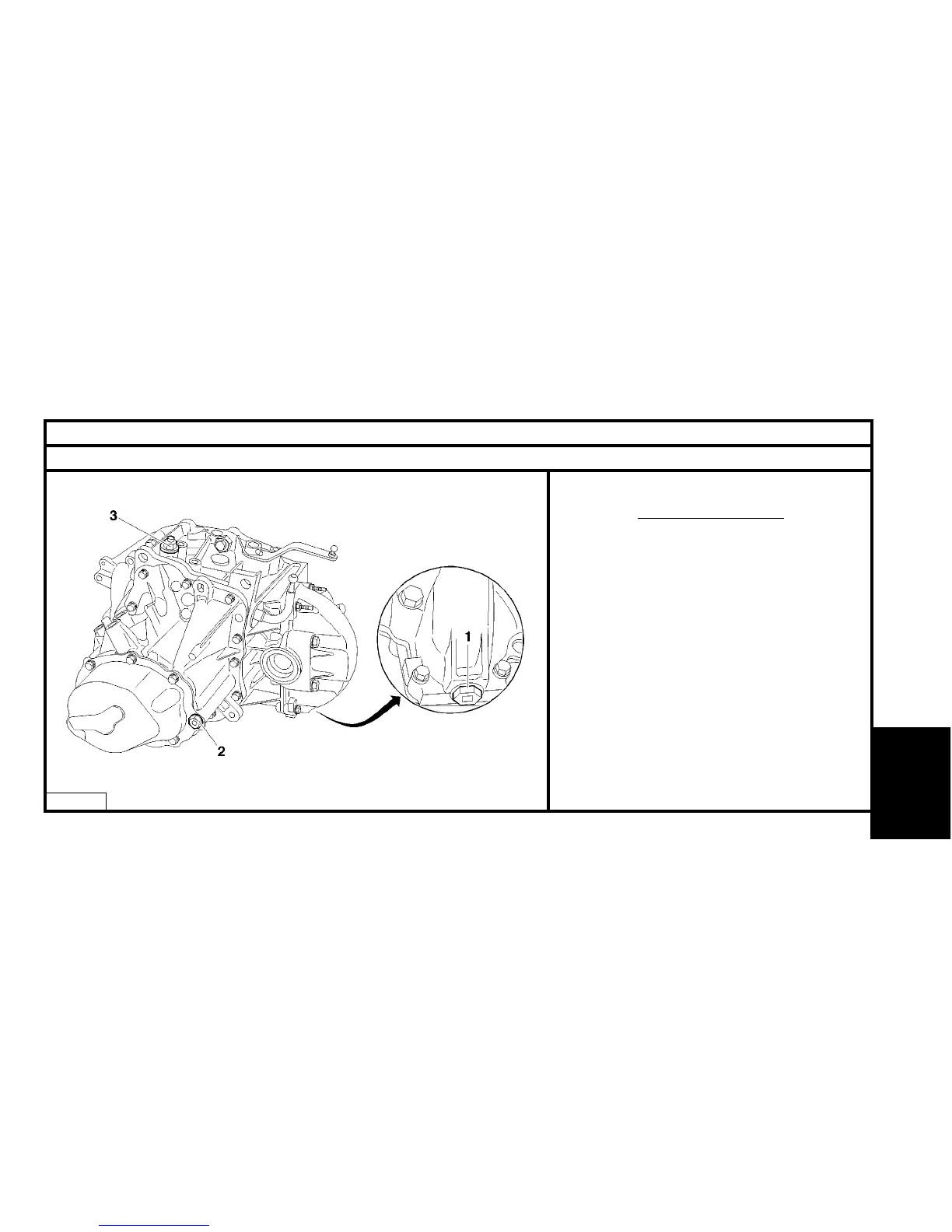

(1) Drain plug.

(2) Filling and top-up plug.

(3) Air vent.

NOTE : The air vent aperture can be used for filling.

Quality of oil

Refer to the manufacturer’s instructions.

Quantity of oil

Gearbox empty : 1,9 Litres.

After draining : 2 Litres.

B2CP3BLD

151
