152
CLUTCH
GEARBOX
DRIVESHAFTS
BE4/5 GEARBOX
Engines : 8HV - 8HY

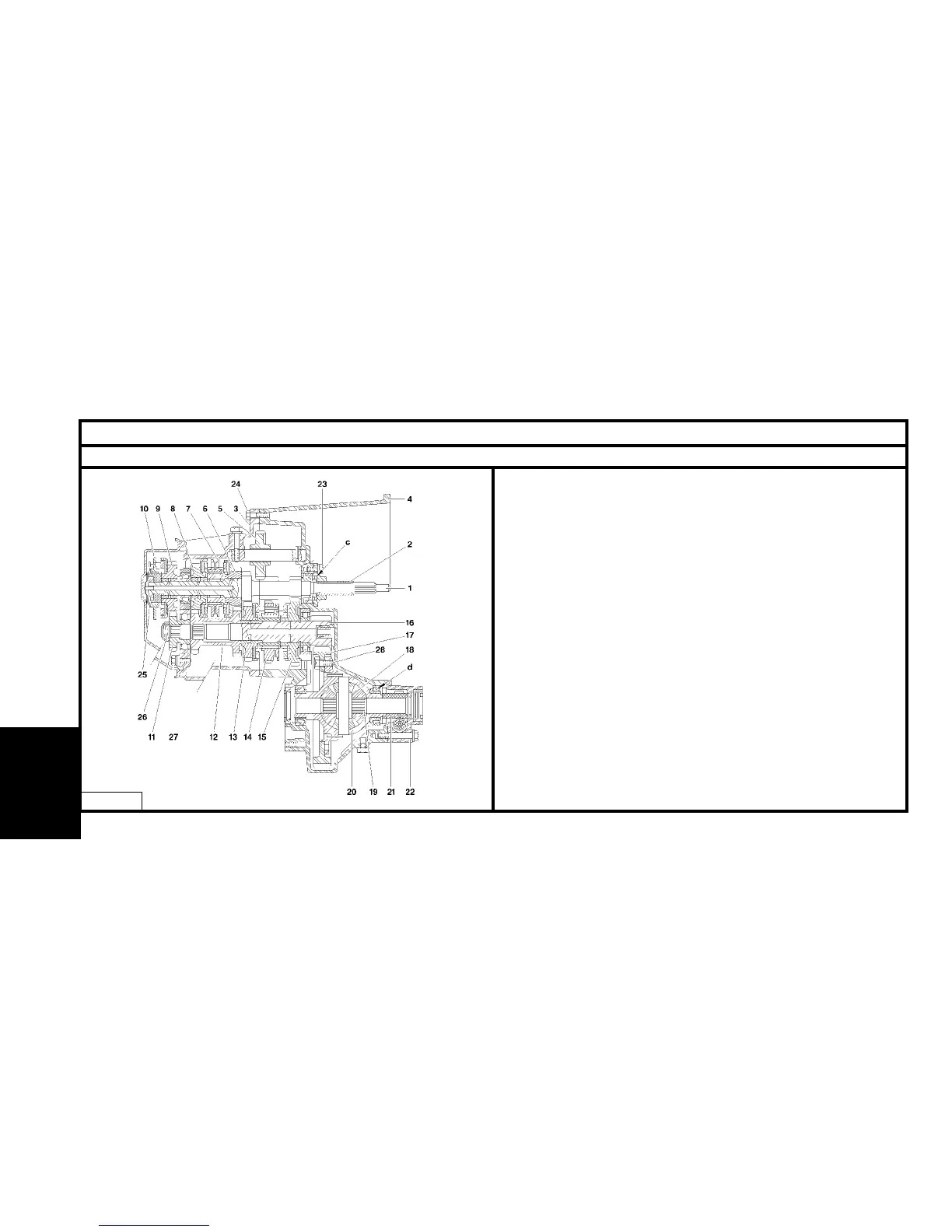

Description.
(1) Primary shaft.
(2) Clutch bearing guide.
(3) Gearbox casing.
(4) Clutch housing.
(5) Reverse idle.
(6) Drive gear (3rd gear).
(7) 3rd /4th gear synchroniser
(8) Drive gear (4th gear).
(9) Drive gear (5th gear).
(10) 5th gear synchroniser.
(11) Driven gear (5th gear).
(12) Driven gear (3rd / 4th gear )
(13) Driven gear (2nd gear).
(14) 1st / 2nd gear synchroniser.
(15) Driven gear (1st gear).
(16) Secondary shaft.
(17) Differential gear.
(18) Satellite gears.
(19) Planet gears.
(20) Differential housing.
(21) Speedometer drive.
(22) Extension.
«c» Adjusting shims : 0,7 to 2,4 mm (From 0,10 to 0,10 mm)
«d» Adjusting shims:1,4 to 1,6 mm (From 0,10 to 0,10 mm)
B2CP3BQP
