2

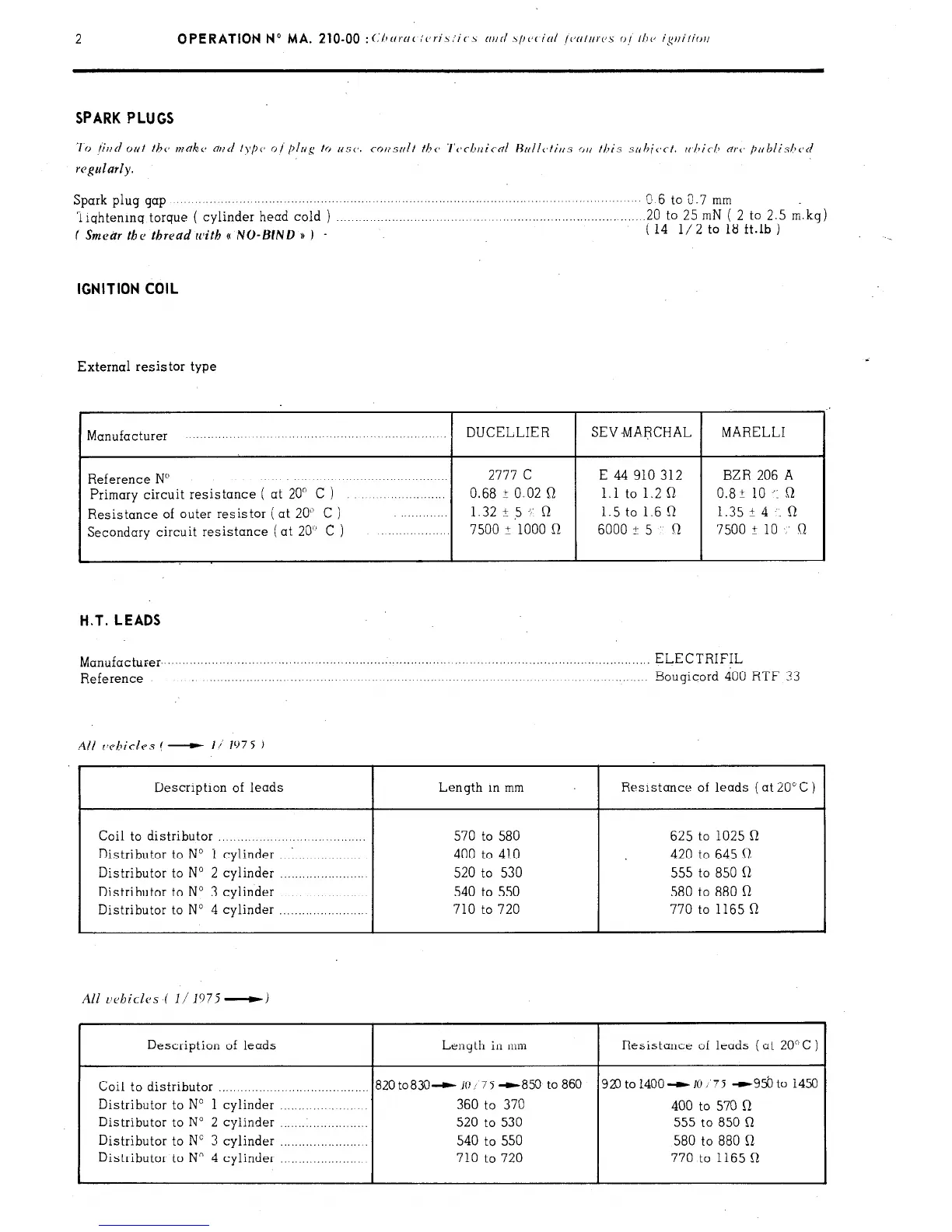

OPERATION No MA. 210-00 :~~‘hornc:cris:ics mri special /~~nttrrc,.s o,/ /he ig/litiorl
Spark plug gap .,...._.......,...,. ,..._. ,...... ., ,, ,,
Q.6 to 0.7 mm
1 iqhtenrng torque ( cylinder head cold ) .._..._._........._.......... .20 to 25 mN ( 2 to 2.5 m.kg)
f Smear the thread with e NO-BIND n ) -
( 14 l/2 to 18 ft.Ib )
IGNITION COIL
External resistor type
I
Manufacturer
I
DUCELLIER
I
SEV MARCHAL
I
MARELLI
Reference N”
2777 C E 44 910 312 BZR 206 A
Primary circuit resistance ( at 20” C )
0.68 i 0.02 n 1.1 to 1.2 Q 0.8+ 10 .: ,R
Resistance of outer resistor (at 20” C )
1.32 + 5 ‘; R 1.5 to 1.6 R 1.35 i 4 . . R
Secondary circuit resistance (at 20” C )
7500 2 1000 n
6000 -!I 5 Cl
7500 + 10 !’ Q
H.T. LEADS
Length in mm Resistance of leads ( at 20” C )
Manufacturer. .................. .......................................................... .....................................................
ELECTRIFIL
Reference
..................... ............. ........... ....... ....... ... ........................ ............ ......... Bougicord 400 RTF 33
All rY?biclas ( -
I/’ 1975 1
Description of leads
Coil to distributor ............................ ...........
Distributor to No 1 cylinder ... . ..................
Distributor to No 2 cylinder .......................
Distributor to N” 3 cylinder ........................
Distributor to N” 4 cylinder ........................
570 to 580 625 to 1025 !J
400 to 410 420 to 645 11
520 to 530 555 to 850 11
540 to 550 580 to 880 Q
710 to 720 770 to 1165 Q
I I I
Description of leads Length in mm
I
Resistance of leads ( at 20” C )
Coil to distributor ......................................... 820 to83O- 10 1 75 -859 to 860
Distributor to No 1 cylinder ..................... 360 to 370
Distributor to N” 2 cylinder ........................ 520 to 530
Distributor to NC 3 cylinder ....................... 540 to 550
Distributor to N” 4 cylinder
...................... 710 to 720
920 to 1400 - 10 175 -93.3 to 1450
400 to 570 n
555 to 850 R
580 to 880 Q
770 to 1165 Q
I
I 1
