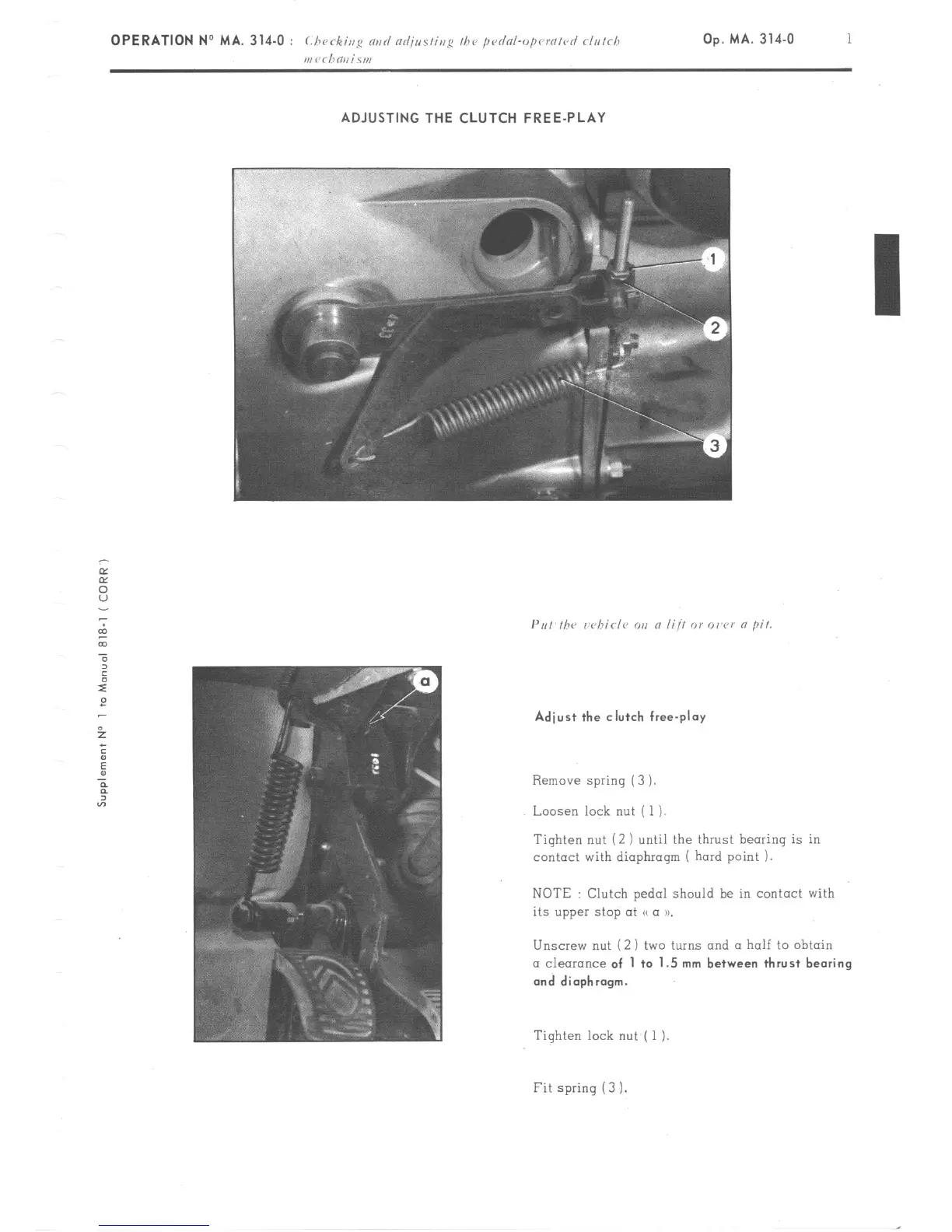

ADJUSTING THE CLUTCH FREE-PLAY
Adjust the clutch free-play
Remove spring (3 ).
Loosen lock nut ( 1 ).
Tighten nut (2 ) until the thrust hearing is in
contact with diaphragm ( hard point 1.
NOTE : Clutch pedal should be in contact with
its upper stop at << (I n.
Unscrew nut (2 1 two turns and a half to obtain
CI clearance of 1 to 1.5 mm between thrust bearing
and diaphragm.
Tighten lock nut ( 1 )
Fit spring (3 I.
