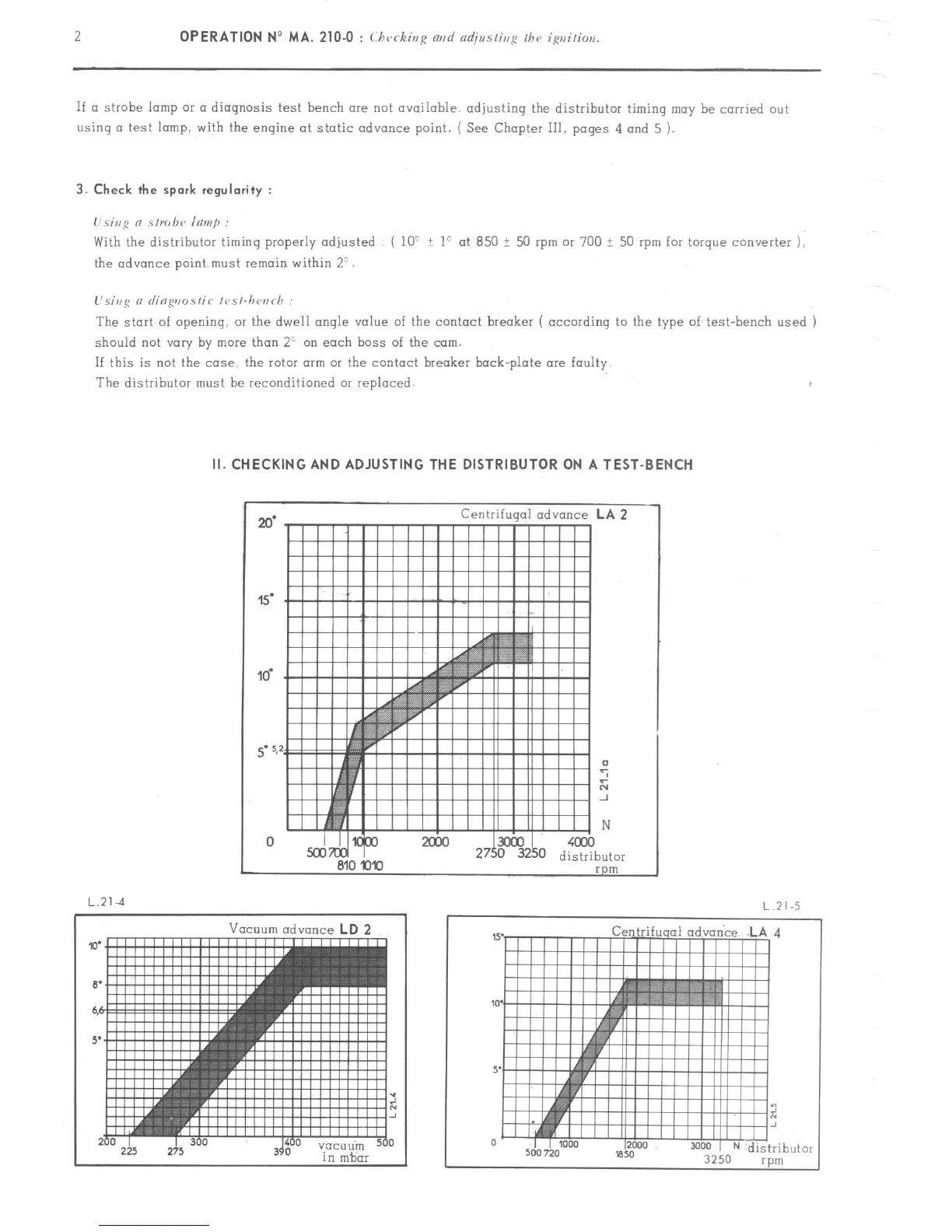

2 OPERATION No MA. 210-O : (.hrrkb,g nnci
adiustiug ~hc igrzitim
If CI strobe lamp 01 a diagnosis test bench ore not available. adjusting the distributor timing may be carried out
using LT test lamp. with the engine at static advance point. ( See Chapter III, pages 4 and 5 ).
3.
Check the spark regularity :
tisiag n s/robe Imp :
With the distributor timing properly odj.usted ( loi ? 1’ at 850 ?- 50 rpm or 700 ? 50 rpm for torque converter 1,
the advance point must remain within 2”.
1’s;~~ n dinpi,osfir /cs/-hozrh :
The start of opening, or the dwell angle value of the contact breaker ( according to the type of test-bench
used )
should not vary by more than 2’ on each boss of the cam.
If this is not the case the rotor clrm 01 the contact breaker bock-plate ore faulty
The distributor must be reconditioned or replaced.
II. CHECKING AND ADJUSTING THE DISTRIBUTOR ON A TEST-BENCH
L.21.4
ante LA 2
n
Centrifugal adv
