CITROEN CX 2000 - Page 180

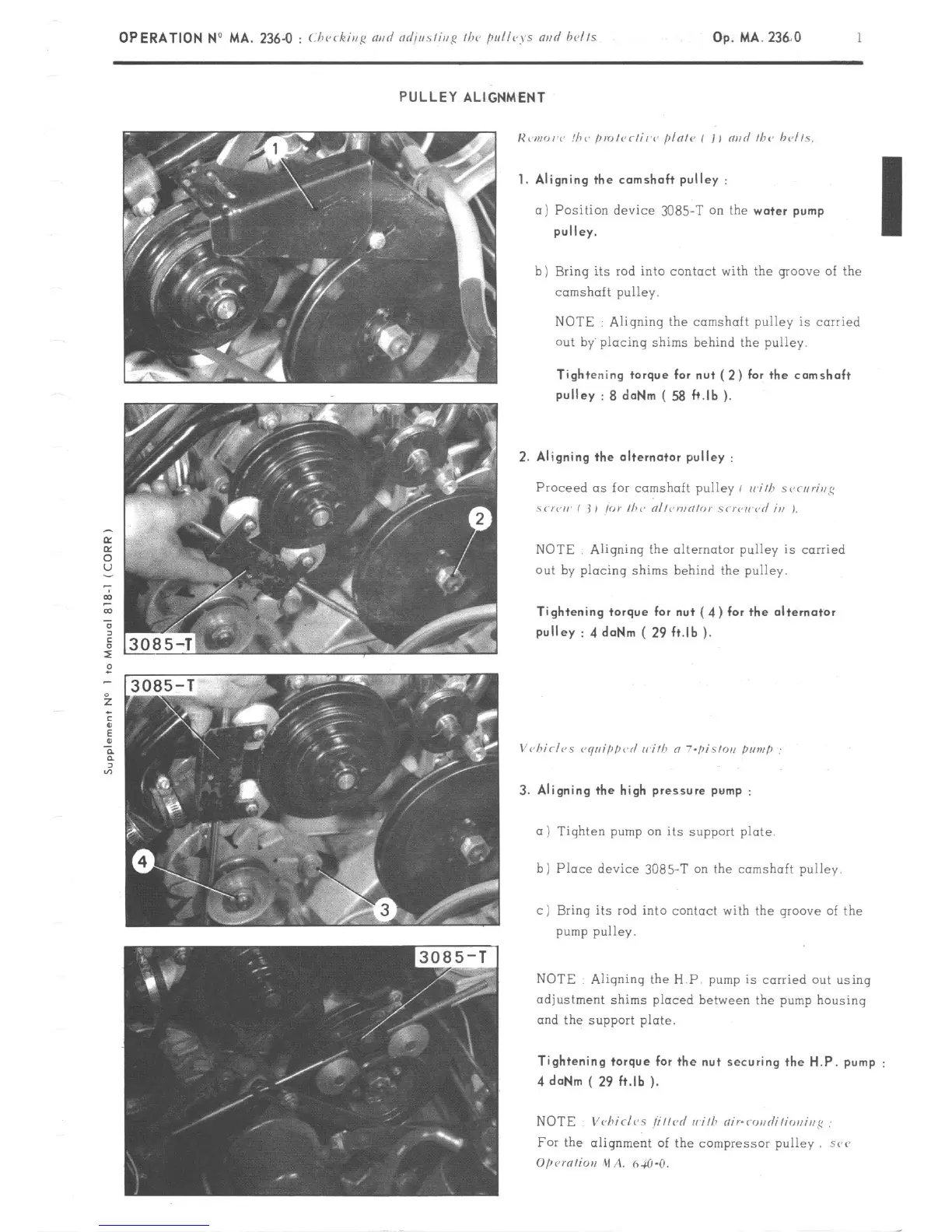

OPERATION No MA. 236.0 : C h<,rki,,p a,,d nd;r,slh,p I/w jwllr\s aurl /x,//s
Op. MA. 2360
I
PULLEY ALIGN& IENT
1. Aligning the camshaft pulley :
a) Position device 3085-T on the water pump
pulley.
b) Bring its rod into contact with the groove of the
camshaft pulley.
NOTE Aligning the camshaft pulley is carried
out by’plocing shims behind the pulley.
Tightening torque for nut (2) for the comshoft
pulley : 8 daNm ( 58 h.lb ).
2. Aligning the alternator pulley :
Proceed as for camshaft pulley / ,,,;/I> s<wrinp
SC-r<,!, , j I /or I,,<, RllI~)11010F c<)L,, <,d i,, ,,
NOTE Aligning the alternator pulley is carried
out by plocinq shims behind the pulley.
Tightening torque for nut (4) for the olternatov
pulley : 4 daNm ( 29 ft.lb ).
3. Aligning the high pressure pump :
a ) Tighten pump on its support plate
b) Place device 3085-T on the camshaft pulley.
c) Brinq its rod into contact with the groove of the
pump pulley.
NOTE Aliqninq the H P pump is curried out using
adjustment shims placed between the pump housing
and the support plate.
Tightening torque for the nut securing the H.P. pump :
4 doNm ( 29 ft.lb ).
NOTE Vchirlc,s filled ,,~;//I oirrrii,rli/iriniii,~
For the alignment of the compressor pulley, SLO
Opr~mrio~, MA, ~,40.,-(,.
