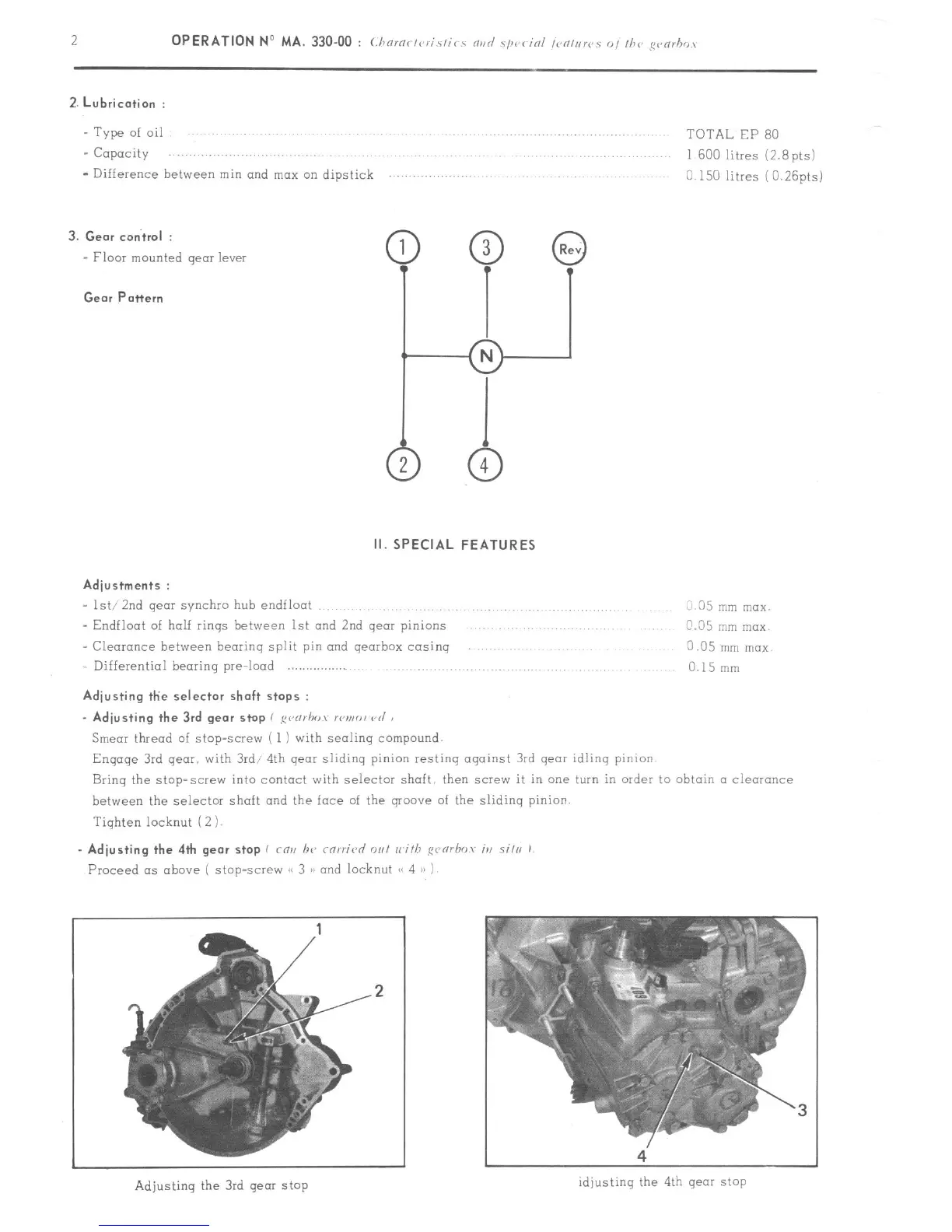

2.
Lubrication :
- Type of oil
- Capacity
- Difference between min and mox on dipstick
TOTAL EP 80
1600 litres (2.8pts)
C.150 litres (0.26pts)
3. Gem control :
- Floor mounted gear lever
Gear Pattern
Il. SPECIAL FEATURES
Adjustments :
- lst/ 2nd gear synchro hub endfloot
_ Endfloot of half rinqs between 1st and 2nd qear pinions
- Clearance between beorinq split pin and qearbox cosinq
= Differential bearing pre-loud
Adjusting the selector shaft stops :
L/35 mln rnclx.
0.05
mm max.
3.05 mnl mox
c.15 mm
- Adjusting the 3rd gear stop I ,<curimv wmor <,<i 8
Smear thread of stop-screw ( I ) with sealing compound.
Engage 3rd qear. with 3rd/ 4th qear slidinq pinion restinq aqainst 3rd qear idlinq pinion
Brinq the stop-screw into contact with selector shaft then screw it in one turn in order to obtain CI clearonce
between the selector shaft and the face of the groove of the slidinq pinion.
Tiqhten locknut ( 2 ).
Proceed as above ( stop-screw a< 3 >\ and locknut ,< 4 /> )
.2
Adjusting the 3rd gear stop
idjustinq the 4th gear stop
