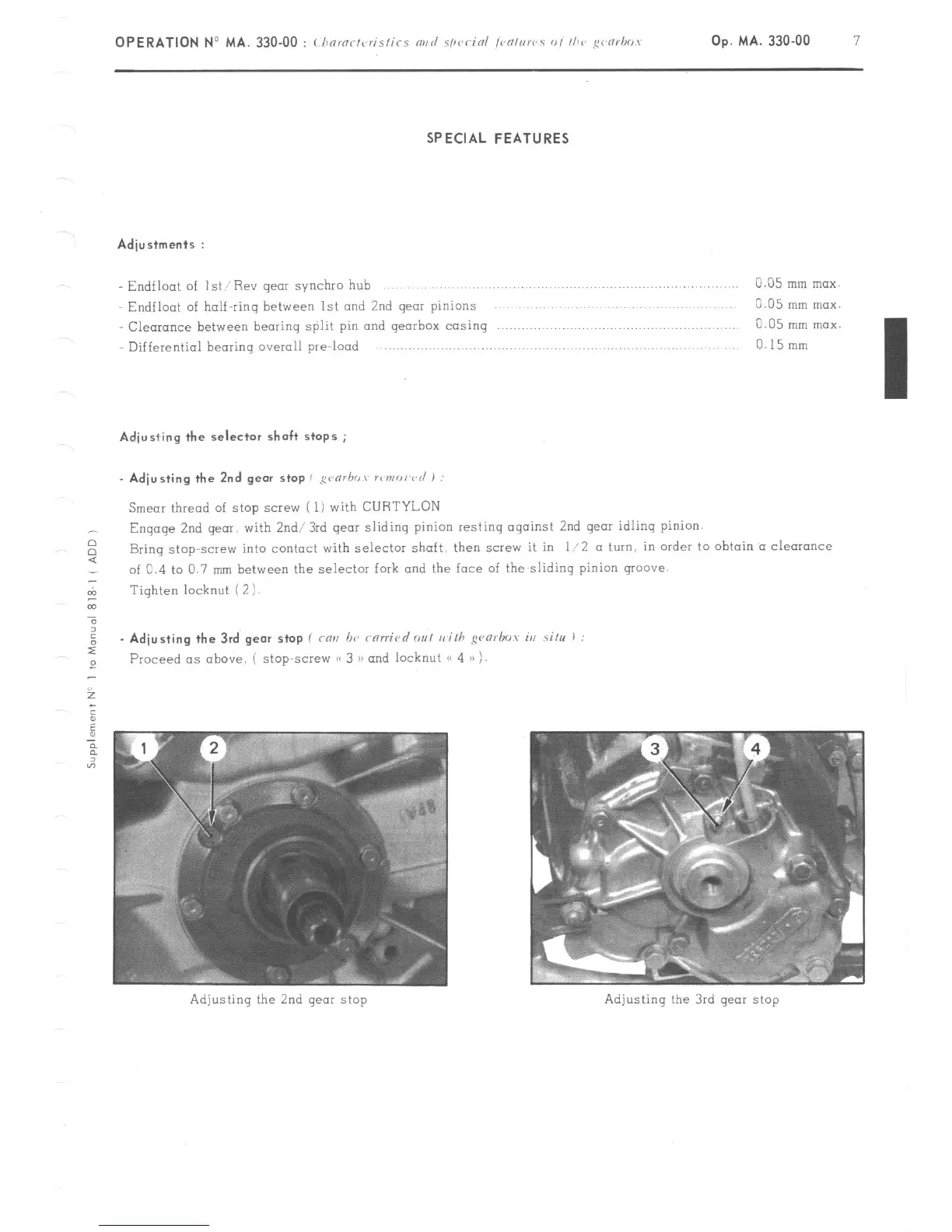

OPERATION No MA. 330.00 : ( l~nmrtvrisfirs <I,,</ wcrinl ,rn,,,wr o, //I<, ,e< nrho.\
Op. MA. 330-00 7
SPECIAL FEATURES
Adiustments :
Endflaot of 1st: Rev gear sjnchro hub
0.35 mm max.
Endfloat of half-ring
between
1st and 2nd gear pinions
3.05 nlm nlax.
Clearance between beorinq split pin and gearbox casing
c.05 mm nlax.
Differential bearing overoll pre-load
0 15mm
Adiusting the selector shaft stops ;
Smear thread of stop screw ( 1) with CURTYLON
Engage 2nd qear. with 2nd/3rd gear sliding pinion resiinq against 2nd gear idling pinion.
$
Bring stop-screw into contaci with selector shaft, then screw it in 1 ‘2 a turn. in order to obtain o clearance
of 0.4 io 0.7 mm between the selector fork and the face of the slidinq pinion groove
7
m
Tighten locknut ( 2 !
- Adjusting the 3rd gear stop ( cm lx
rorric,d out rrith pnrbov iu situ I
Proceed ~1s above. j stop-screw (< 3 >) and locknut e 4 1) !.
