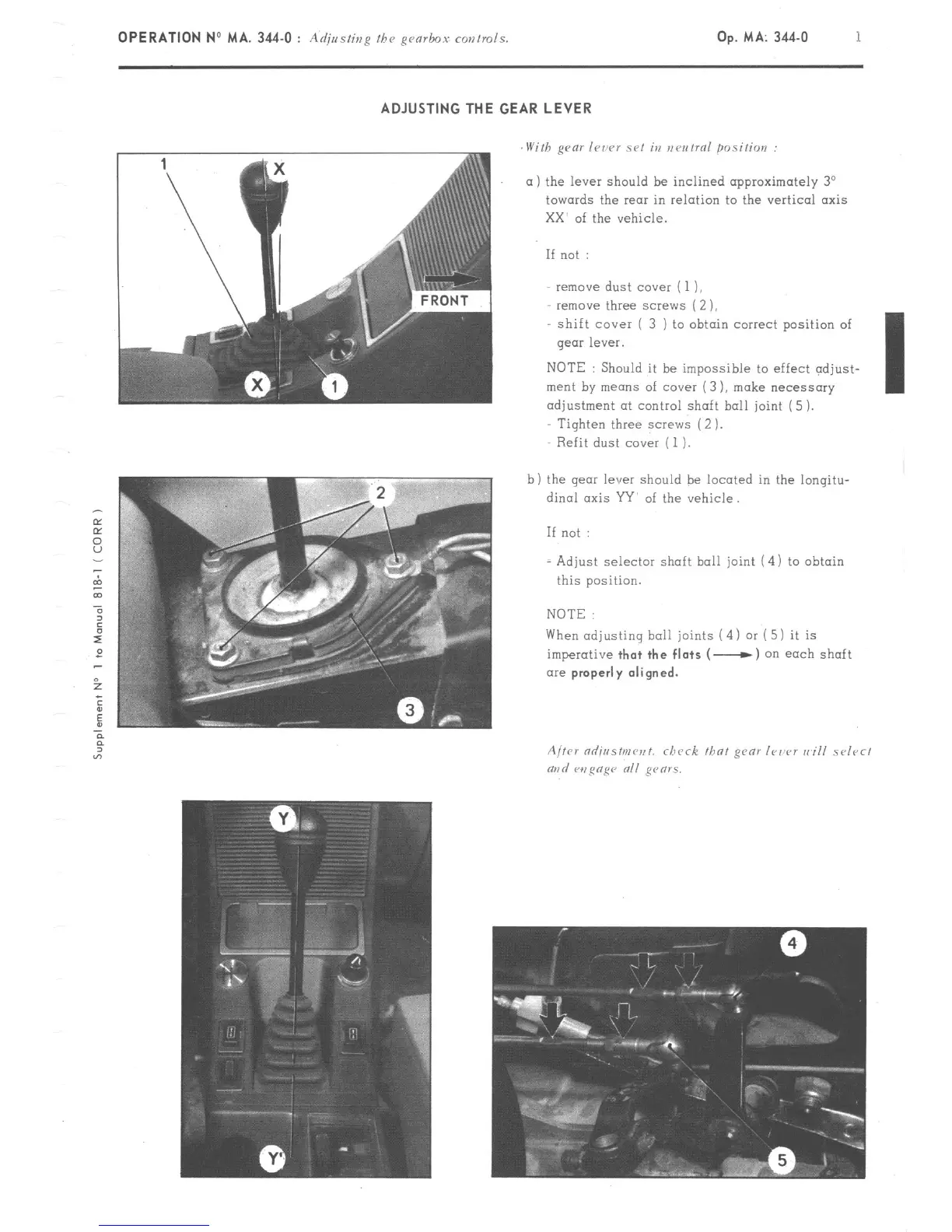

OPERATION No MA. 344-O :
Adjusting thy gcarbor con/ro/s.
Op. MA: 344.0 1
ADJUSTING THE GEAR LEVER
(I) the lever should
be
inclined approximately 3’
towards the rear in relation to the vertical axis
XX’ of the vehicle.
If not :
remove dust cover ( 1 ),
remove three screws ( 2 ),
shift cover ( 3 ) to obtain correct position of
gear lever.
NOTE : Should it be impossible to effect odjust-
merit by means of cover (3 ),
make necessary
adjustment at control shaft hall joint (5 ).
Tighten three screws (2 ).
Refit dust cover (1 ).
b)
the gear lever should be located in the longitu-
dinal axis YY’ of the vehicle.
If not :
= Adjust selector shaft boll joint (4) to obtain
this position.
NOTE :
When adjusting boll joints (4) 01 i 5) it is
imperative
that the flats (v)
on each shaft
ore properly aligned.
