Supplement NC 1 to Manual 818-l f CORR )

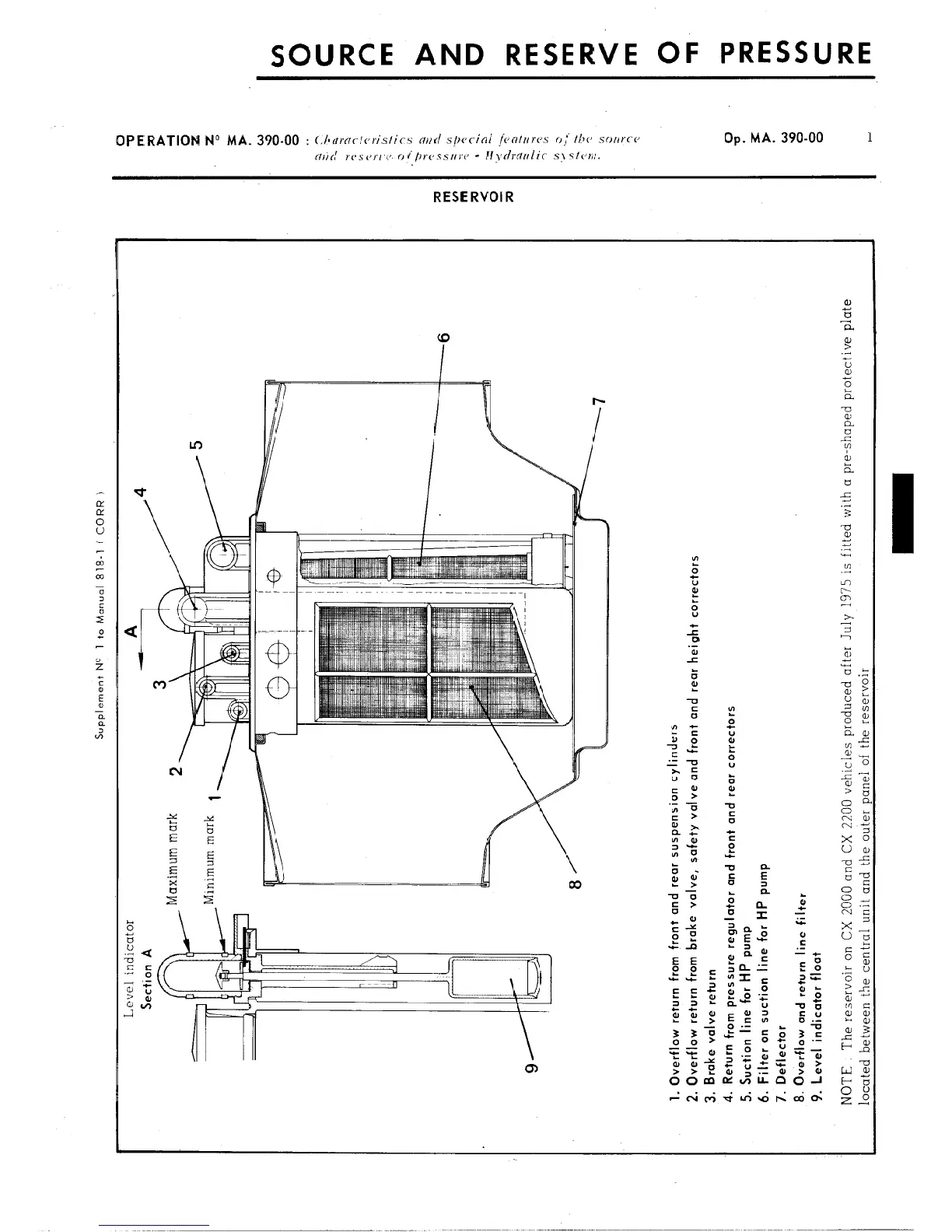

Level indicator
Section A
Maximum mark
Minimum mark
1. Overflow return from front and rear suspension cylinders
2. Overflow return from brake valve, safety valve and front and rear height correctors
3. Brake valve return
4. Return from pressure regulator and front and rear correctors
5. Suction line for HP pump
6. Filter on suction line for HP pump
7. Deflector
8. Overflow and return line filter
9. Level indicator float
NOTE The reservoir on CX 2000 and CX 2200 vehicles produced after July 1375 is fitted with a pre-shaped protective plate
located between the central unit and the outer uanel of the reservoir
