CITROEN CX 2000 - Page 220

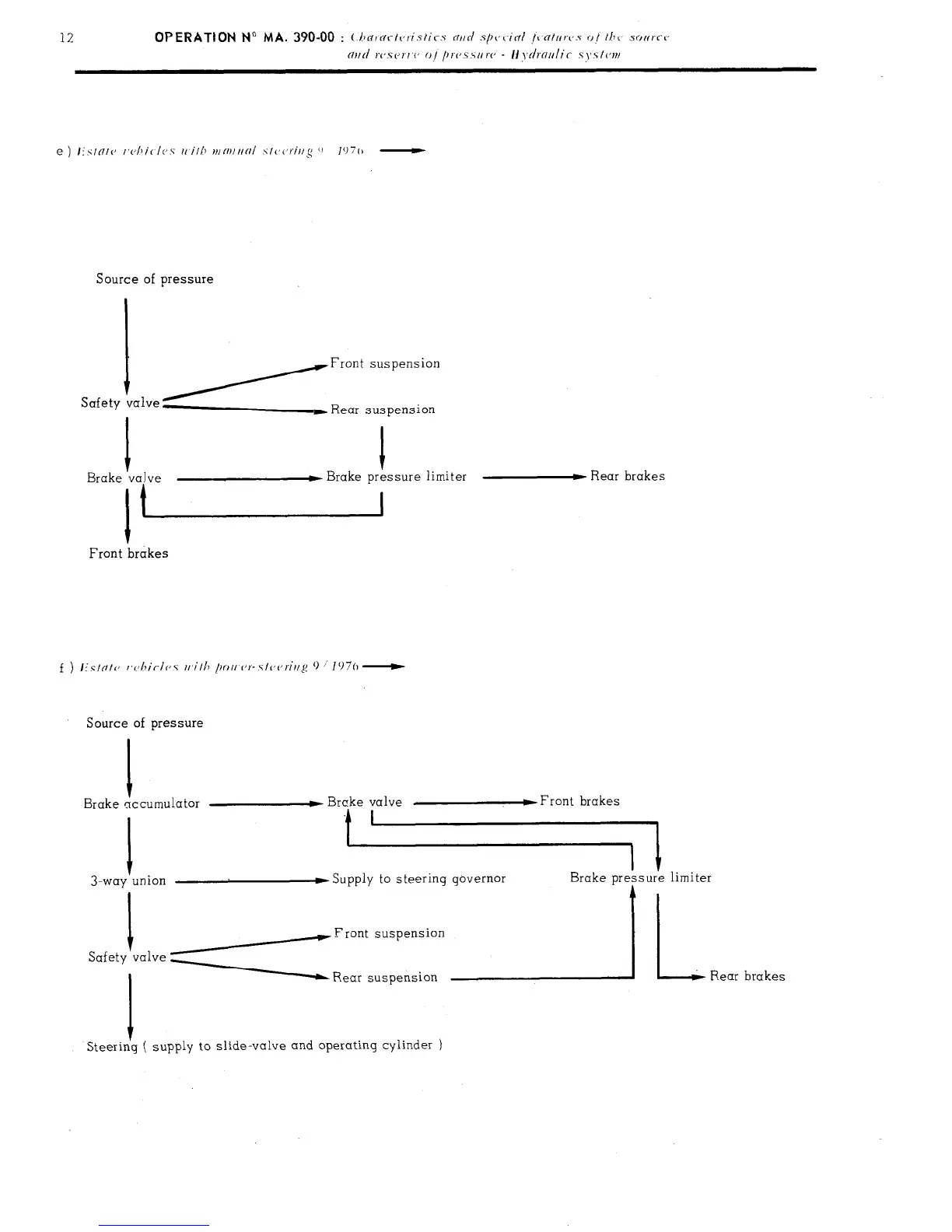

Source of pressure
Safety ialveYFront suspension
t
L Rear suspension
I
I
Brake valve
w Brake pressure limiter
w Rear brakes
I
t
Front ‘brakes
Source of pressure
I
Brake accumulator
I
3-way union
F Brake valve
w Front brakes
Supply to steering governor
Safety
I
va1ve y Rear suspension
I
Steering ( supply to slide-valve and operating cylinder )
