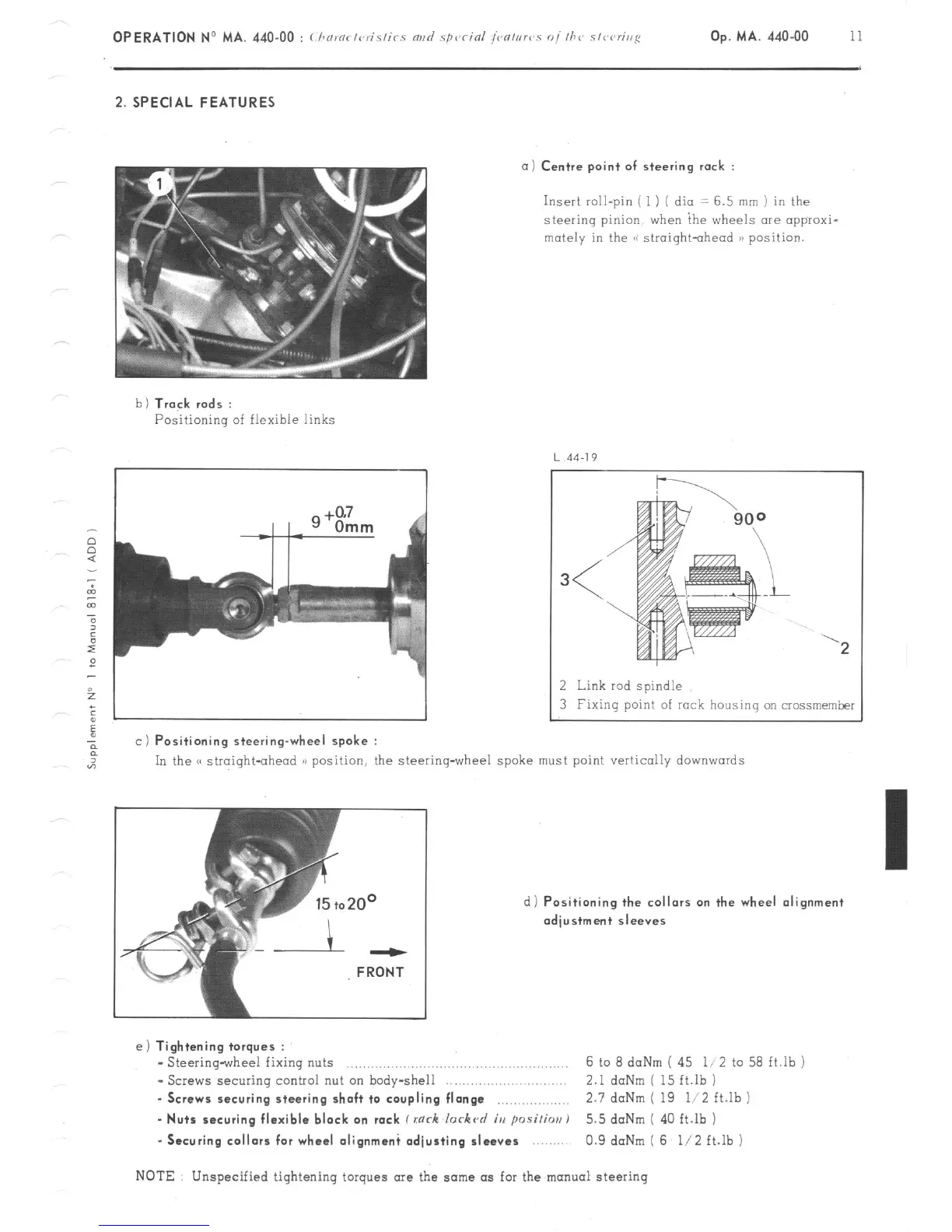

Op. MA. 440.00 11
2. SPECIAL FEATURES
a) Centre point of steering rack :
Insert roll-pin ( 1 ) ( dio -: 6.5 mm ) in the
steering pinion when ihe wheels are appraxi-
mutely in the GG siroightohead )B position.
b 1 Track rods :
Positioning of flexible links
4J
a
c) Positioning steering-wheel spoke :
2 Link rod spindle
3 Fixing point of rock housing on crossmemker
In the C( straight-ahead )) position, the steering-wheel spoke must point vertically
downwards
d) Positioning the collars on the wheel alignment
adjustment sleeves
---
FRONT
e) Tightening torques :
- Steering-wheel fixing nuts ..,.,........,......,.. ..,
6 to 8 daNm ( 45 li 2 to 58 ft.lb j
- Screws securing control nut on body-shell
2.1 daNm ( 15 ft.lb )
. Screws securing steering shaft to coupling flange
,.,,.,,,,,.,.,.,,,
2.7 doNm ( 19 li2 ft.lb )
- Nuts securing flexible block
on
rack
C rnrh lorkc~d iu psi/h)
5.5 doNm ( 40 ft.lb )
-Securing collars for wheel olignmani adjusting sleeves
0.9 daNm ( 6 l/2 ft.lb )
NOTE Unspecified tightening torques are the same as for the manual steering
