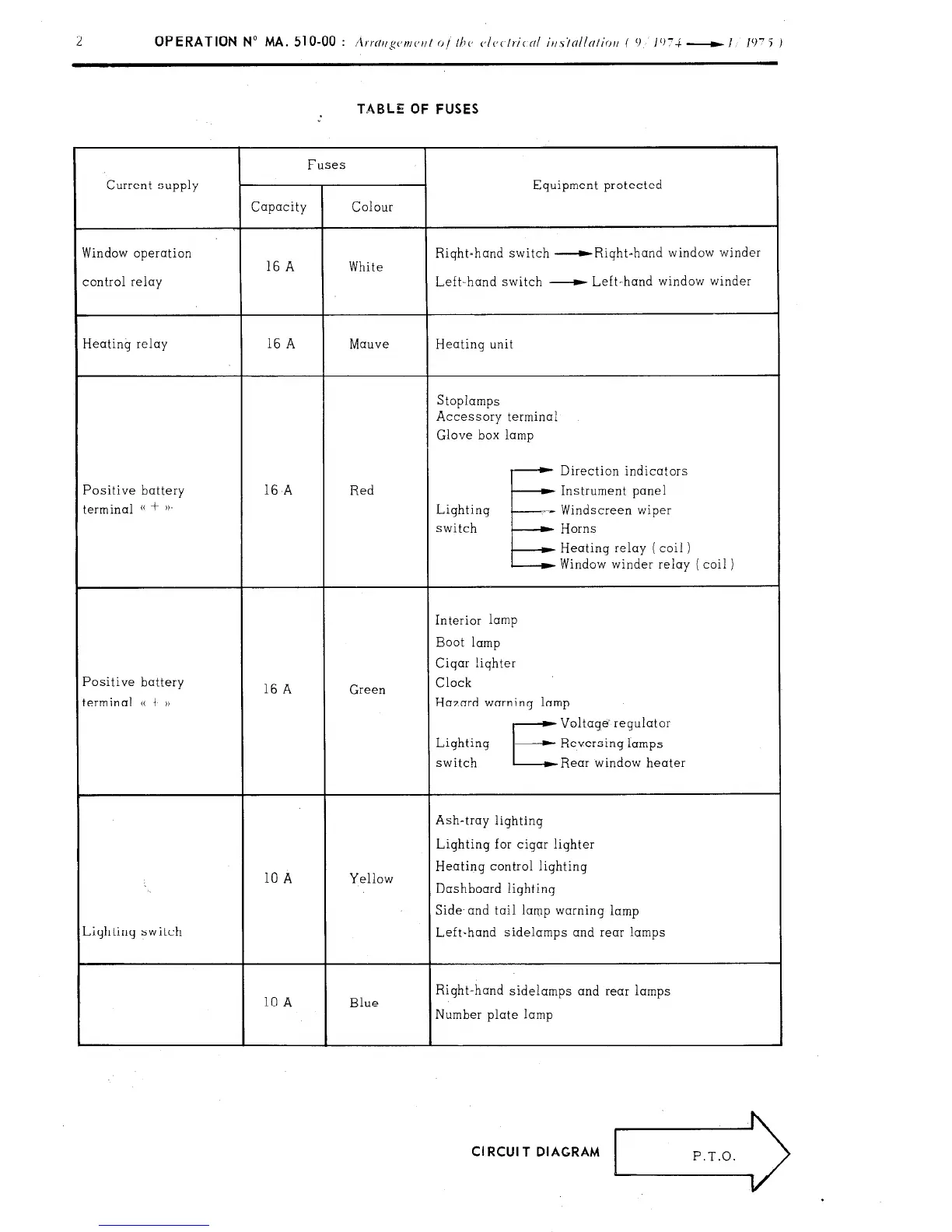

TABLE OF FUSES
Current supply
findow operation
ontrol relay
Fuses
Equipment protected
Capacity Colour
Right-hand switch
-Right-hand window winder
16 A White
Left-hand switch
- Left-hand window winder
Ieating relay 16 A Mauve
Heating unit
Stoplamps
Accessory terminal
Glove box lamp
‘ositive battery
erminal (( + )).
16
A Red
Direction indicators
E
Instrument panel
Lighting -- Windscreen wiper
switch Horns
Heating relay ( coil )
Window winder relay ( coil )
‘ositive battery
erminal (( t 1)
16 A Green
Interior lamp
Boot lamp
Cigar lighter
Clock
Hazard warning lamp
Lighting
switch
E
Voltage’ regulator
Reversing lamps
Rear window heater
Ash-tray lighting
10 A Yellow
Lighting for cigar lighter
Heating control lighting
Dashboard lighting
,ighting switch
Side- and tail lamp warning lamp
Left-hand sidelamps and rear lamps
10 A Blue
Right-hand sidelamps and rear lamps
Number plate lamp
Cl RCUI T DIAGRAM
r>
