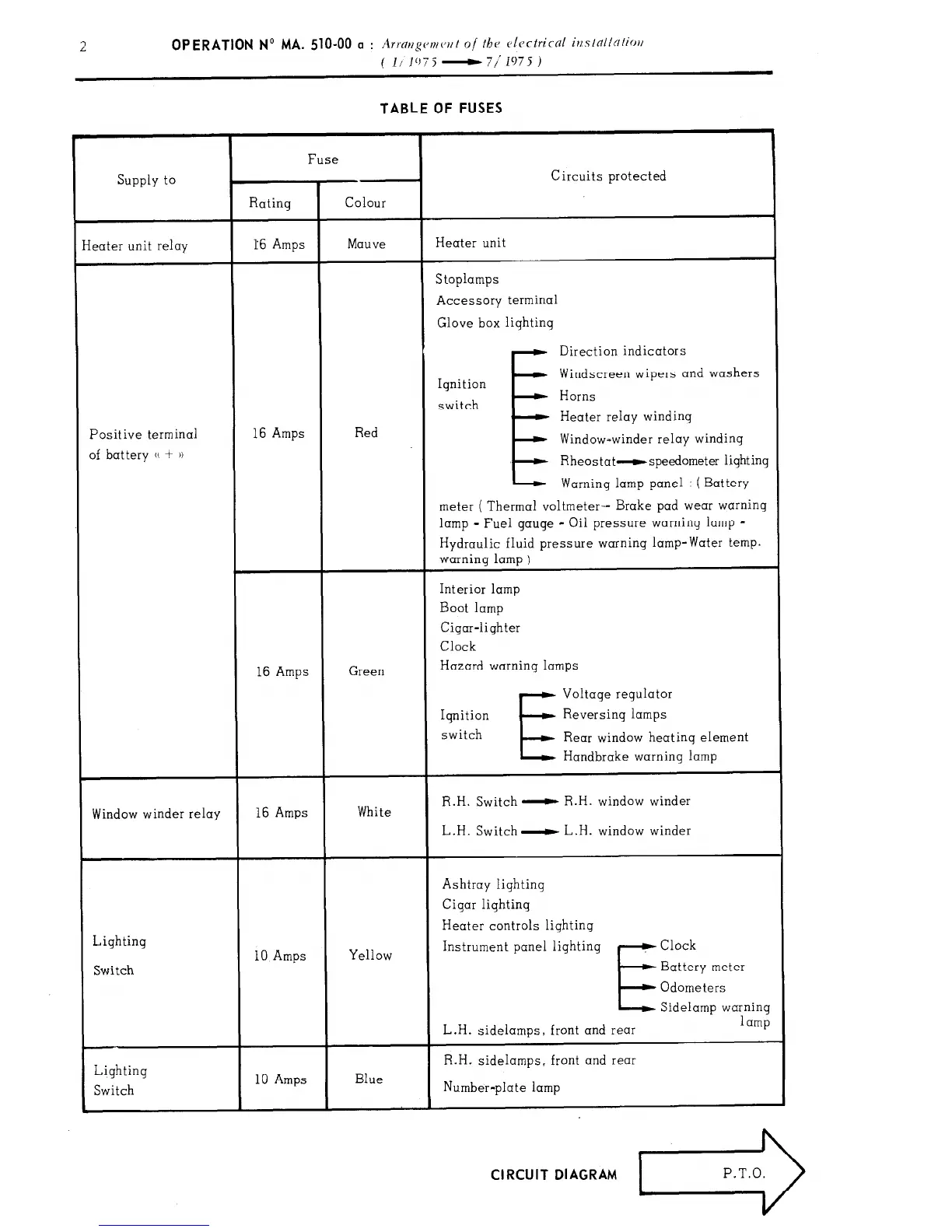

TABLE OF FUSES
Supply to
eater unit relay
Fuse
Circuits protected
Rating
Colour
16 Amps
Mauve
Heater unit
S toplamps
Accessory terminal
Glove box lightinq
Positive terminal
of battery u + ))
16 Amps Red
E
Direction indicators
Ignition
Windscreen wipers and washers
switch
Horns
Heater relay windinq
Window-winder relay winding
Rheostat
-speedometer lighting
Warning lamp panel ( Battery
meter ( Thermal voltmeter-- Brake pad wear warning
lamp - Fuel gauge -
Oil pressure warning lamp -
Hydraulic fluid pressure warning lamp-Water temp.
warning lamp )
16 Amps
Green
Interior lamp
Boot lamp
Cigar-lighter
Clock
Hazard warning lamps
E
Voltage regulator
Iqnition
Reversing lamps
switch
Rear window heating element
Handbrake warning lamp
Window winder relay
16 Amps White
R.H. Switch 0
R.H. window winder
L.H. Switch- L.H. window winder
Lighting
Switch
10 Amps
Yellow
Ashtray lighting
Cigar lighting
Heater controls lighting
Instrument panel lighting
Clock
E
Battery meter
Odometers
Sidelamp warning
L.H. sidelamps, front and rear
1 amp
Lighting
Switch
10 Amps Blue
R.H. sidelamps, front and rear
Number-plate lamp
CIRCUIT DIAGRAM
>
P.T.O.
