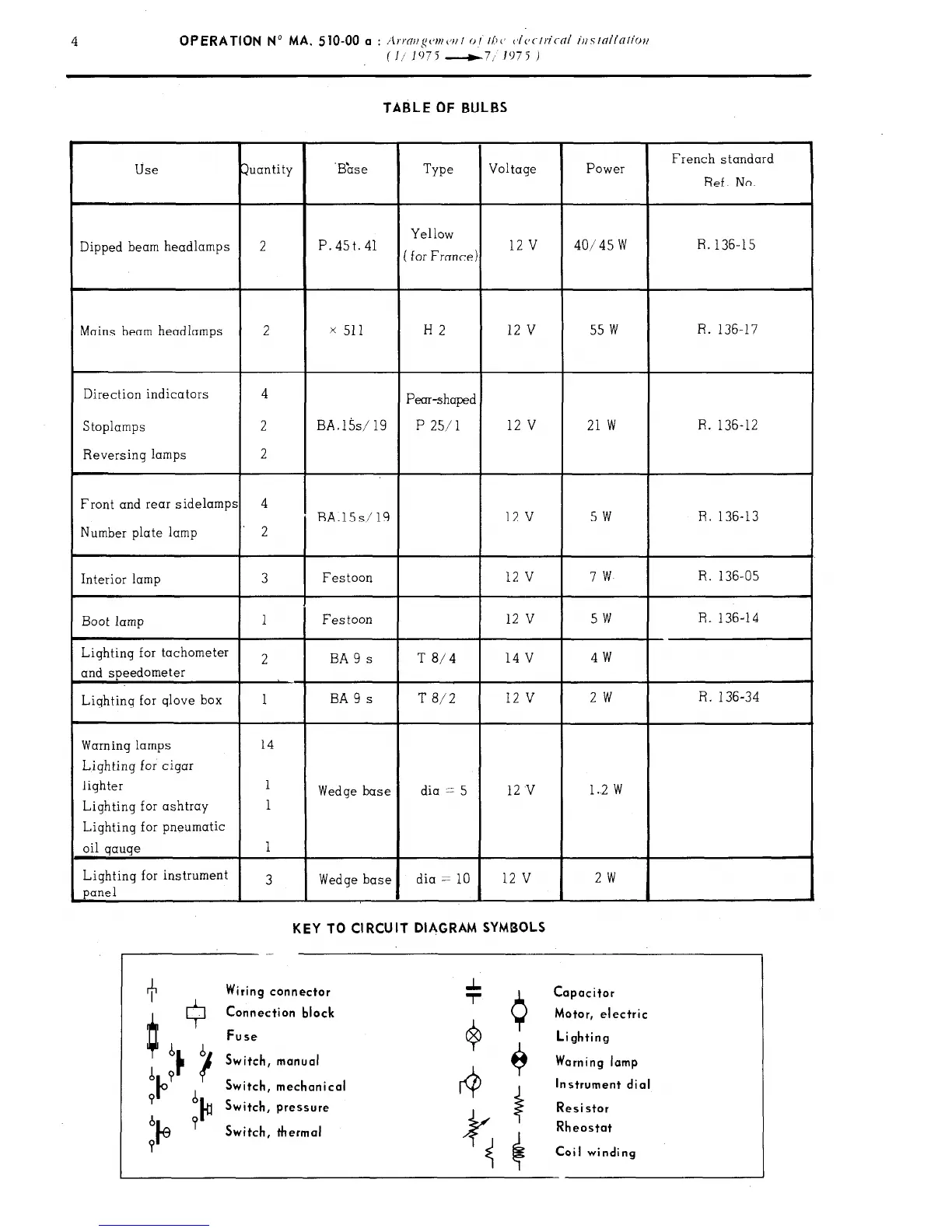

TABLE OF BULBS
Use
Juantity ‘B&e
Type
Voltage
Power
French standard
Ref. No.
Yellow
Dipped beam headlamps 2 P. 45t. 41
R.
( for France)
12 v 40/45 w
136-15
Mains beam headlamps 2
x 511 H2 12 v 55 w
R. 136-17
Direction indicators
4
Pear-shaped
Stoplamps 2 BA.l5s/ 19
P 25/l 12 v 21 w
R. 136-12
Reversing lamps
2
Front and rear sidelamps 4
BA.l5s/ 19
12 v 5w
R. 136-13
Number plate lamp
2
Interior lamp
3 Festoon 12 v
7w R. 136-05
Boot lamp
1 Festoon
12 v 5w R. 136-14
Lighting for tachometer 2 BA 9 s
T
8/4
14 v 4w
and speedometer
Lighting for glove box 1
BA 9 s T 8/2 12 v 2w
R. 136-34
Warning lamps 14
Lighting for cigar
lighter 1
Wedge base
dia == 5 12 v 1..2 w
Lighting for ashtray
1
Lighting for pneumatic
oil gauge
I
Lighting for instrument
3
panel
Wedge base
dia = 10 12 v
2w
KEY TO CIRCUIT DIAGRAM SYMBOLS
I
Wiring connector
Q
+
Capacitor
0
Connection black Motor, electric
Fuse
b b
Lighting
d ? 16
Switch, manual Warning lamp
IO
Switch, mechanical
Instrument dial
? d
Switch, pressure Resistor
b ?
I@
)#
Switch, thermal
Rheostat
P
Coil winding
