OPERATION No MA. 510-00
b : Arratzgement of the electrical installation
( jhrl 9/1975 )

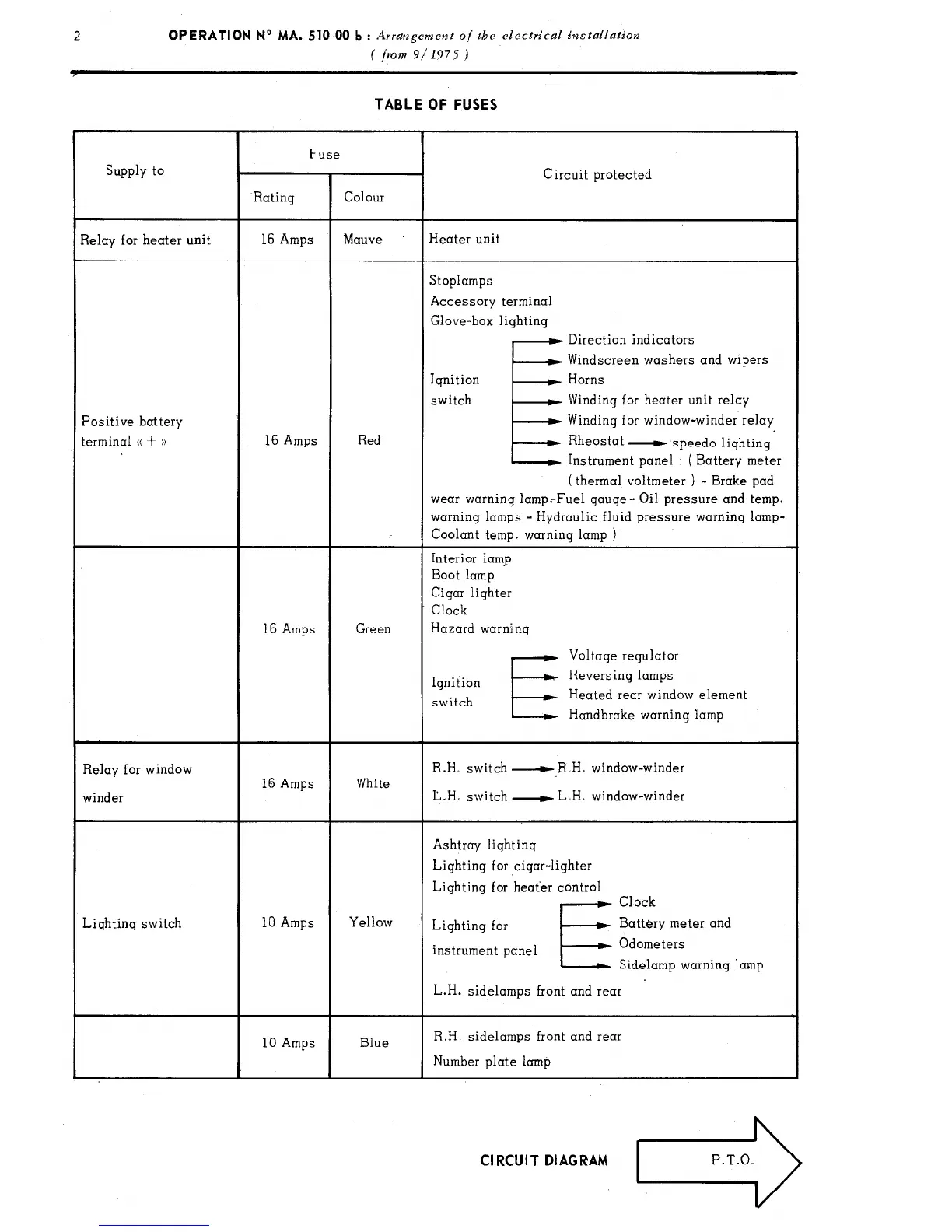

TABLE OF FUSES
Supply to
lelay for heater unit
‘ositive battery
erminal (( + 1)
Fuse
Circuit protected
Rating
Colour
16 Amps
Mauve Heater unit
Stoplamps
Accessory terminal
Glove-box lighting
E
Direction indicators
Windscreen washers and wipers
Ignition
Horns
switch
Winding for heater unit relay
Winding for window-winder relay
16 Amps
Red
Rheostat
- speed0 lighting
Instrument panel : ( Battery meter
( thermal voltmeter ) - Brake pad
wear warning lamp.-Fuel gauge- Oil pressure and temp.
warning lamps - Hydraulic fluid pressure warning lamp-
Coolant temp. warning lamp )
Interior lamp
Boot lamp
Cigar lighter
Clock
16 Amps
Green
Hazard warning
E
Voltage regulator
Ignition
Reversing lamps
switch
Heated rear window element
Handbrake warning lamp
Relay for window
winder
16 Amps
White
R.H. switch u,R.H. window-winder
L.H. switch -
L.H. window-winder
Lighting switch
Ashtray lighting
Lighting for cigar-lighter
Lighting for heat’er control
Clock
10 Amps Yellow
Lighting for
Battery meter and
instrument panel
E.
Odometers
Sidelamp warning lamp
L.H. sidelamps front and rear
10 Amps
Blue
R,H. sidelamps front and rear
Number plate lamp
