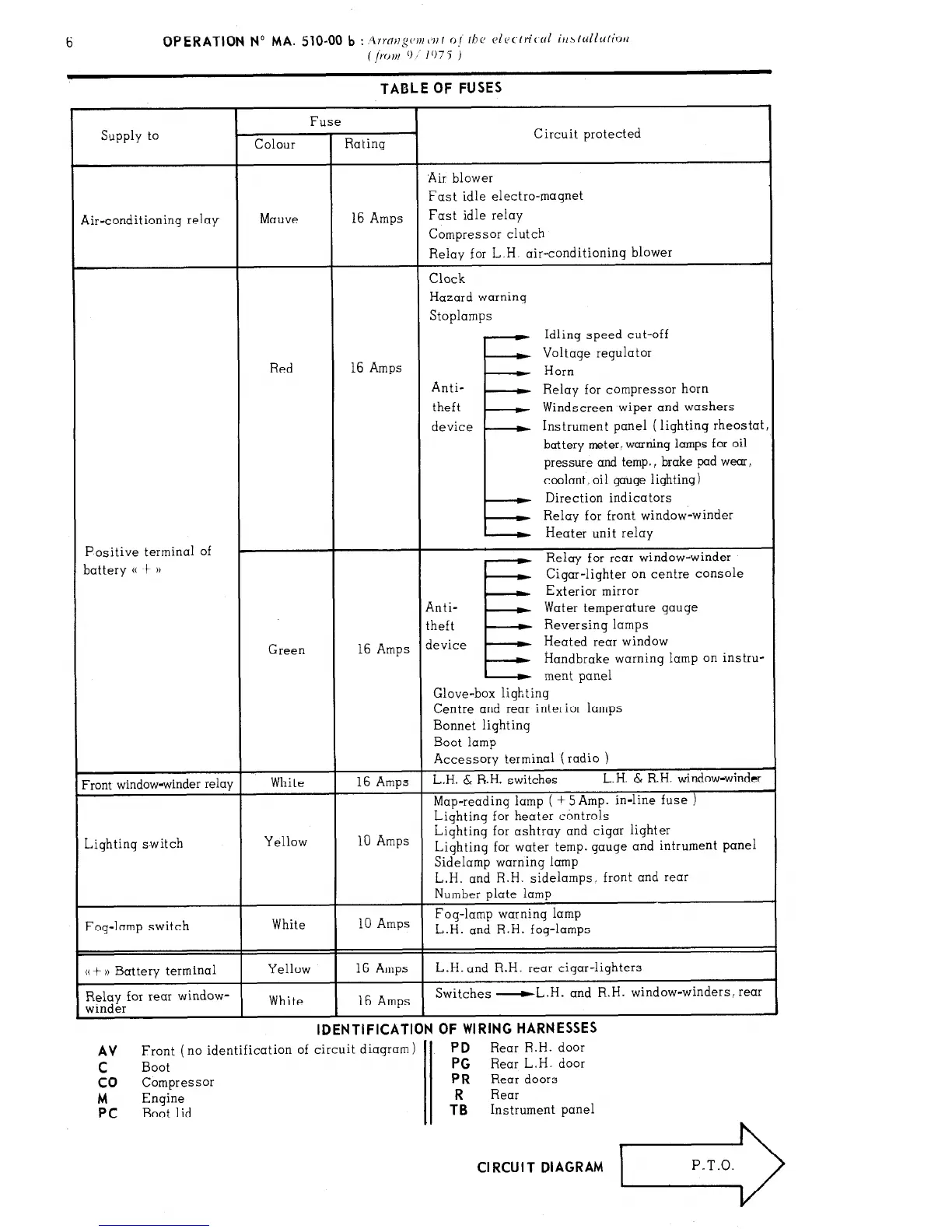

TABLE OF FUSES
Supply to
Fuse
Colour
Rating
Circuit protected
‘Air blower
Fast idle electro-magnet
Air-conditioning relay
Mauve 16 Amps
Fast idle relay
Compressor clutch
Relay for L.H. air-conditioning blower
Positive terminal of
battery (( t ))
Red
Green
Clock
Hazard warning
Stoplamps
Idling speed cut-off
Voltage regulator
16 Amps
I’
Horn
Anti-
Relay for compressor horn
theft Windscreen wiper and washers
device
Instrument panel (lighting rheostat
battery meter. warning lamps for oil
pressure and temp., brake pad wear,
coolant, oil gauge lighting)
Direction indicators
Relay for front window-winder
Heater unit relay
E
Relay for rear window-winder
Cigar-lighter on centre console
Exterior mirror
Anti- Water temperature gauge
theft Reversing lamps
16 Amps device
Heated rear window
Handbrake warning lamp on instru-
ment panel
Glove-box lighting
Centre and rear interior lamps
Bonnet lighting
Boot lamp
Accessory terminal (radio 1
Front window-winder relay
Lighting switch
White
Yellow
16 Amps
L.H. & R.H. switches
L.H. 6 RH. window-winder
Map-reading lamp ( + 5Amp. in-line fuse )
Lighting for heater controls
10 Amps
Lighting for ashtray and cigar lighter
Lighting for water temp. gauge and intrument panel
Sidelamp warning lamp
L.H. and R.H. sidelamps. front and rear
Number plate lamp
Fog-lamp switch
White
10 Amps
Fog-lamp warning lamp
L.H. and R.H. fog-lamps
(( + 1) Battery terminal
Relay for rear window-
winder
Yellow
White
16 Amps L.H. and R.H. rear cigar-lighters
16 Amps
Switches
-L.H. and R.H. window-winders, rear
-.. -- . ..-...- . . . -..---m-
IDENTIFICATION
OF WIRING HARNt33t3
AV
Front ( no identification of circuit diagram)
PD
Rear R.H. door
C
Boot
PG
Rear L.H. door
co Compressor
PR
Rear doors
M Engine
Rear
PC
Boot lid
TRS
Instrument panel
Cl RCUI T DIAGRAM
L3
P.T.O.
