10
OPERATION No MA. 510-00 b : A
,tnrt <rn~~,,f 01 fhl, ,.I< rlrirnl irlslnllatiurl
g ’
( O.fjtft 91 107 5 )

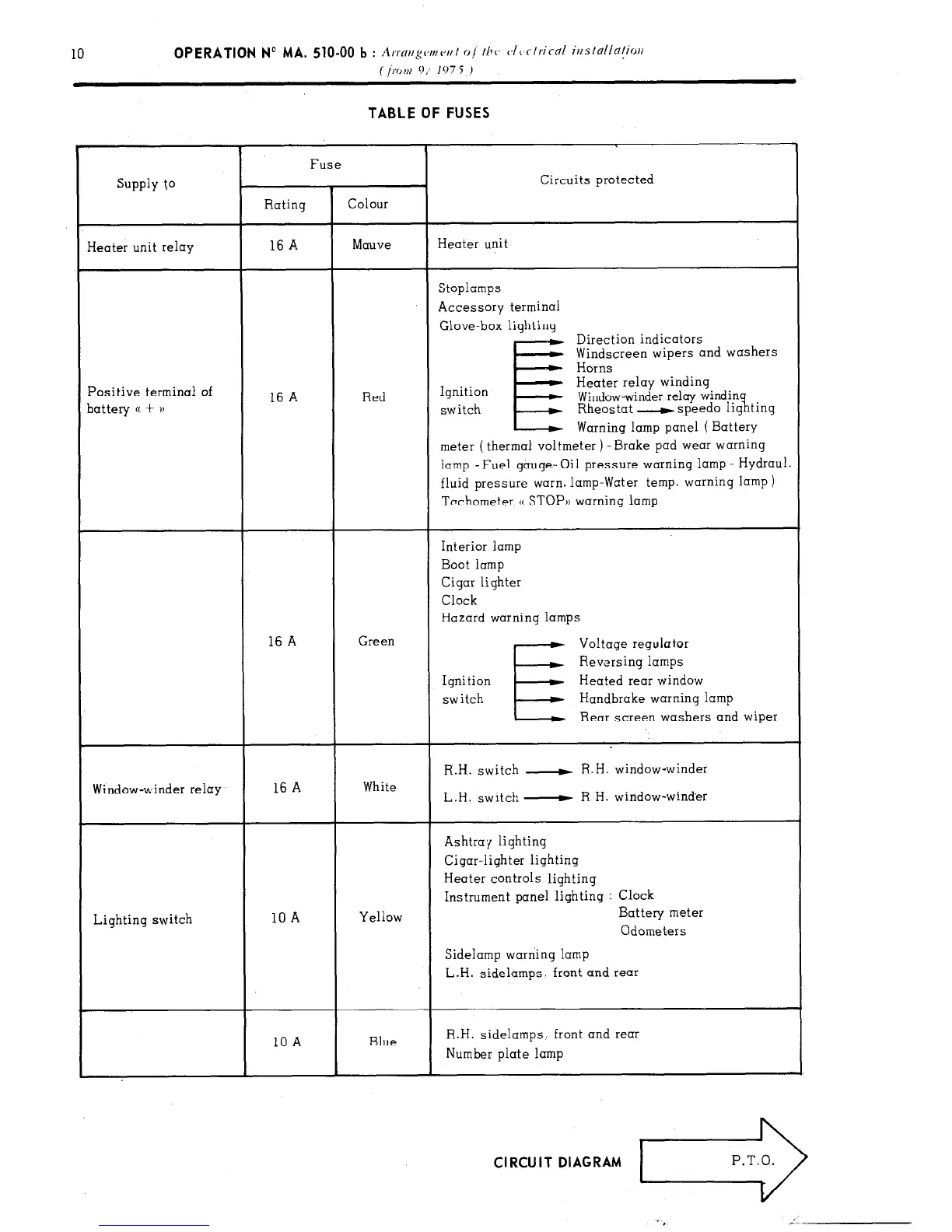

TABLE OF FUSES
Supply to
I
Fuse
Circuits protected
Rating
Colour
Heater unit relay
16 A
Mauve Heater unit
Positive terminal of
battery (( + u
16
A
Red
Stoplamps
Accessory terminal
Glove-box lighting
E
Direction indicators
Windscreen wipers and washers
Horns
Ignition
SW itch
Warning lamp panel ( Battery
meter ( thermal voltmeter ) -Brake pad wear warning
lamp -Fuel gauge- Oil pressure warning lamp - Hydraul.
fluid pressure warn. lamp-Water temp. warning lamp )
Tachometer, (( STOP)) warning lamp
16 A Green
Interior lamp
Boot lamp
Cigar lighter
Clock
Hazard warning lamps
Voltage regulator
Reversing lamps
Ignition Heated rear window
switch
E
Handbrake warning lamp
Rear screen washers and wiper
Window-winder relay
Lighting switch
16 A
10 A
White
Yellow
R.H. switch -
R.H. window-winder
L.H. switch -
R H. window-winder
Ashtray lighting
Cigar-lighter lighting
Heater controls lighting
Instrument panel lighting : Clock
Battery meter
Odometers
Sidelamp warning lamp
L.H. sidelamps, front and rear
10 A
Blue
R.H. sidelamps. front and rear
Number plate lamp
Cl RCU IT DIAGRAM
To Next Page
