Op. MA. 510-00 b
19

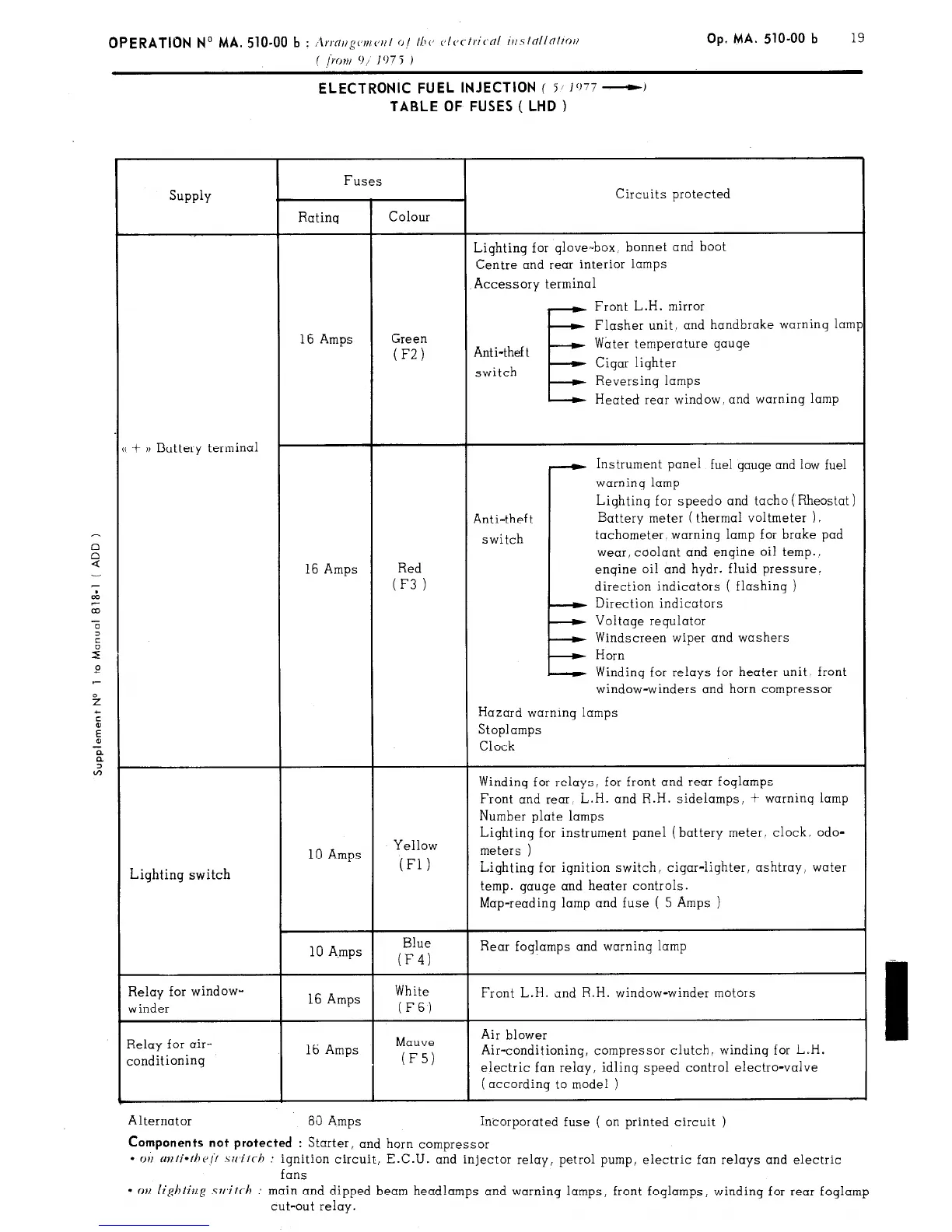

ELECTRONIC FUEL INJECTION ( i/ 1077 -)
TABLE OF FUSES ( LHD )
SUPPlY
Fuses
Circuits protected
Ratinq
Colour
Lightinq for qlove-box, bonnet and boot
Centre and rear interior lamps
Accessory terminal
Front L.H. mirror
16 Amps
Green
(F-2)
Flasher unit. and handbrake warninq lam1
Anti-theft
E
Water temperature gauge
switch
Cigar lighter
Reversinq lamps
Heated rear window, and warning lamp
+ )) Battery terminal
Instrument panel fuel gauge and low fuel
warninq lamp
Anti-theft
switch
Liqhtinq for speed0 and tacho ( Rheostat )
16 Amps
(RFe3d)
_
Battery meter (thermal voltmeter ).
tachometer, warning lamp for brake pad
wear, coolant and engine oil temp. 1
enqine oil and hydr. fluid pressure.
direction indicators ( flashing )
Direction indicators
Voltage requlator
Windscreen wiper and washers
Horn
Windinq for relays for heater unit front
window-winders and horn compressor
Hazard warning lamps
Stoplamps
Clock
Winding for r-elays, for front and rear foglamps
Front and rear, L.H. and R.H. sidelamps, + warninq lamp
Number plate lamps
Lighting switch
10 Amps
Yellow
Liqhtinq for instrument panel (battery meter. clock. odo-
meters )
(Fl) Lighting for iqnition switch, cigar-lighter, ashtray, water
temp. gauge and heater controls.
Map-reading lamp and fuse ( 5 Amps )
10 A.mps
Blue
(F4)
Rear foglamps and warninq lamp
Relay for window-
winder
16 Amps
White
Front L.H. and R.H. window-winder motors
(FE)
Relay for air-
conditioning
16 Amps
Mauve
(F5)
Air blower
Air-conditioning, compressor clutch, windinq for L.H.
electric fan relay, idlinq speed control electro-valve
( according to model )
Alternator
81) Amps
Incorporated fuse ( on printed circuit )
Components not protected
: Starter, and horn compressor
- OII anti-theit .switrh :
ignition circuit, E.C.U. and injector relay, petrol pump, electric fan relays and electric
fans
- cm lighting switch :
main and dipped beam headlamps and warning lamps, front foglamps, winding for rear foglamp
cut-out relay.
