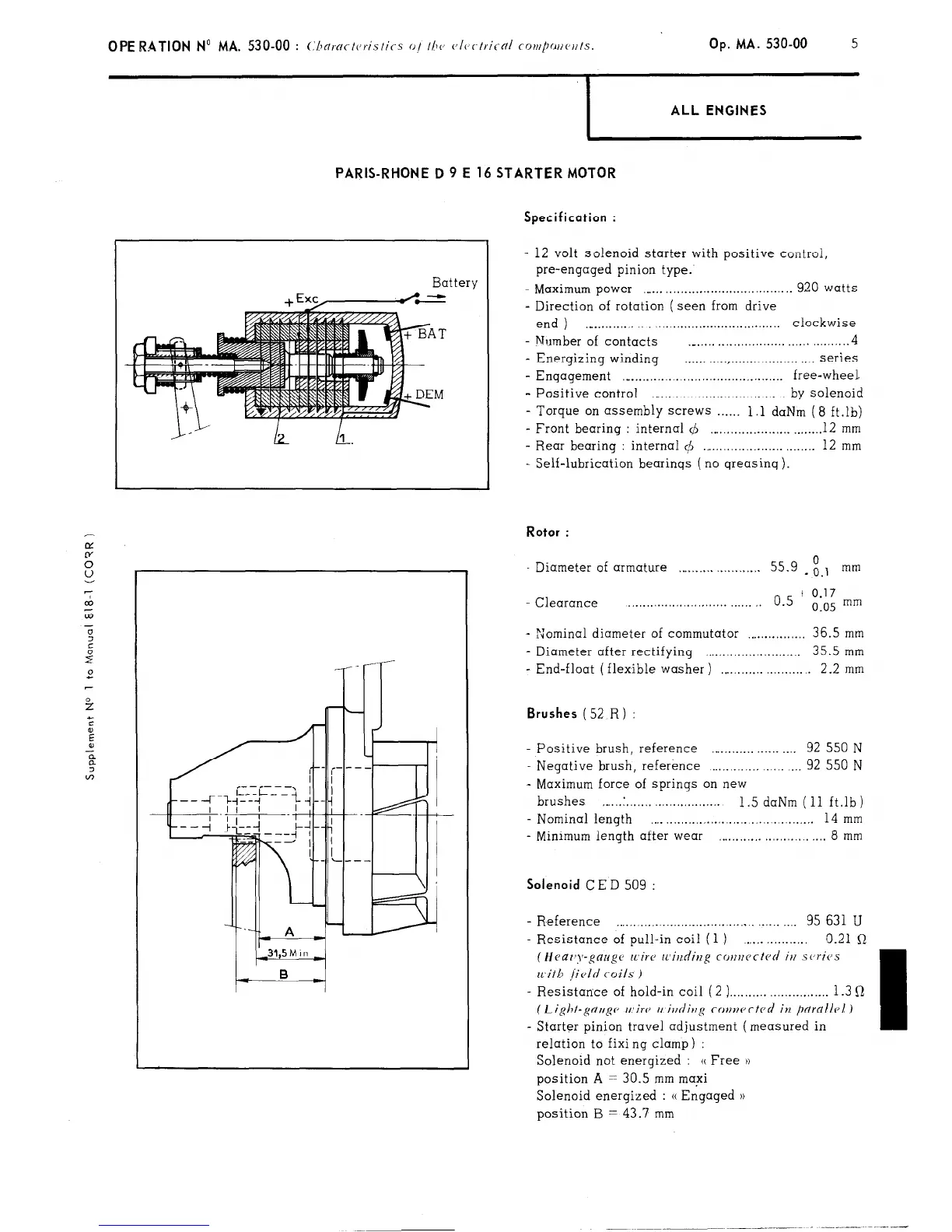

CITROEN CX 2000 - Page 352

1 ALL ENGINES
PARIS-RHONE D 9 E 16 STARTER MOTOR
Battery
Specification :
- 12 volt solenoid starter with positive control,
pre-engaged pinion type.
- Maximum power ,..... ,................................. 920 watts
- Direction of rotation ( seen from drive
end ) ., . . . ._..,.,...,.,.....................
clockwise
- Number of contacts __..... . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
- Energizing winding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
series
- Enqagement ,“...,.,.........,.,.............,.........
free-wheel
- Positive control ._.,.,.,.,.,.,.......,.,.,....... . by solenoid
- Torque on assembly screws . . . . . . 1.1 daNm (8 ft.lb)
- Front bearing : internal 4 ,..._.,.....,...,.,.,. _....._. 12 mm
- Rear bearing : internal $I ._...,...,...,.,.,.,. ,.....,. 12 mm
- Self-lubrication bearings ( no greasing ).
Rotor :
Diameter of armature . . . . . . . . . . . . . . . 55.9 - ;.I mm
- Clearance _.......................... . . . . . . 0.5
’ 0.17
0.05 mm
- “Jominal diameter of commutator . . . . . . . . . . . . . . . . 36.5 mm
- Diameter after rectifying ,.....,................... 35.5mm
- End-float (flexible washer) ,....._.,... . . . 2.2 mm
Brushes (52 R) :
- Positive brush, reference . . . . . . . . . . . . . . 92 550 N
- Negative brush, reference ,...,.,.,.,.,. ,.,.,. . . . 92 550 N
- Maximum force of springs on new
brushes ,... ..I. . ,. ,. . . . ..,......... 1.5 daNm (11 ft.lb)
- Nominal length
,... . . . . . . .., . . . . . . . .,.........
14 mm
- Minimum length after wear . . . . . . . ..,......... 8 mm
Solenoid CED 509 :
- R.eference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ,.,. 95 631 U
- Resistance of pull-in coil (1 ) . . . . . 0.21 Q
(Heaz’y-gauge wire IL’i?/dirzg cotlucctcd iu .sc,ricJs
with field coils )
- Resistance of hold-in coil ( 2 ) . . . . . . . . . . . . . . . . . . . . . . . . . . 1.3 Q
( Light-gc7zigc wire’ 11 itlrliug conwctcrl in pdrallrl )
- Starter pinion travel adjustment (measured in
relation to fixi ng clamp ) :
Solenoid not energized : (( Free ))
position A = 30.5 mm maxi
Solenoid energized : (( Engaged 1)
position B = 43.7 mm
