4 OPERATION No MA. 530-O :
Cbrckivp thr elrrfriral romponrwts

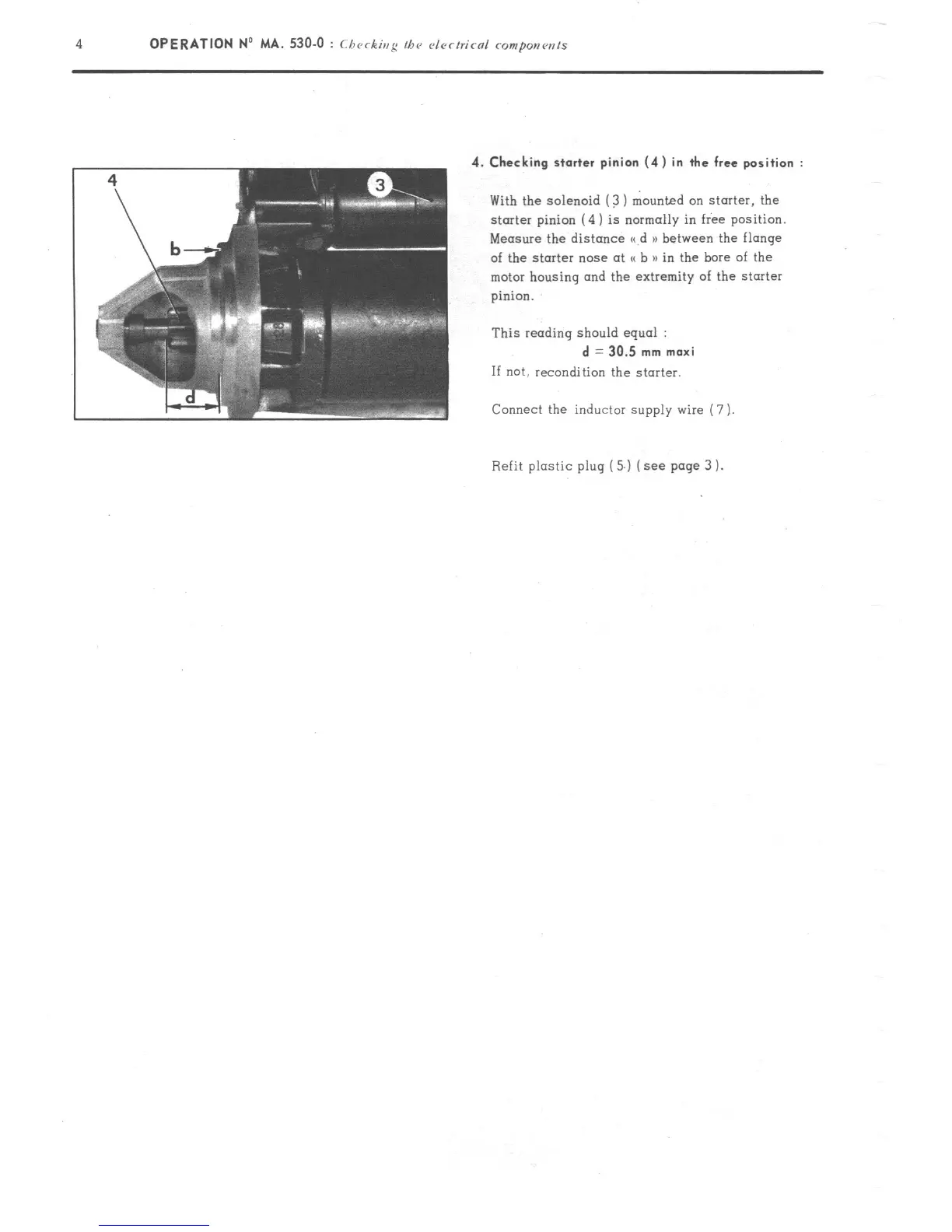

4. Checking starter pinion (4) in the free position :
With
the solenoid (3 ) mounted on starter, the
starter pinion (4 ) is normaHy in free position
Measure the distance o d n between the flange
of the starter nose at u b H in the
bore
of the
motor housing and the extremity of the starter
pinion.
This reading
should
equal :
d = 30.5 mm
maxi
If not, recondition the starter.
Connect the inductor supply wire (I I
Refit plastic plug (5.1 (see page 3 1.
