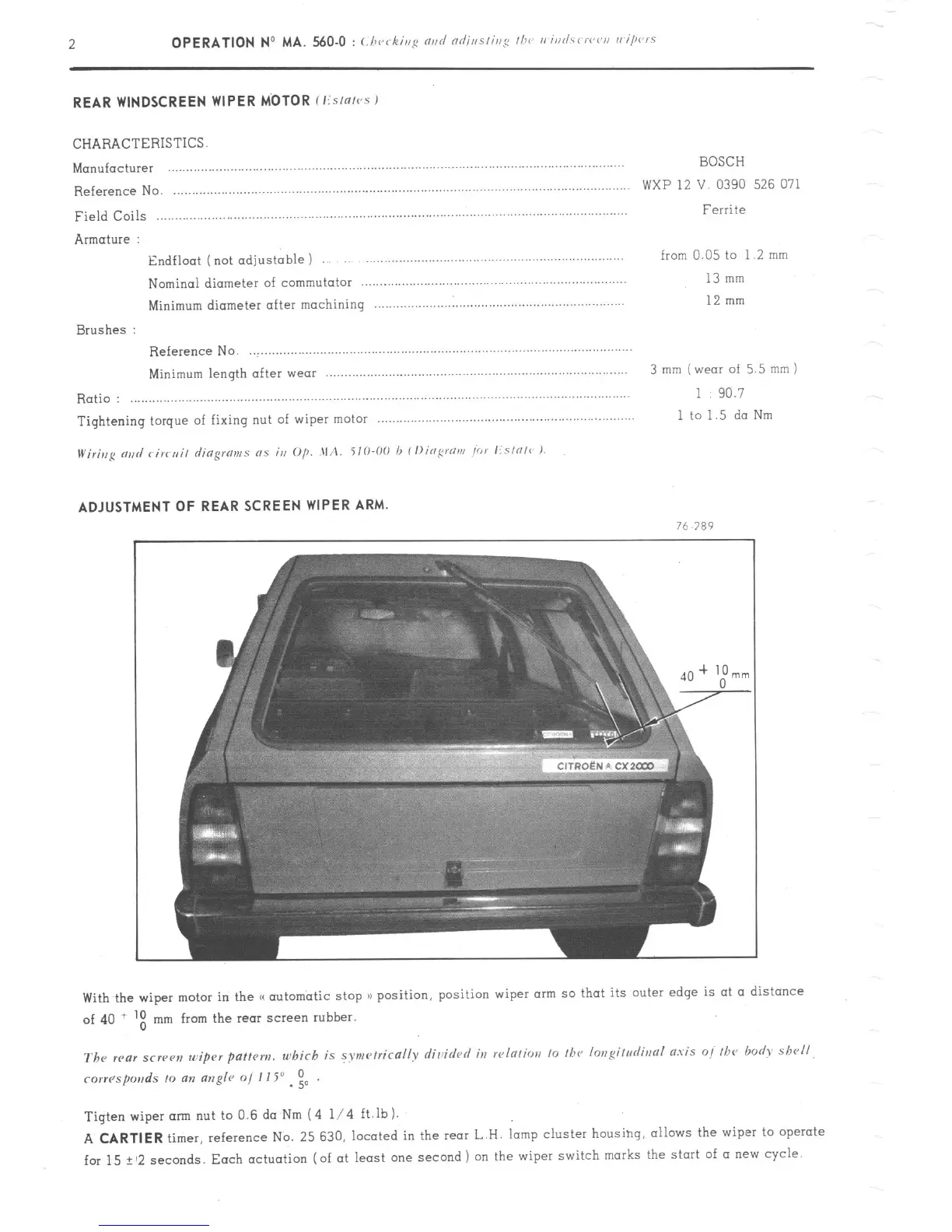

2 OPERATION No MA. 560-O : (:/
ivc ,,,* our/ nd;,,s/ii,~ ,,w I, ,,i</\< I??ii ii i/w,.5
k’
REAR WINDSCREEN WIPER MOTOR (lislnlvs J
CHARACTERISTICS.
Mon”facturer ..,..._....,...........,....................................................................................................
BOSCH
~ef,yence
~0. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .... WXP
12
V 0390
526 071
Field Coils
. . . . . . . . . . . . . . . . . .._............................................................................................................
Ferrite
Armature :
Endfloat ( “ot adj”stable ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . from 0.05 to 1 2 mm
Nominal diameter of commutator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 mm
Minimum diameter after machining . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 mm
Brushes :
&ference
No. ,.: . . . . . . . . . . . . . . . . . .._.................................................................................
Minimum length after wear ,.,......._................,...................................................... 3 mm ( wear of 5.5 mm )
Ratio :
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ................ 1 90.7
Tightening torque of fixing nut of wiper motor .,.....,..,................................................~.......... 1 to 1.5 da Nm
H/;r;,,p nj,d c;K,J;, djogmms 0.5 in O/j. .\1,2. i10-00 h Il)ing:rtirn Ior lirl0l~~ )
ADJUSTMENT OF REAR SCREEN WIPER ARM.
n
Tigtenwiperarm nut to0.6daNm (4 l/4 ft.lb).
A
CARTIER
timer, reference No. 25 630, located in the IMT L.H. lamp cluster housihg, allows the wiper to operate
for 15 ? ‘2 seconds. Each actuation (of at least one second ) on the wiper switch marks the start of (I new cycle
