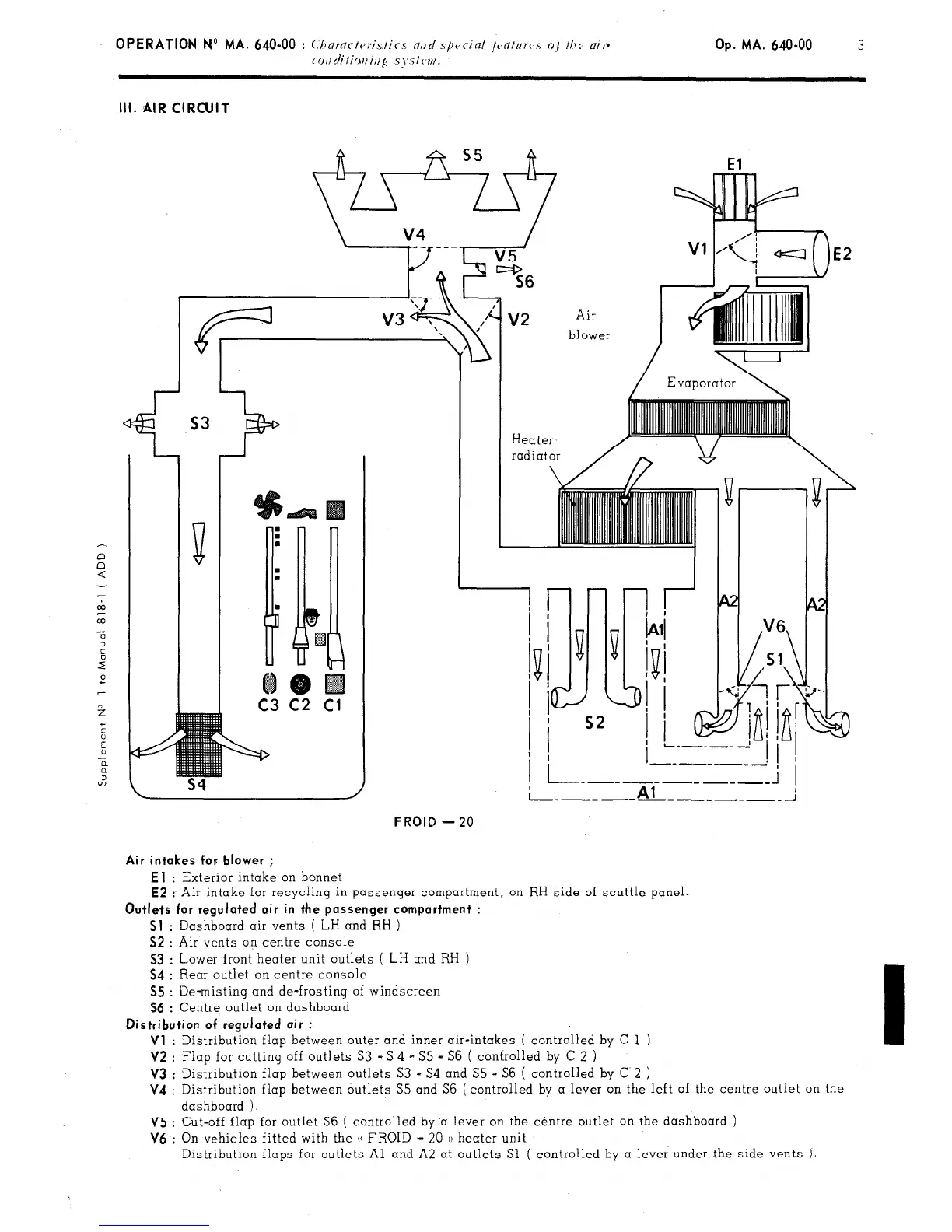

III. AIR CIRCUIT
Heater
radiator
El
E2
Air
blower
I-
FROID - 20
__------- ----- _;
Al
E2
: Air intake for recycling in passenger compartment, on RH side of scuttle panel.
Outlets for regulated air in the passenger compartment :
Sl
: Dashboard air vents ( LH and RH )
52 : Air vents on centre console
Air intakes for blower ;
El : Exterior intake on bonnet
53
: Lower front heater unit outlets ( LH and RH )
54 : Rear outlet on centre console
55 : De-misting and de-frosting of windscreen
56 : Centre outlet on dashboard
Distribution of regulated air :
Vl
: Distribution flap between outer and inner air-intakes ( controlled by C 1
V2
: Flap for cutting off outlets S3 -S 4 - S5 - S6 ( controlled by C 2 )
V3
: Distribution flap between outlets S3 - S4 and S5 - S6 ( controlled by C 2
V4 : Distribution flap between outlets S5 and S6 (controlled by a lever on the left of the centre outlet on the
dashboard ).
V5 : Cut-off flap for outlet S6 ( controlled by ‘a lever on the centre outlet on the dashboard )
V6
: On vehicles fitted with the u FROID - 20 )I heater unit
Distribution flaps for outlets Al and A2 at outlets Sl ( controlled by a lever under the side vents ),
