OPERATION No
MA. 00-855 : l:itting the side jirlis/Ji>lg strips.
op. MA. 00-855
1

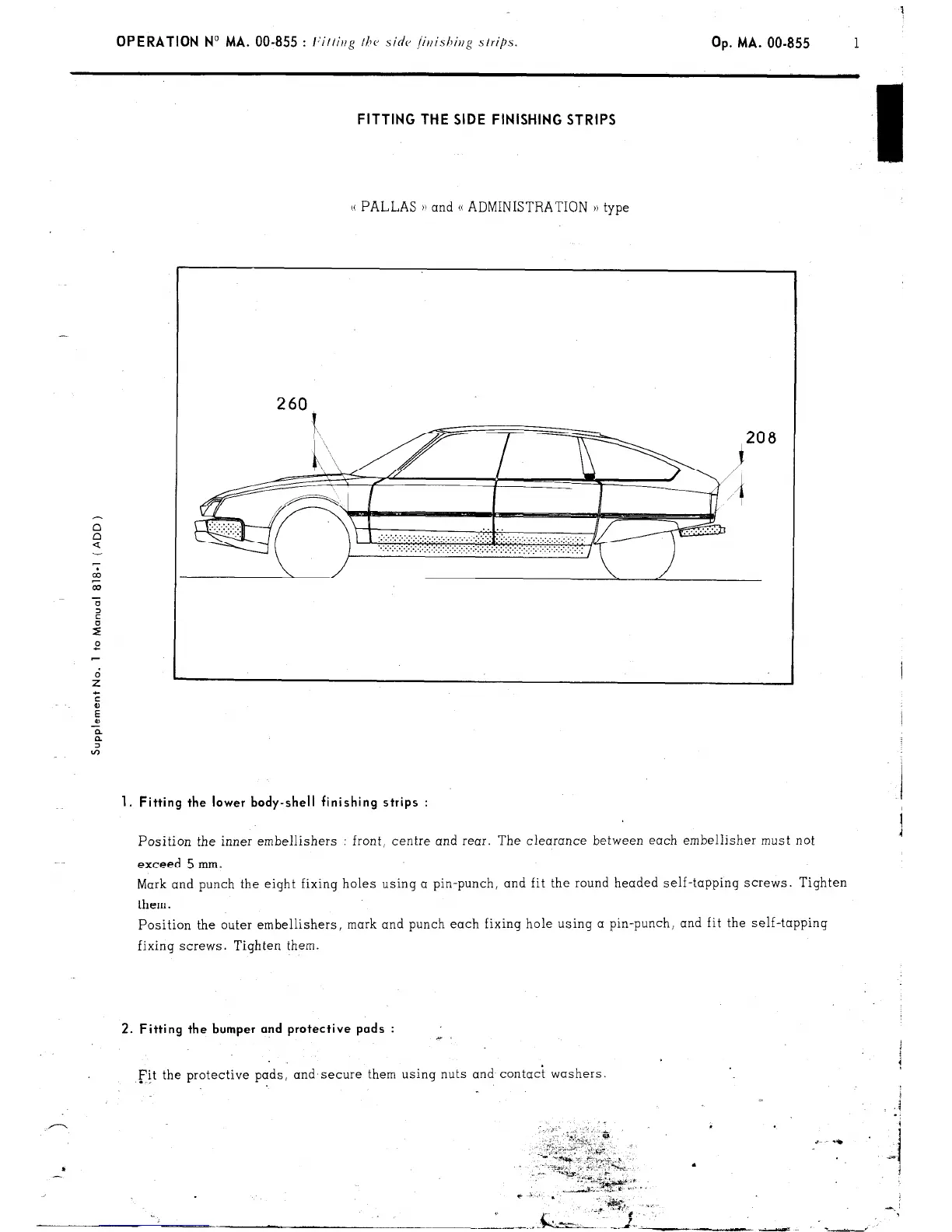

FITTING THE SIDE FINISHING STRIPS
u PALLAS )) and (( ADMINISTRATION u type
260
1. Fitting the lower body-shell finishing strips :
Position the inner embellishers : front, centre and rear. The clearance between each embellisher must not
exceed 5 mm.
Mark and punch the eight fixing holes using
a
pin-punch, and fit the round headed self-tapping screws. Tighten
them.
Position the outer embellishers, mark and punch each fixing hole using a pin-punch, and fit the self-tapping
fixing screws. Tighten them.
2. Fitting the bumper and protective pads :
e
I
Fit the protective pads, and secure them using nuts and contaci washers.
i
-
1
i
.*
-1
- i
