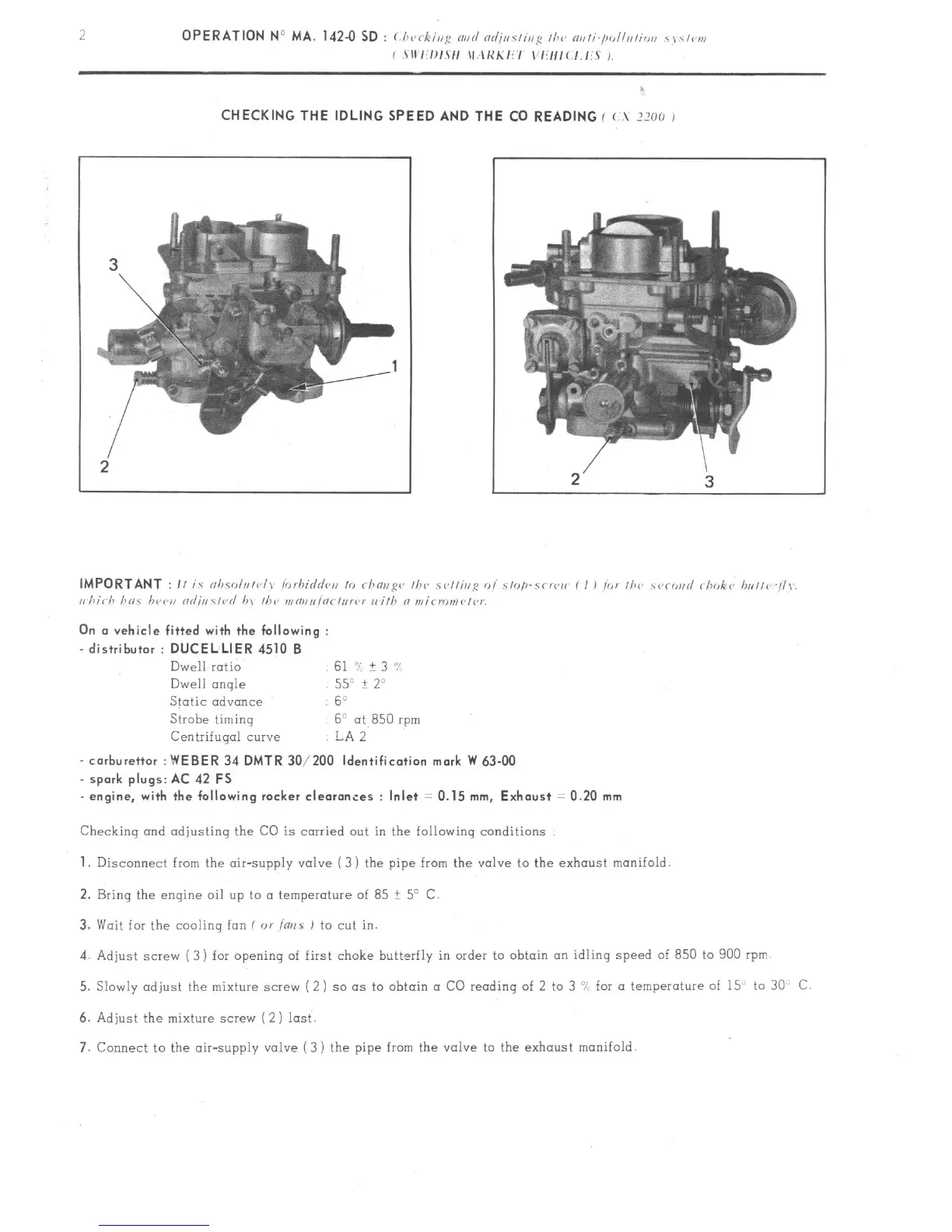

OPERATION No MA. 142.0 SD : (./ )I c ,,,s m,d nd;,,s/is~~ /A? Ni/li-/Joll,lli,,ill I\ \/i’V, b’
/ Sll l:l~/sl1 lI.\KKI:I v1:/1/c l.JT\ I,
CHECKING THE IDLING SPEED AND THE CO READING I (..\ JXO J
On cr vehicle fitted with the following :
-distributor : DUCELLIER 4510 B
Dwell ratio 61 7: + 3 ‘Y
Dwell angle 550 + 2”
Static advance 6”
Strobe timinq
6” at 850 rpm
Centrifuqal cuwe IA 2
- carburettor : WEBER 34 DMTR 30/200 Identification mark W 63-00
spark plugs: AC 42 FS
- engine, with the following rocker clearances : Inlet = 0.15 mm, Exhaust = 0.20 mm
Checking and adjusting the CO is carried out in the following conditions
1.
Disconnect from the air-supply valve ( 3) the pipe from the valve to the exhaust manifold
2. Bring the engine oil up to a temperature of 85 ? 5’ C
3. Wait for the cooling ion ( 01
ims J
to cut in.
4. Adjust screw ( 3) for opening of first choke butterfly in order to obtain on idling speed of 850 to 900 rpm
5. Slowly adjust the mixture screw (2) so (IS to obtain a CO reading of 2 to 3 “L for a temperature of 15” to 30 C
6. Adjust the mixture screw (2 ) lost
7. Connect to the air-supply valve (3 ) the pipe from the valve to the exhaust manifold.
