77 2023-09-22 SM-A63469-A/2
<4 bit binary double selection (PRM36=2)>
Same as in <4 bit BCD double selection (PRM36=1: default setting)>, Bit 0 to 3 (Input signal 1 -
bit 0 to 3 / input data byte 0 - bit 0 to 3) for program selection input enables to set the second
and first digit data in this order. The number data is specified by 4 bit BCD.
Consequently, the selectable numbers of programs are 0 to 255 (FF).

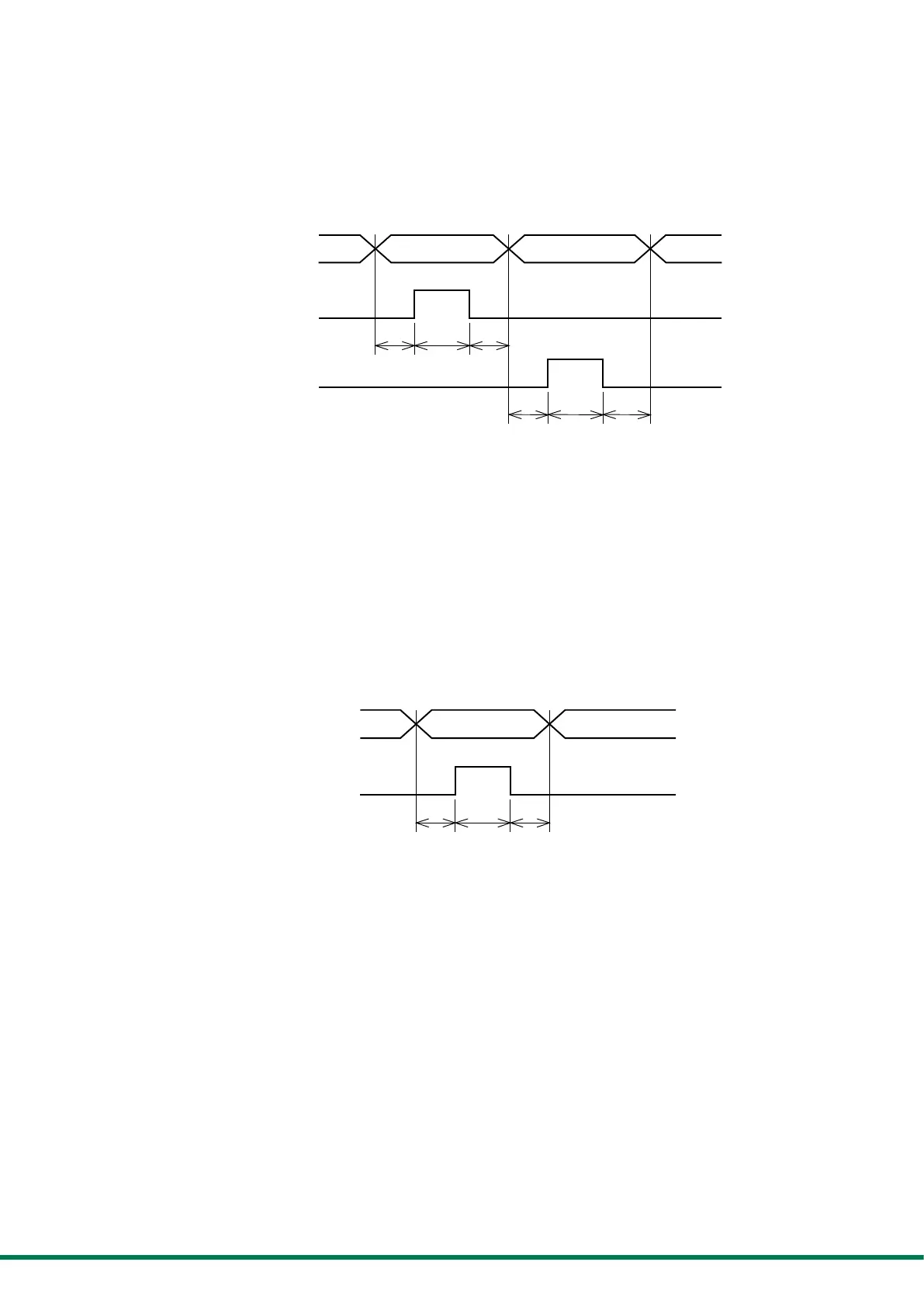

<Timing of Program Number Setting>
プログラム番号選択
ビット 0～3
二桁目データ
4 ビット バイナリ
d
e
f
a
b
c
プログラム番号設定
二桁目
プログラム番号設定
一桁目
一桁目データ
4 ビット バイナリ
a,b,d,e = 20 msec or larger c,f = 0 msec or larger
<5 bit binary single selection (PRM36=3)>
The second digit in the program setting input (Input signal 1 - bit 4 / input data byte 0 - bit 4) is
used as 4 bit of program number selection input.
Using 5 bit of the bit 0 to 4 for the number selection input and first digit in the program setting
input (Input signal 1 - bit 5 / input data byte 0 - bit 5) enables to select program numbers 0 to 31
(1F).
After 5 bit binary data output, turn on the first digit of the program setting input.
<Timing of Program Number Setting>
プログラム番号選択
ビット 0～4
番号データ
5 ビット バイナリ
a
b
c
プログラム番号設定
一桁目
a, b = 20 msec or larger c = 0 msec or larger
 Program number cannot be set in the following conditions:
During program execution (start input standby output (Output signal 1 - bit 10 / output data
byte 1 - bit 2) = OFF)
When the safety circuit is in operation and ready return has not been done.
When alarm 1, 2, 4, 5, 6, 8, 9, E, F or L occurs
Program No.
selection bit 0 to 3
Program No. setting,
2nd digit
Program No. setting,
1st digit
2nd-digit data
1st-digit data
4 bit binary
4 bit binary
Program No.
selection bit 0 to 4
Program No. setting,
1st digit
Number data
5 bit binary
