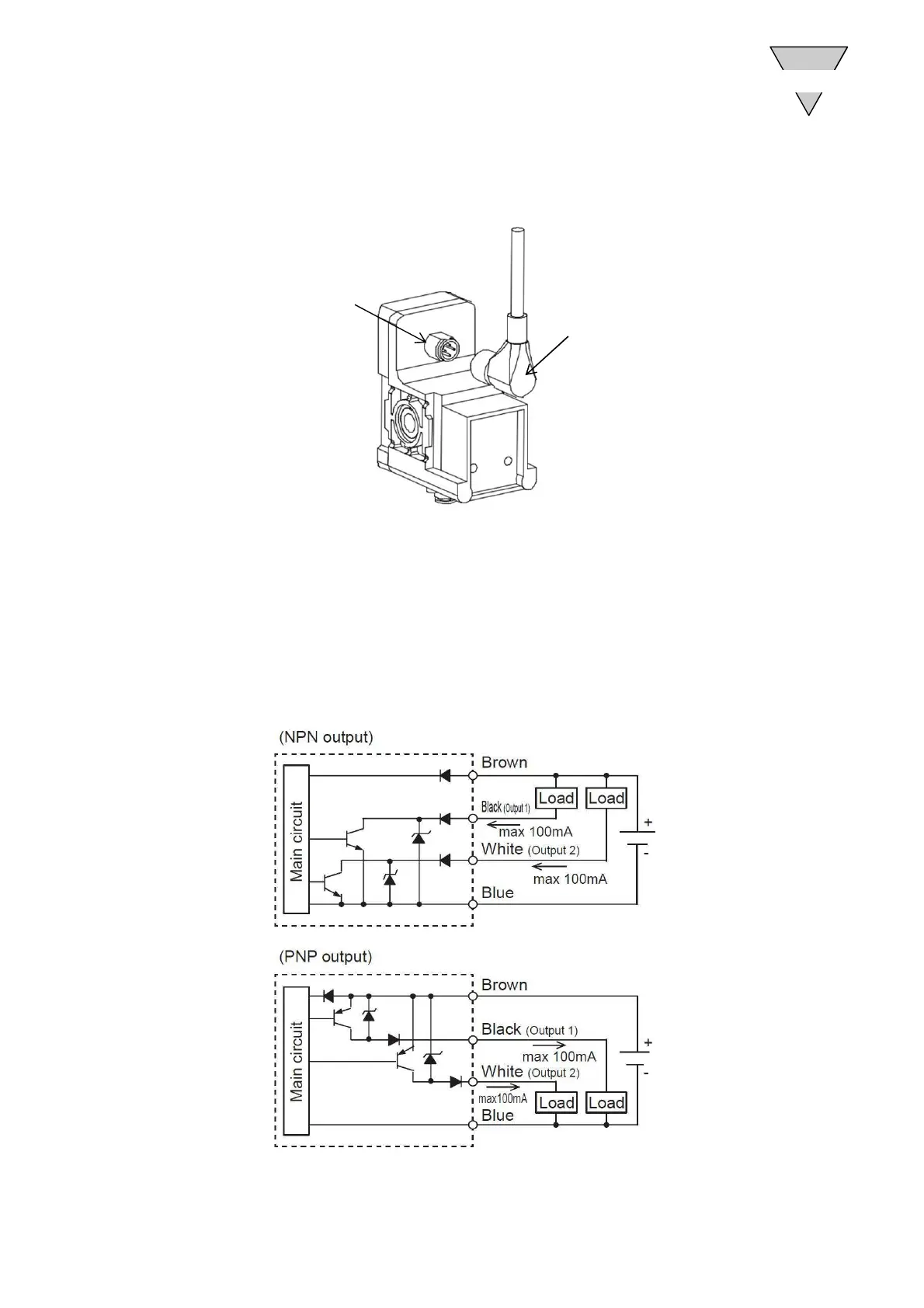

(1)ConnectthecablesideconnectortotheM12connectorpartoftheproduct.
Turntheknurledportionofthecablesideconnectorclockwise.
Connectioniscompletedwhentheknurledpartgotout.Pleasecheckwhetherthereislooseness.
(2)NPNoutputtypeandPNPoutputtypeareavailable.
Wiretheswitchbasedontheoutputasshowninlowerfigure.
Usetheloadcurrentof100mAorless.
CablesideM12connector
M12connectorpart
INSTALLATION
２
−9− [SM-P00143-A]
