Hydraulic System VOLTO TIC
5-22 10/04

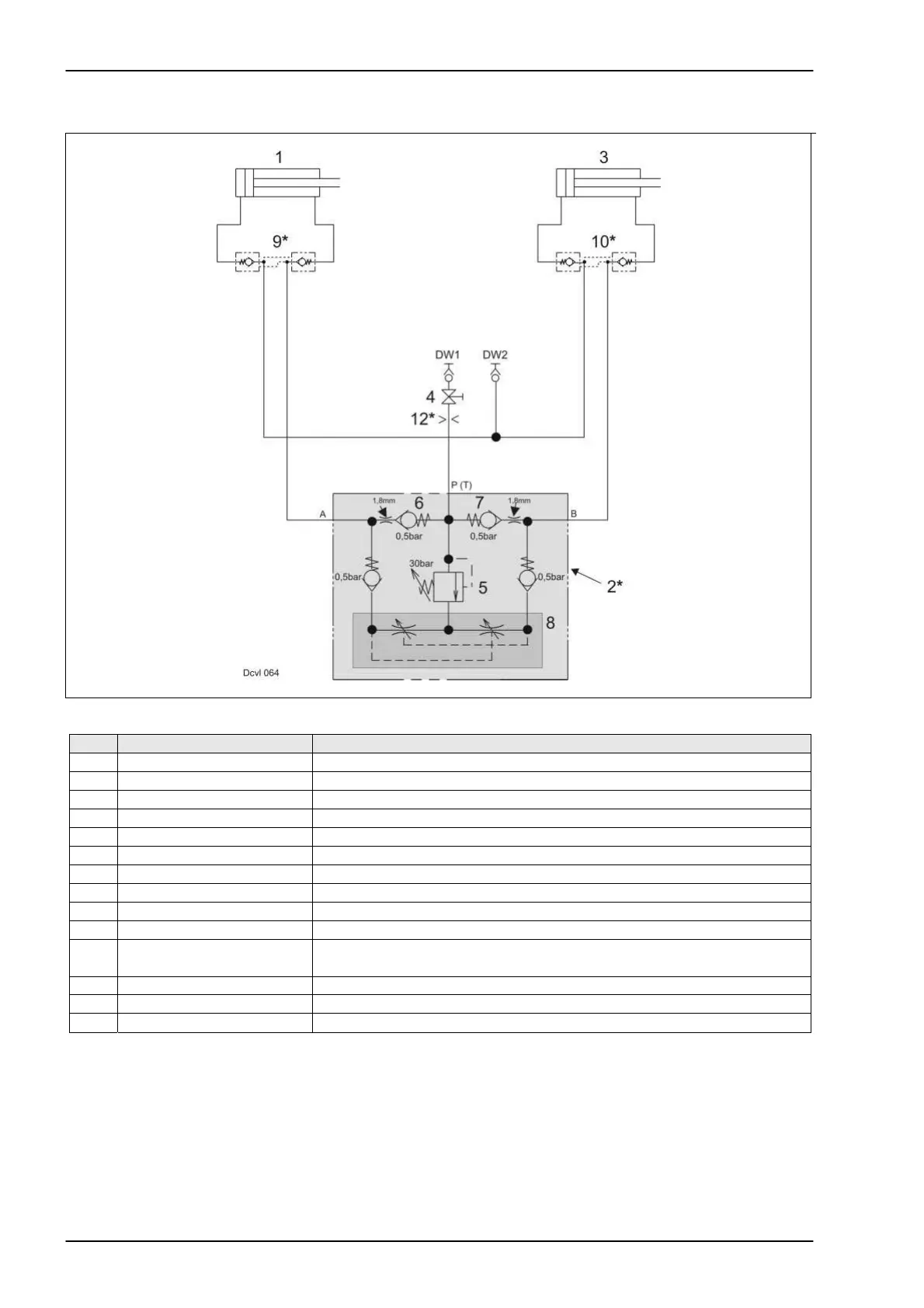

7.0 VOLTO 770, 770 H hydraulic system
Item Designation Remark
1 Hydraulic cylinder
2* Flow divider Supplied by PISTER. Only on VOLTO with synchronous raising.
3 Hydraulic cylinder
4 Shut-off tap Open while machine is in use. Close for transport.
5 Pressure relief valve Adjusting range 0.. 50 bar, ex-works setting: 30 bar
6 Non-return valve
7 Non-return valve
8 Pressure balance
9* Lock-up valve unit From 2004 model
10* Lock-up valve unit From 2004 model
12* Orifice plate Is built into VOLTO 660 without synchronous raising = flow divider (2*)
is not provided
DW1 Port of double-acting control unit
DW2 Port of double-acting control unit
