Hydraulic / Electric System DISCO 8550C (Tractor) TIC
2-6 10/04
3.0 Installation information
3.1 Timing of drives

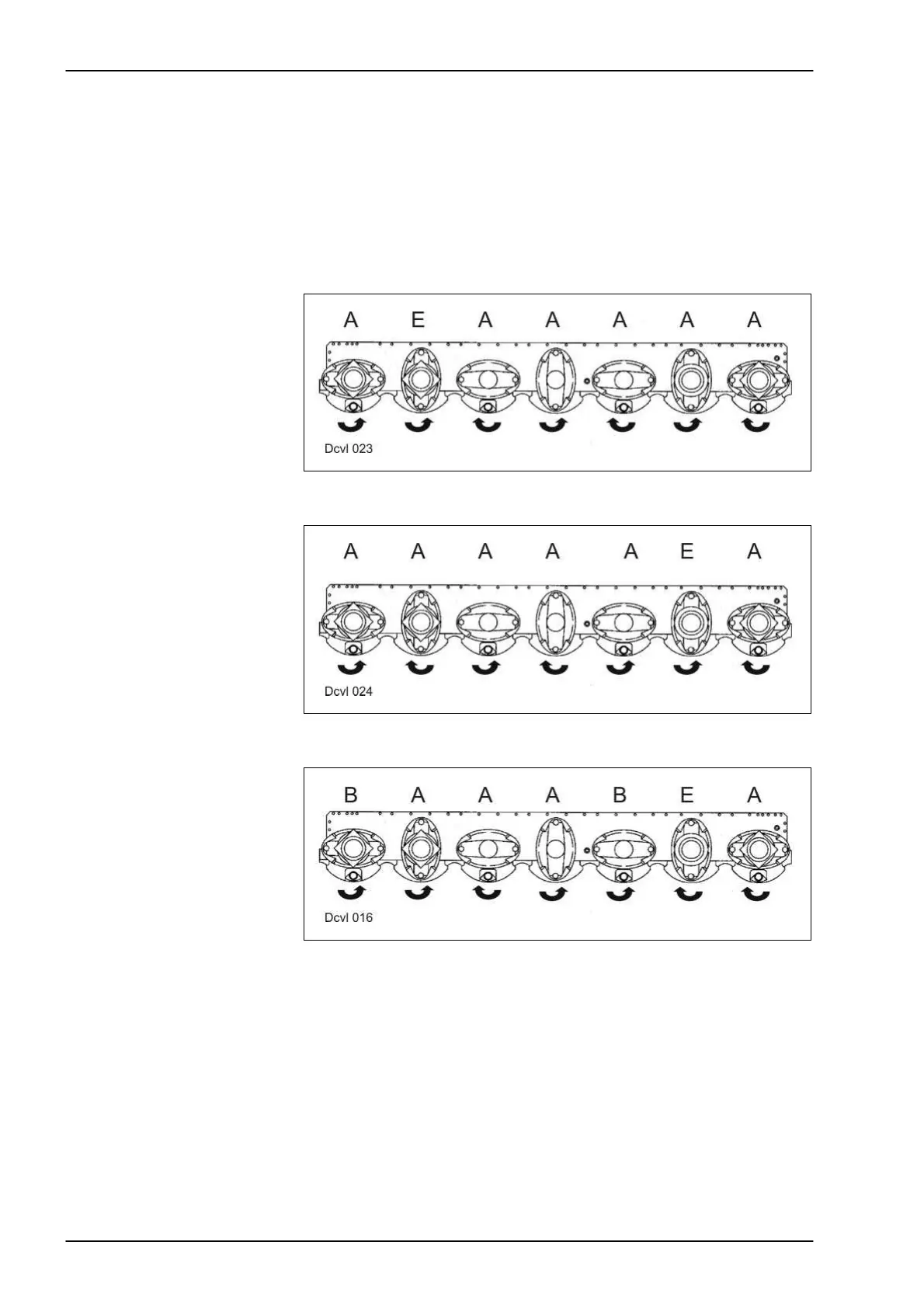

Arrangement of pinion units A and B and of drive input module E
In addition to the drive input module E, 6 rows of pinions are provided in
the mower head.
These are sub-divided into four 4 versions and two B versions. The B
versions are marked with red paint at the bottom.
Left mower unit
A Pinion unit A
E Drive input module
Right mower unit
A Pinion unit A
E Drive input module
Centre mower unit
A Pinion unit A
B Pinion unit B
E Drive input module
