TIC
LINER
Hydraulic / Electric System
10/04
4-9

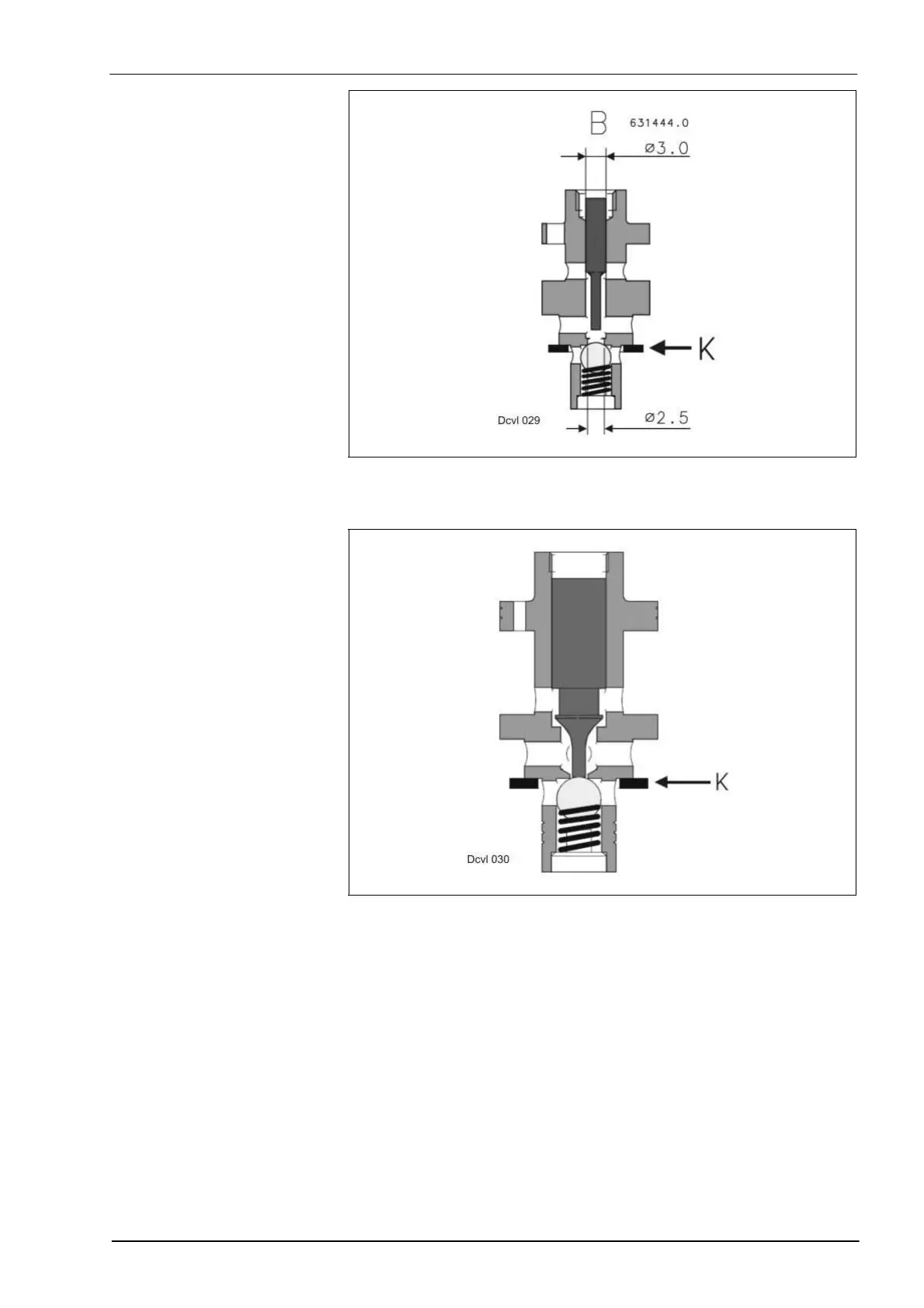

Valve inserts
The valve insert part no. 631 444.0 is built into the solenoid valves M3,
M6, M7 and M10.
The valve insert part no. 631 520.0 is built into solenoid valve M2.
Attention
When disassembling or replacing the valve insert, the copper ring
094 001.0 must be replaced.
68
70
