22

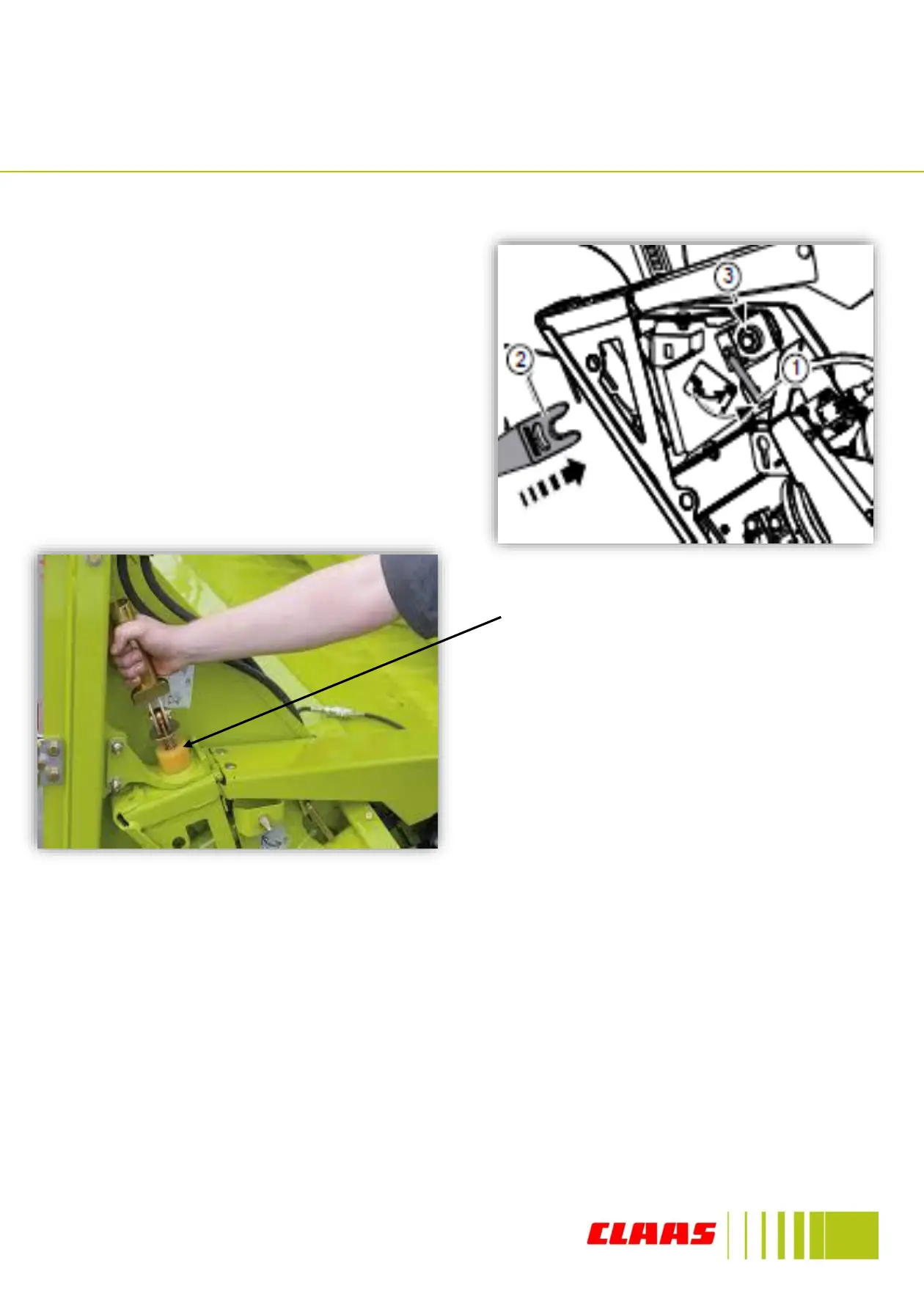

The side knife is easily attached with
a simple twist lock turnbuckle.
Both the side knife and the divider use the
new fork locating and locking device (2).
Side Knife/Divider
Installations
Simply slide into the lock and ¼ turn
the handle to lock in place (1).
Once the side knife is fitted and locked, all that is required is for two hydraulic
pipes to be connected to the quick release couplings on the side of the
cutterbar. Once these are fitted and the side knife is correctly/securely locked,
the sensor engage will now allow the cutterbar table to be varied from 600mm
to 450mm. With this type of cutterbar there is no need for a link pipe to be
connected when the side knife is removed.
