Separation (Hybrid)
26
It is important that the rotor speed is set correctly. The rotor separates the remaining
grains from the straw and the rotor speed will have an effect on straw quality. If the
rotor speed is too fast, broken straw and chaff is produced which could lead to
overloading of the sieves. Speed adjustment is carried out in CEBIS.

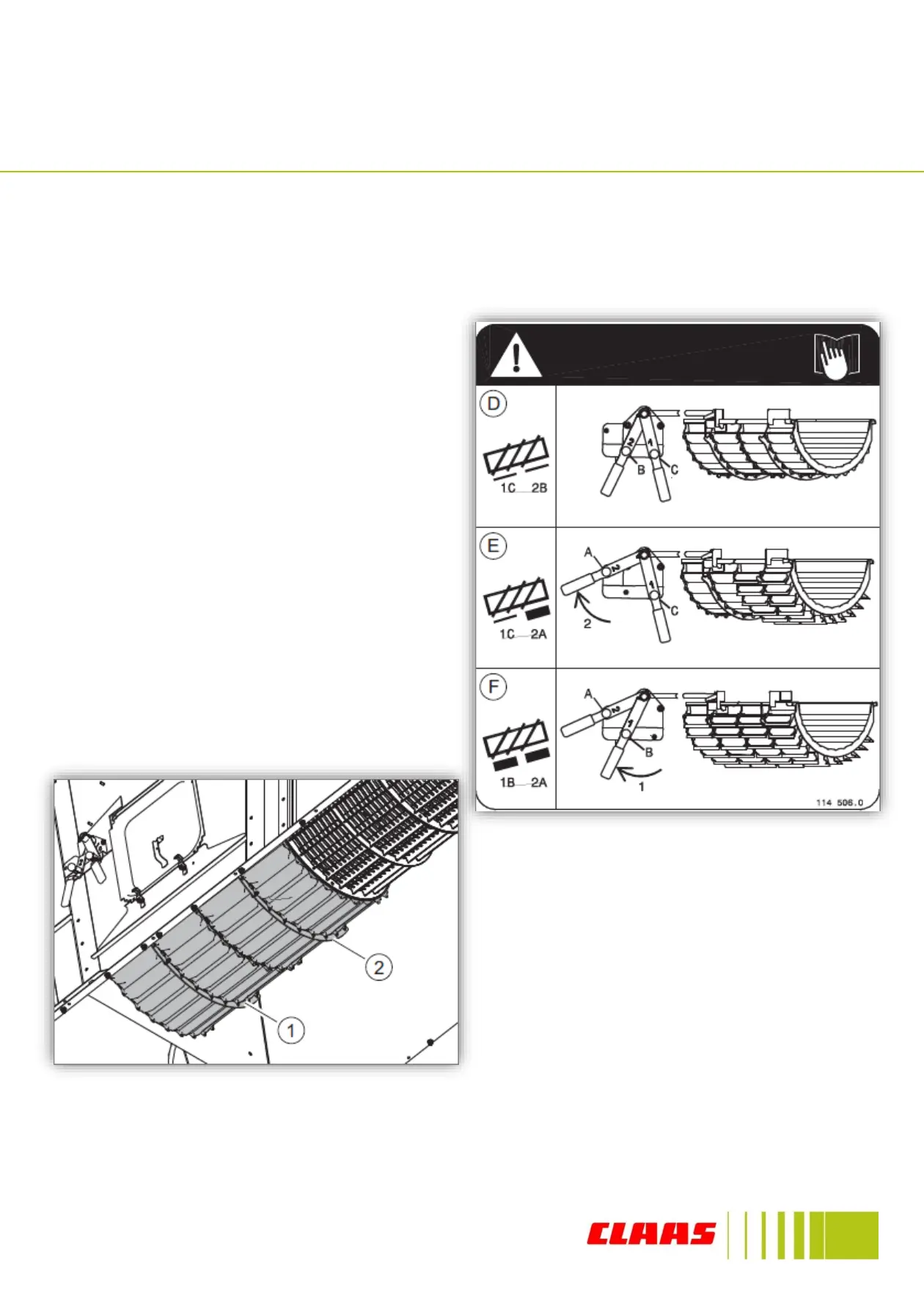

To open or close the Rotor
Cover plates use the levers on
left side of combine.
D = both cover plates closed
E = front cover plate closed,
rear cover plate open.
F = Both cover plates open.
