OPERATION/INSTALLATION MANUAL
Mixed-Mode System On Rear
Full-Range Speakers On Front
FRONT PANEL SETTINGS

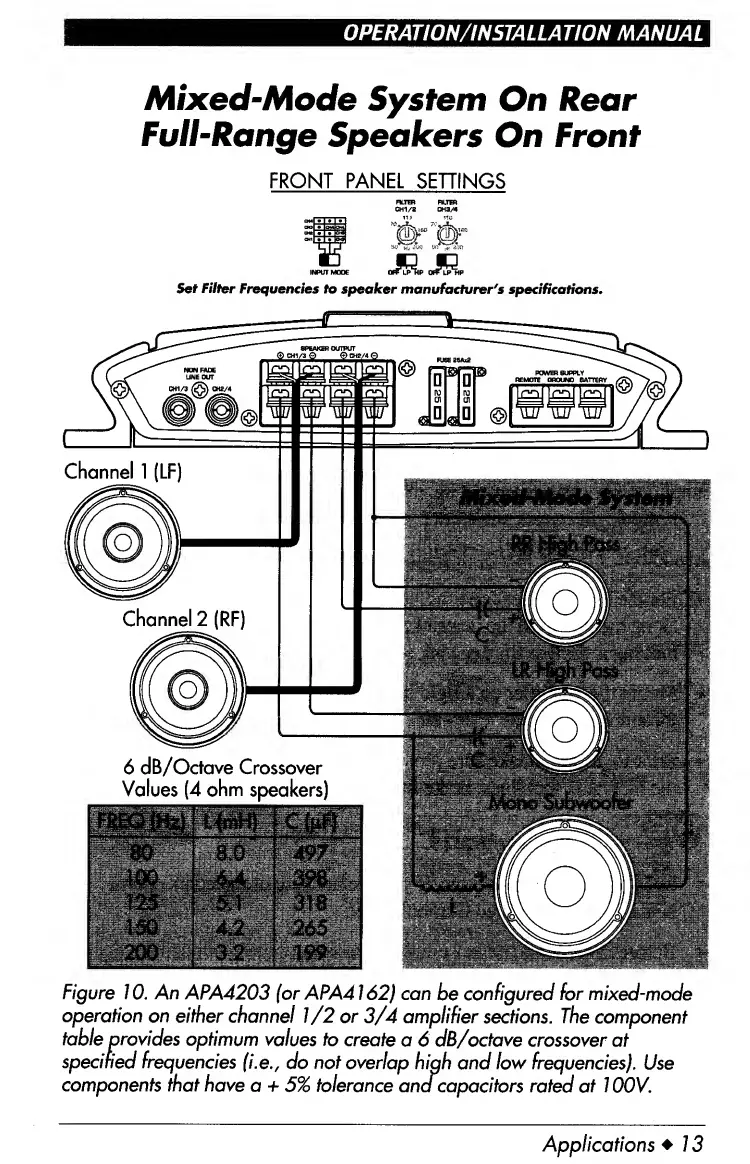

Figure 10. An APA4203 (or APA4 1 62) can be configured for mixed-mode
operation on either channel 1/2 or 3/4 amplifier sections. The component
table provides optimum values to create a 6 dB/octave crossover at
specified frequencies (i.e., do not overlap high and low frequencies). Use
components that have a + 5% tolerance ana capacitors rated at 100V.
Applications ♦ 13
