Clarion APA4203/APA4I62

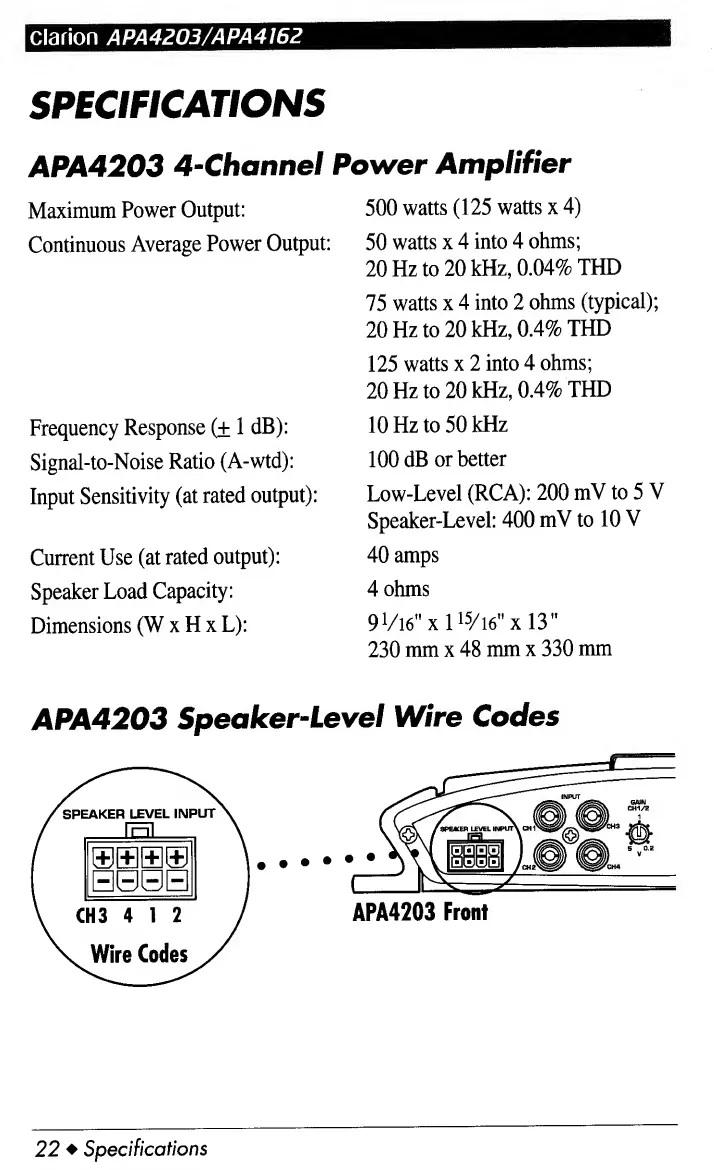

SPECIFICATIONS
APA4203 4-Channel Power Amplifier
Maximum Power Output:
Continuous Average Power Output:
Frequency Response (± 1 dB):
Signal-to-Noise Ratio (A-wtd):
Input Sensitivity (at rated output):
Current Use (at rated output):
Speaker Load Capacity:
Dimensions (W x H x L):
500 watts (125 watts x 4)
50 watts x 4 into 4 ohms;
20 Hz to 20 kHz, 0.04% THD
75 watts x 4 into 2 ohms (typical);
20 Hz to 20 kHz, 0.4% THD
125 watts x 2 into 4 ohms;
20 Hz to 20 kHz, 0.4% THD
10 Hz to 50 kHz
100 dB or better
Low-Level (RCA): 200 mV to 5 V
Speaker-Level: 400 mV to 10 V
40 amps
4 ohms
9 1 /i6"xli5/i6"xl3"
230 mm x 48 mm x 330 mm
APA4203 Speaker-Level Wire Codes
22 ♦ Specifications
