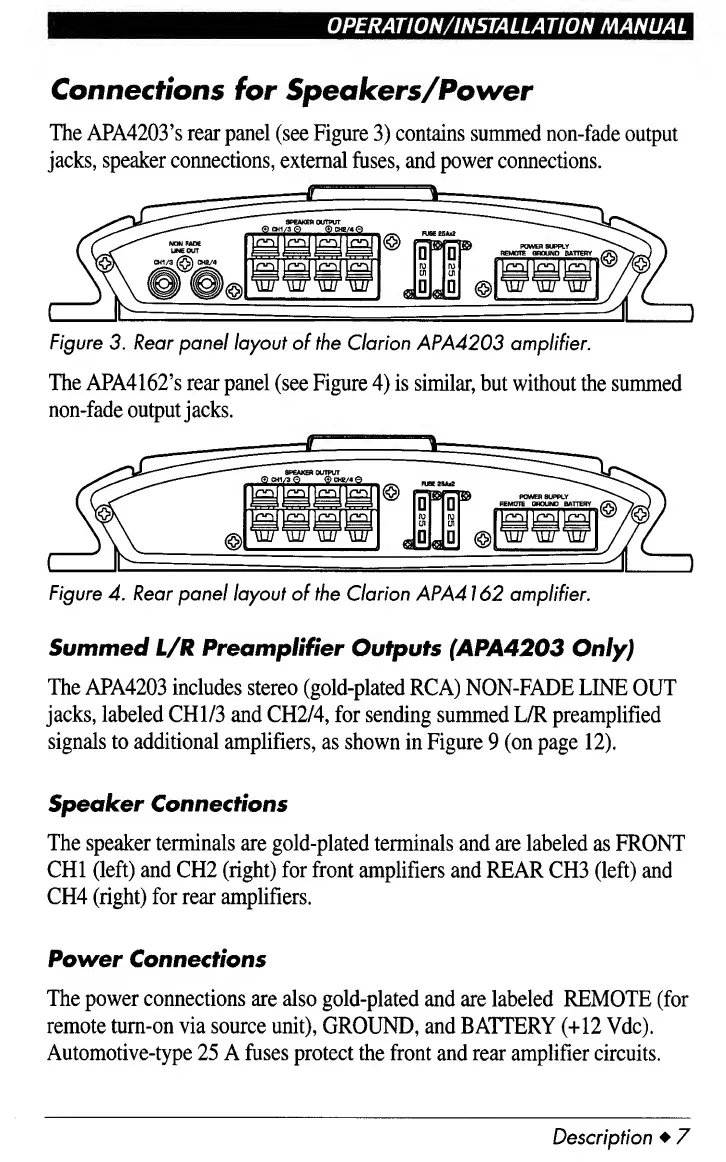

OPERATION/INSTALLATION MANUAL
Connections for Speakers/Power
The APA4203’s rear panel (see Figure 3) contains summed non-fade output
jacks, speaker connections, external fuses, and power connections.
Figure 3. Rear panel layout of the Clarion APA4203 amplifier.
The APA4162’s rear panel (see Figure 4) is similar, but without the summed
non-fade output jacks.
Figure 4. Rear panel layout of the Clarion APA4162 amplifier.
Summed L/R Preamplifier Outputs (APA4203 Only)
The APA4203 includes stereo (gold-plated RCA) NON-FADE LINE OUT
jacks, labeled CHI/3 and CH2/4, for sending summed L/R preamplified
signals to additional amplifiers, as shown in Figure 9 (on page 12).
Speaker Connections
The speaker terminals are gold-plated terminals and are labeled as FRONT
CHI (left) and CH2 (right) for front amplifiers and REAR CH3 (left) and
CH4 (right) for rear amplifiers.
Power Connections
The power connections are also gold-plated and are labeled REMOTE (for
remote turn-on via source unit), GROUND, and BATTERY (+12 Vdc).
Automotive-type 25 A fuses protect the front and rear amplifier circuits.
Description ♦ 7
