Clarion apa4162 User Manual

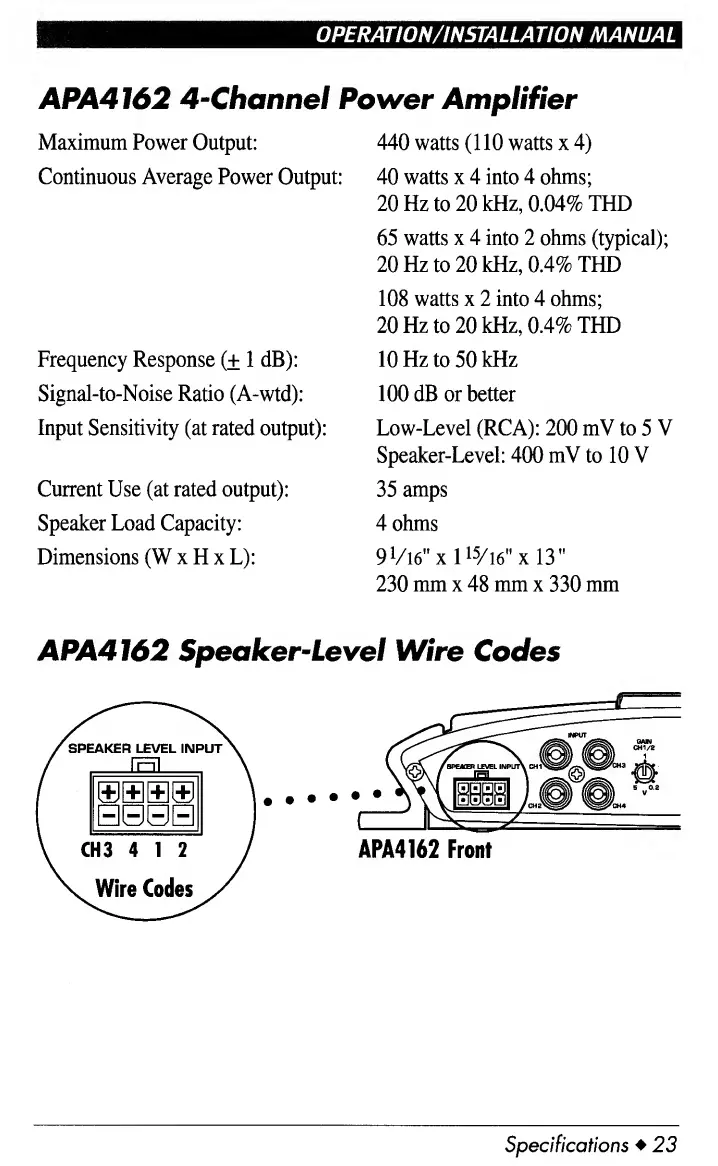

OPERATION/INSTALLATION MANUAL
APA4162 4-Channel Pov/er Amplifier
Maximum Power Output:
Continuous Average Power Output:
Frequency Response (± 1 dB):
Signal-to-Noise Ratio (A-wtd):
Input Sensitivity (at rated output):
Current Use (at rated output):
Speaker Load Capacity:
Dimensions (W x H x L):
440 watts (110 watts x 4)
40 watts x 4 into 4 ohms;
20 Hz to 20 kHz, 0.04% THD
65 watts x 4 into 2 ohms (typical);
20 Hz to 20 kHz, 0.4% THD
108 watts x 2 into 4 ohms;
20 Hz to 20 kHz, 0.4% THD
10 Hz to 50 kHz
100 dB or better
Low-Level (RCA): 200 mV to 5 V
Speaker-Level: 400 mV to 10 V
35 amps
4 ohms
91 /i6"xl 1 5 /i6"xl3"
230 mm x 48 mm x 330 mm
APA4162 Speaker-Level Wire Codes
Specifications ♦ 23

Clarion apa4162 Specifications

General

Brand	Clarion
Model	apa4162
Category	Car Amplifier
Language	English
