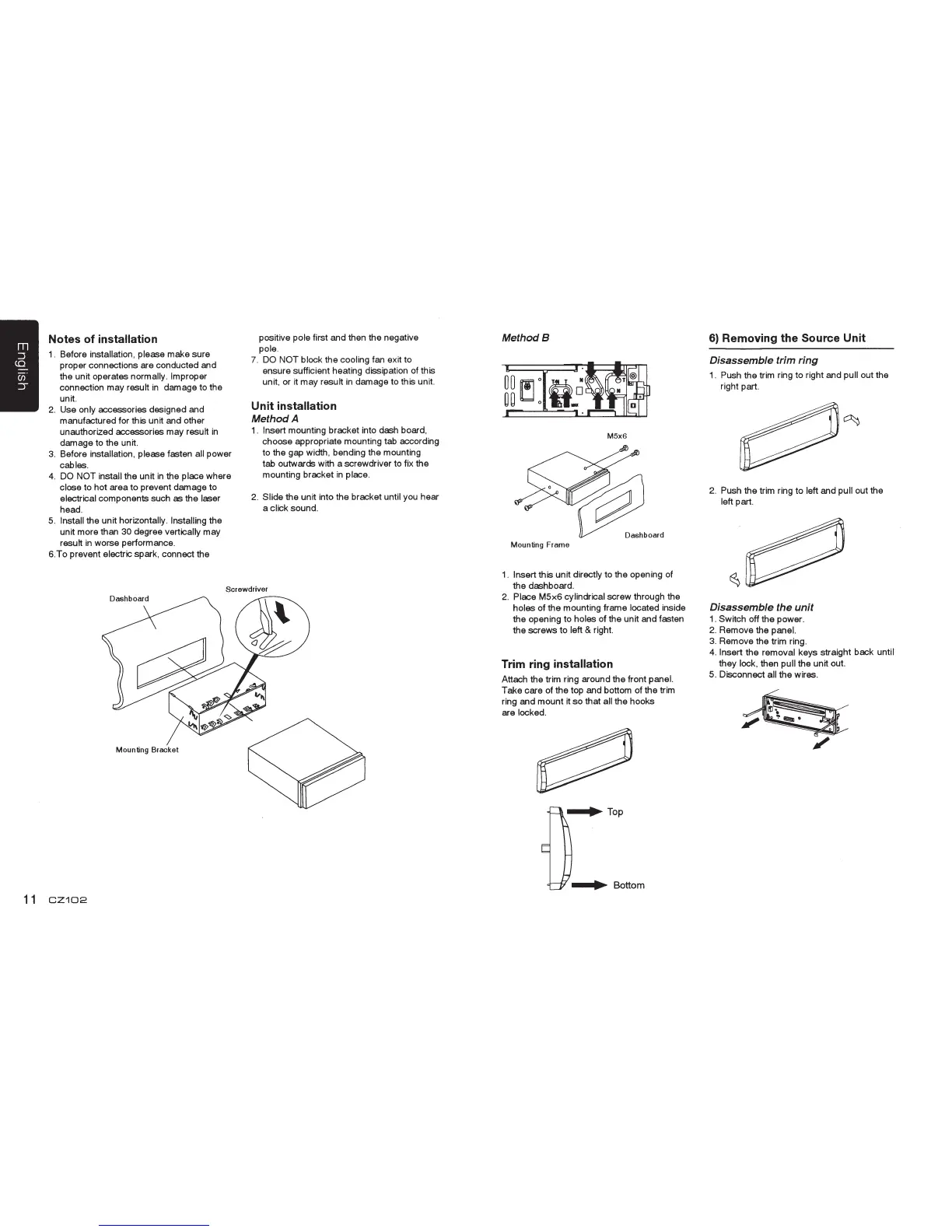

Notes
of
installation
1.
Before installation, please make sure
proper connections are conducted and
the unit operates
normally. Improper
connection may result
in
damage to the
unit.
2.
Use only accessories designed and
manufactured for this unit and other
unauthorized accessories may
result
in
damage to the unit.
3.
Before installation, please fasten all power
cables.
4.
DO NOT install the unit
in
the place where
close to hot area to prevent damage to
electrical components such as the laser
head.
5.
Install the unit horizontally. Installing the
unit more than
30 degree vertically may
result
in
worse performance.
6.To prevent
electric spark, connect the
positive
pole first and then the negative
pole.
7.
DO NOT block the cooling fan exit to
ensure sufficient heating dissipation of this
unit, or it may
result
in
damage to this unit.
Unit
installation
Method
A
1.
Insert mounting bracket into dash board,
choose appropriate mounting tab according
to the gap width, bending the mounting
tab outwards with a screwdriver to fix the
mounting bracket
in
place.
2.
Slide the unit into the bracket until you hear
a
click sound.
Screwdriver
Mounting Bracket
11
CZ102
MethodS
Mounting Frame
M5x6
tPJ
~board
1.
Insert this unit directly to the opening of
the dashboard.
2.
Place
M5x6
cylindrical screw through the
holes of the mounting frame located inside
the opening to
holes of the unit and fasten
the screws to
left
& right.
Trim
ring
installation
Attach the trim ring around the front panel.
Take care of the top and bottom of the trim
ring and mount it
so
that all the hooks
are
locked.
_.
Bottom
6)
Removing
the
Source
Unit
Disassemble
trim
ring
1.
Push the trim ring to right and pull out the
right part.
2.
Push the trim ring to left and pull out the
left part.
Disassemble the
unit
1.
Switch off the power.
2.
Remove the panel.
3.
Remove the trim ring.
4.
Insert the removal keys straight back until
they lock, then pull the unit out.
5.
Disconnect all the wires.
To Next Page
