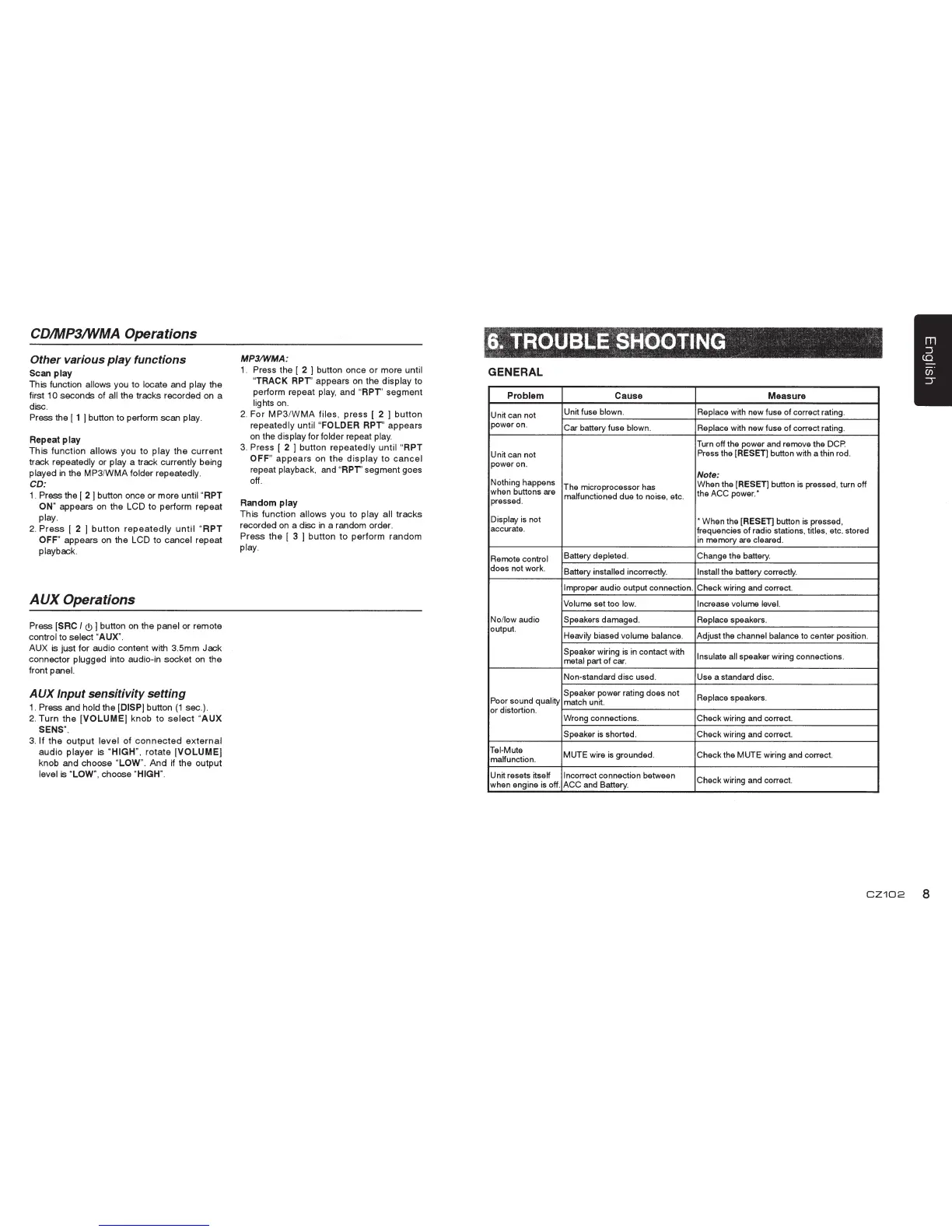

CDIMP3/WMA Operations
Other various play functions
Scan play
This function allows you to locate and play the
first 1 0
seconds
of all the tracks recorded on a
disc.
Press the [
1 ] button
to
perform scan play.
Repeat play
This
function
allows
you
to
play
the
current
track repeatedly or play a track currently being
played
in
the MP3/WMA folderrepeatedly.
CD:
1 . Press the [ 2 ] button once or more until
"APT
ON" appears on the LCD to perform repeat
play.
2.
Press
[ 2 ]
button
repeatedly
until
"APT
OFF"
appears on the LCD
to
cancel
repeat
playback.
AUX
Operations
Press [SAC I (!) ] button on the panel or remote
control to
select
"AUX".
AUX is just for audio content with 3.5mm Jack
connector plugged into audio-in
socket
on the
front panel.
AUX
Input sensitivity setting
1.
Press and hold the
[DISP]
button
(1
sec.).
2.
Turn
the
[VOLUME]
knob
to
select
"AUX
SENS".
3.
If
the
output
level
of
connected
external
audio
player
is "HIGH",
rotate
[VOLUME]
knob
and
choose
"LOW".
And
if
the
output
level is
"LOW",
choose
"HIGH".
MP3/WMA:
1 . Press the [ 2 ] button once
or
more until
"TRACK
RPT' appears on the display to
perform repeat play, and
"RPT'
segment
lights on.
2.
For
MP3/WMA
files,
press
[ 2 )
button
repeatedly until "FOLDER RPT'
appears
on the display
forfolder
repeat play.
3.
Press [ 2 ]
button
repeatedly
until
"RPT
OFF"
appears
on
the
display
to
cancel
repeat playback, and
"RPT'
segment goes
off.
Random play
This
function
allows
you
to
play
all
tracks
recorded
on
a disc
in
a random order.
Press
the
[ 3 ]
button
to
perform
random
play.
GENERAL
Problem
Unit can not
power
on.
Unit
can
not
power
on.
Nothing happens
when buttons
are
pressed.
Display
is
not
accurate.
Remote control
does not work.
No/low audio
output.
Poor sound quality
or distortion.
Tel-Mute
malfunction.
Unit resets itself
when engine
is
off.
Cause
Measure
Unit fuse blown.
Replace with new fuse of correct rating.
Car battery fuse blown.
Replace with new fuse of correct rating.
Turn
off the power
and
remove the
DCP.
Press the [RESET] button with a thin rod.
Note:
The microprocessor has
When the
[RESET] button
is
pressed, turn off
malfunctioned due to noise, etc.
the
ACC
power.*
*When the
[RESET] button
is
pressed,
frequencies of radio stations, titles, etc. stored
in
memory
are
cleared.
Battery depleted.
Change the battery.
Battery installed incorrectly.
Install the battery correctly.
Improper audio output connection.
Check wiring
and
correct.
Volume set too
low.
Increase volume level.
Speakers damaged. Replace speakers.
Heavily biased volume balance. Adjust the channel balance
to
center position.
Speaker wiring
is
in
contact with
Insulate
all
speaker wiring connections.
metal part of
car.
Non-standard disc used. Use a standard disc.
Speaker power rating does not
Replace speakers.
match unit.
Wrong connections.
Check wiring
and
correct.
Speaker
is
shorted. Check wiring
and
correct.
MUTE wire
is
grounded. Check the MUTE wiring
and
correct.
Incorrect connection between
Check wiring
and
correct.
ACC
and
Battery.
CZ102
8
