Clarion CZ109 Service Manual

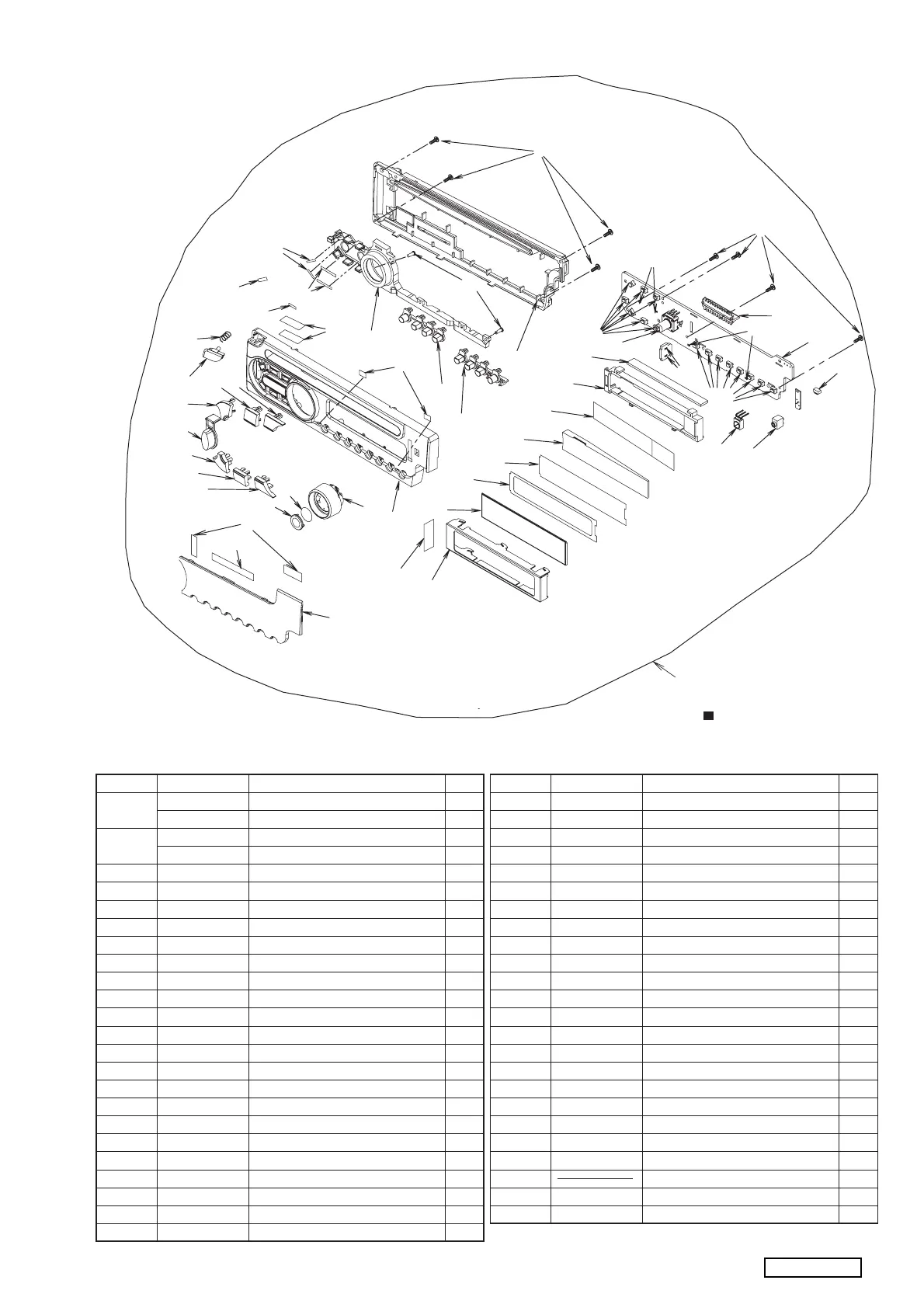

EXPLODED VIEW / PARTS LIST
DCP section
NO. PART NO. DESCRIPTION Q'TY NO. PART NO. DESCRIPTION Q'TY
1 DCP-647-600 DCP ASSY
(
PE-3159B-A
)
1 1-23 347-7549-00 DOUBLE FACE 1
DCP-654-800 DCP ASSY
(
PE-3159K-A
)
1 1-24 347-8658-00 DOUBLE FACE 2
1-1 373-1182-04 DIAL-CVR
(
PE-3159B-A
)
1 1-25 347-8667-00 FILM 2
373-1162-03 DIAL-CVR
(
PE-3159K-A/B
)
1 1-26 347-8661-00 DOUBLE FACE 1
1-2 382-9095-00 BUTTON(ISR) 1 1-27 347-8657-00 FILM 1
1-3 382-9093-00 BUTTON(SRC) 1 1-28 347-8659-00 FILM 1
1-4 382-9097-00 BUTTON(FW) 1 1-29 347-8660-00 FILM 1
1-5 382-9091-00 BUTTON(EJECT) 1 1-30 331-4717-00 LCD COVER 1
1-6 382-9096-00 BUTTON
(
FF) 1 1-31 379-1426-41 INDICATOR(LCD) 1
1-7 382-9098-00 BUTTON(ENT) 1 1-32 347-8653-00 BLACK FILM 1
1-8 382-9092-00 BUTTON
(
BND) 1 1-33 347-8654-00 WHITE FILM 1
1-9 380-5753-00 KNOB 1 1-34 335-8549-00 LCD ILLUMI 1
1-10 335-8547-00 KNOB COVER 1 1-35 347-8652-00 REFLECTOR 1
1-11 370-6395-00 ESCUTCHEON 1 1-36 335-8548-00 LCD HOLDER 1
1-12 382-9090-00 BUTTON
(
4/5/6/S) 1 1-37 345-6277-00 RUBBER PART 1
1-13 382-9089-00 BUTTON(1/2/3/D) 1-38 060-4021-00 IR RECIEVER 1
1-14 382-9094-00 BUTTON
(
RELEASE
)
1 1-39 076-0615-50 PLUG 1
1-15 750-6858-00 SPRING
(
RELEASE
)
1 1-40 001-7114-91 DIODE 2
1-16 335-8550-01 BAR ILLUMI 1 1-41 013-6312-50 TACT SWITCH 15
1-17 335-8551-00 REAR CVR 1 1-42 016-9901-02 VR W/SHAFT 1
1-18 345-6345-00 RUBBER PART 2 1-43 001-7097-91 DIODE 4
1-19 345-6344-00 RUBBER PART 2 1-44 SWITCH PWB 1
1-20 347-8655-00 FILM 2 1-45 076-0502-55 AUX PLUG 1
1-21 716-0872-51 SPECIAL SCREW(M1.7X6) 6 1-46 075-9021-50 JACK 1
1-22 716-0872-62 SPECIAL SCREW(M1.7X8) 4
Note 1)Several different parts of the same
reference number are alternative parts.
One of those parts is used in the set.
Note) SANKOL uses CFD-409Z
: SANKOL application
1
1
-5-
CZ109/CZ109A
2)Some parts depend on each model.
The model name is specified in the description
1-24
1-23
1-1
1-2
1-7
1-6
1-5
1-4
1-3
1-8
1-9
1-10
1-11
1-13
1-12
1-14
1-15
1-16
1-17
1-18
1-19
1-20
1-21
1-21
1-22
1-25
1-26
1-27
1-28
1-29
1-30
1-31
1-32
1-35
1-36
1-34
1-33
1-37
1-38
1-39
1-40
1-41
1-41
1-42
1-43
1-43
1-44
1-45
1-46
