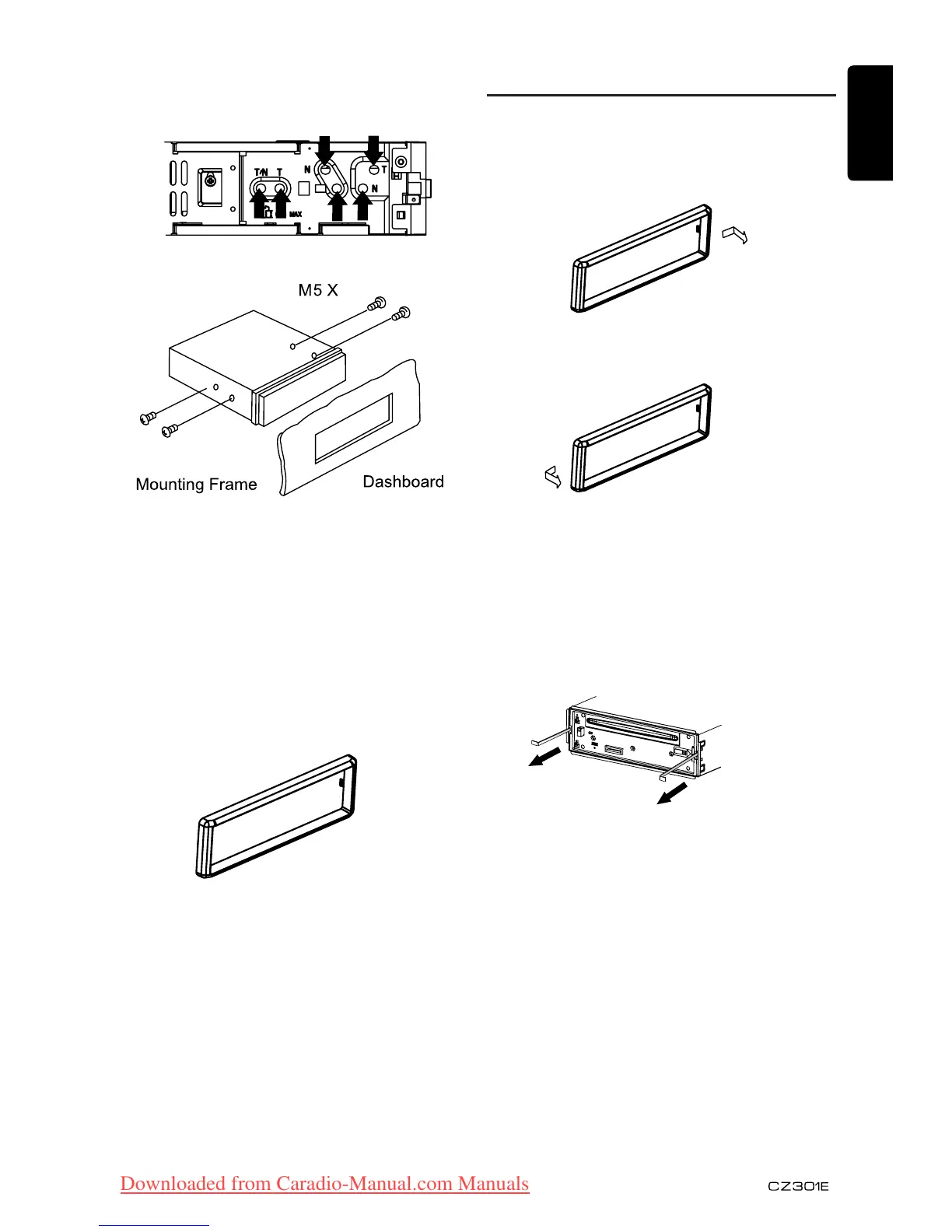

Method B
1. Insert this unit directly to the opening of the
dashboard.
2. Place M5×6 cylindrical screw through the
holes of the mounting frame located inside
the opening to holes of the unit and fasten
the screws to left & right.
Trim ring installation
Attach the trim ring around the front panel.
Disassemble trim ring
1. Push the trim ring to right and pull out the
right part.
2. Push the trim ring to left and pull out the
left part.
Disassemble the unit
1. Switch off the power.
2. Remove the panel.
3. Remove the trim ring.
4. Insert the removal keys straight back until
they lock, then pull the unit out.
5. Disconnect all the wires.
6) Removing the Source Unit
6
Downloaded from Caradio-Manual.com Manuals

Clarion CZ301E Specifications

General

Audio system	MOS-FET
MP3 playback	Yes
Audio formats supported	MP3, WMA
Supported radio bands	AM, FM
Product color	Black
Audio output channels	4.0 channels
Maximum power per channel	45 W
Illumination color	Blue
I/O ports	1x Aux 1x USB
