Clarion DB265MP

To 1/4(page 17)
To 1/4(page 17)
To 1/4(page 17)
To 3/4(page 19)
To PICK UP-ASSY
To J1 of SENSOR PWB(B3)
CD MECHANISM(page 14)
connect with 816-4010-50 FLAT WIRE
To 3/4(page 19)
X4

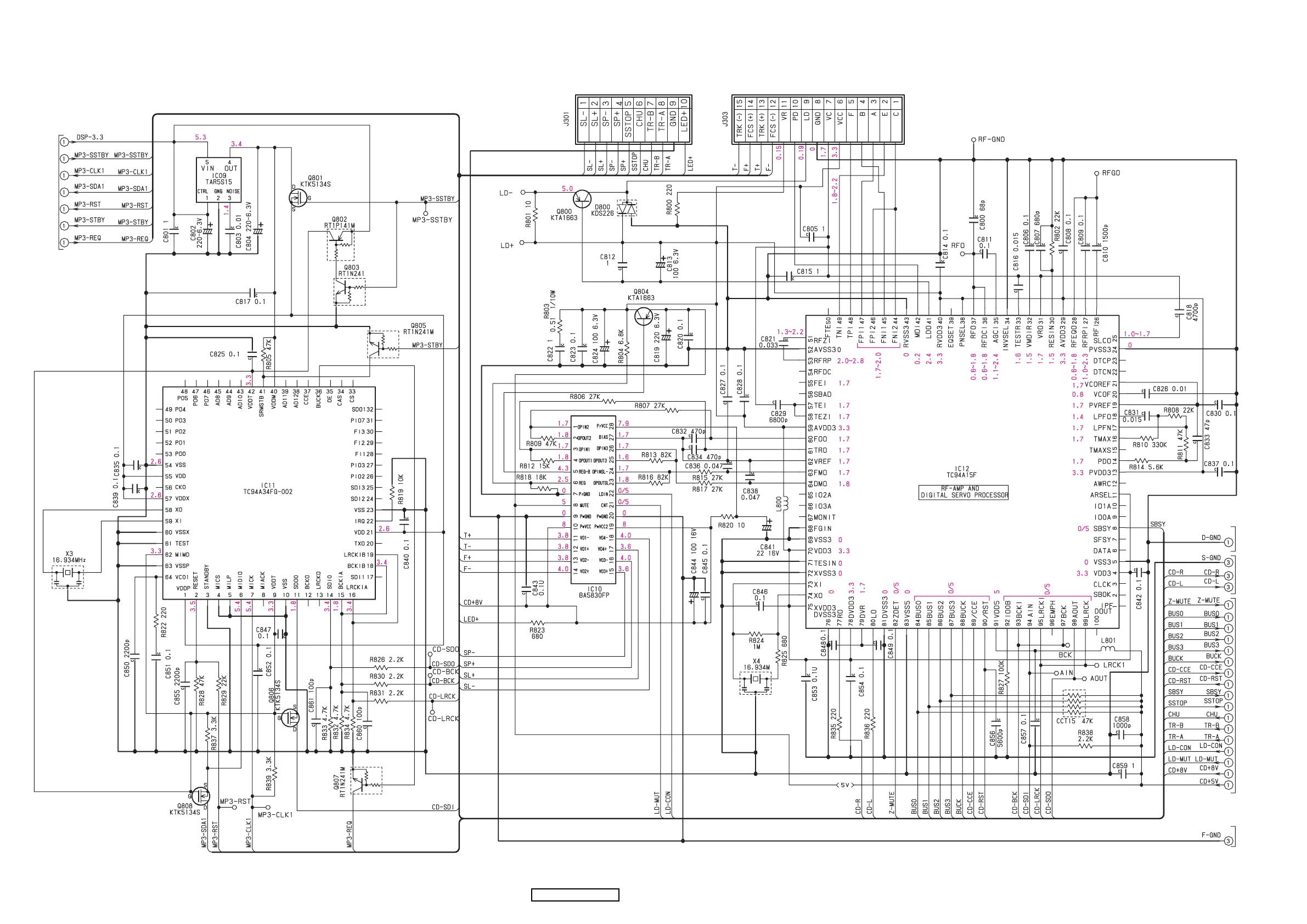

CIRCUIT DIAGRAM 6/6
Main PWB(B1) section 4/4
-20-
DB265MP/DB266MP
